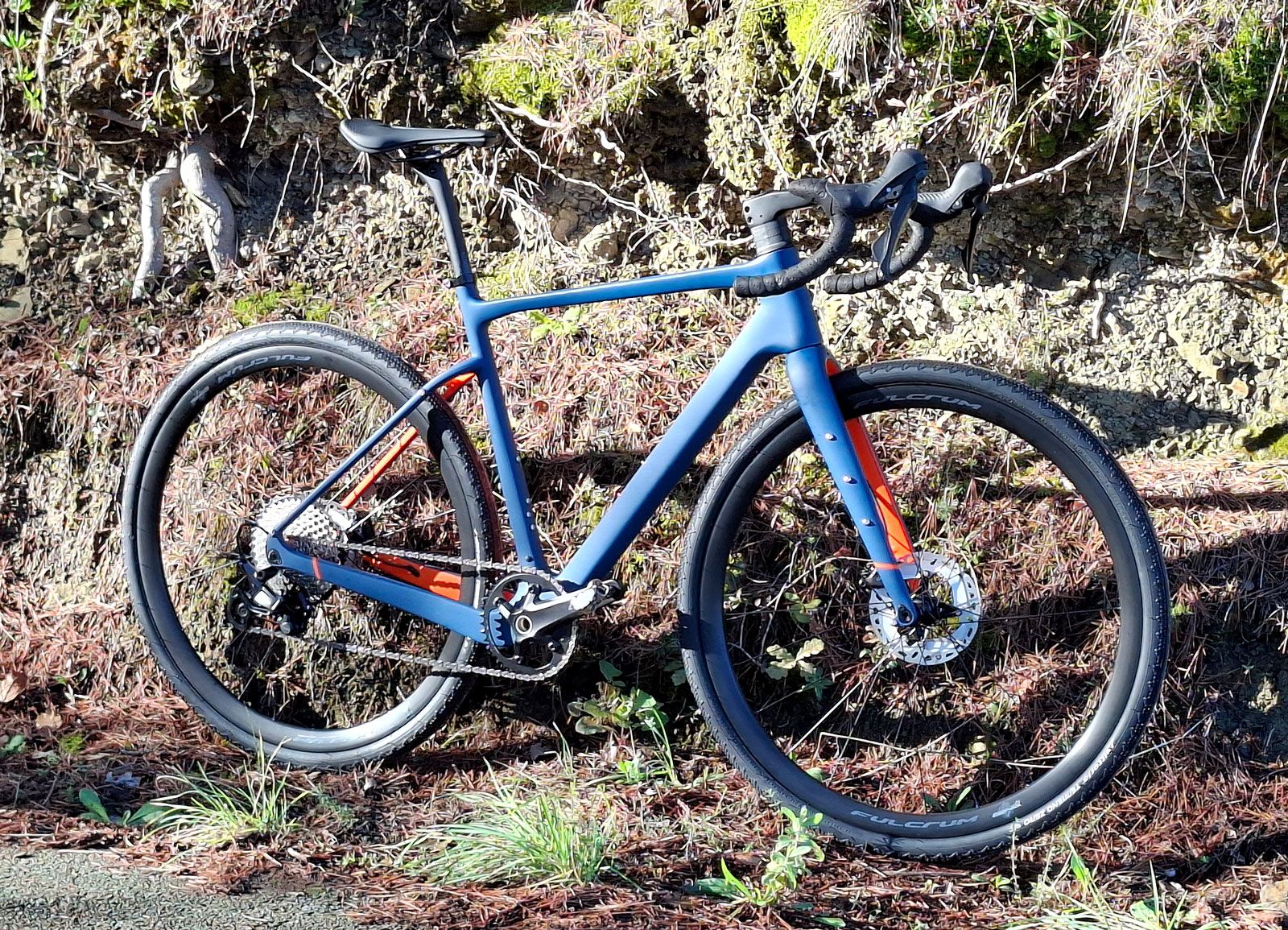

ROCCHETTA Gravel

Gravel bicycle has an elegant appearance with the matt finish color design. Lots of threaded bosses for mudguards, bags and rack mount. We suggest groupset GRX Di2, but the bicycle can be assembled custom.

frame design

• T1000 Toray
• gravel and road
• carbon weave UD
• bottom bracket pressfit BB386 46*86.5mm
• headset bearings 52 mm - 52 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 1x12, 1x13 / 2x12
• compatible with mechanical, Di2, AXS
• seatpost diameter 27.2mm
• seatpost collar
• front derailleur mount removable for 1x12
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1260g (size 54cm), fork 470g
• frame size S-49 / M-52 / L-54 / Xl-56 / XXL-58cm
• max tire size 700*45C / 27.5*2.1"

threaded bosses

• bag top tube
• bag lower side down tube
• 2 bottel cages / down tube / seat tube
• extra bottle cage lower side down tube
• 3 threadings both sides fork
• rear stays for mud guards and rack compatible

warranty

2 years frame / fork
components manufacturer's warranty terms and conditions

color design

• azurro finish matte

groupset

• Rocchetta grx 825
  assembled with Shimano GRX 825 / 2x12s / Di2
• Rocchetta grx 827
  assembled with Shimano GRX 827 / 1x12s / Di2
• Rochetta Rival
  assembled with Sram Rival AXS gravel 2x12

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Vittoira Terreno Zero 38, 40 or 45 mm
• inner tube Pirelli

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 0mm or 12 mm
• optional cbTec carbon 12 mm

cockpit

• cbTec one piece stem / handlebar

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

seat tube	490	520	540	560	580
head tube	120	140	150	170	190
stack	537	558	569	590	609
reach	371	375	376	385	394
top tube	520	535	550	565	580

Vittoria Terreno Zero for road and off road

seatpost 27.2 mm and seatpost collar, just make things easy
