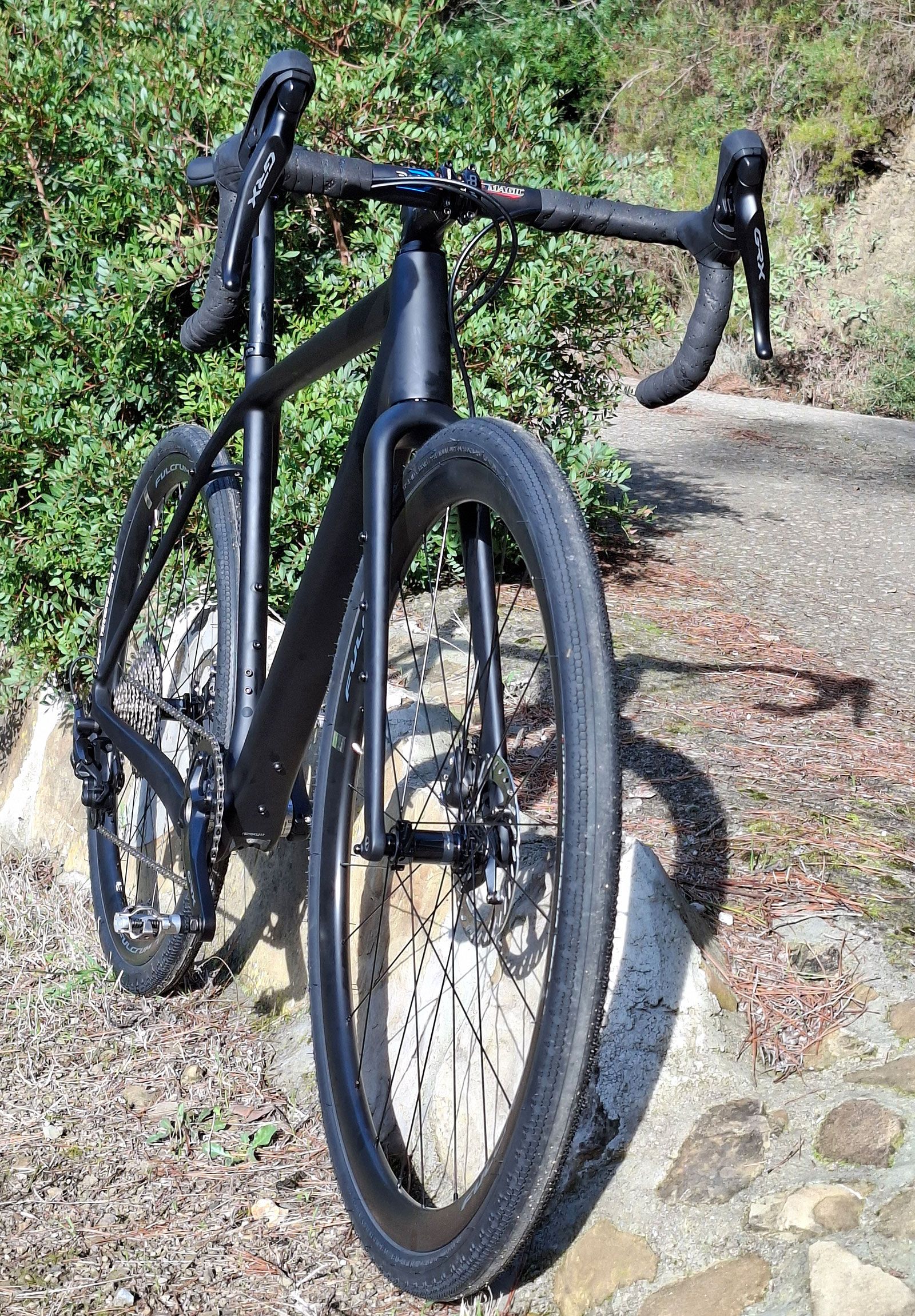

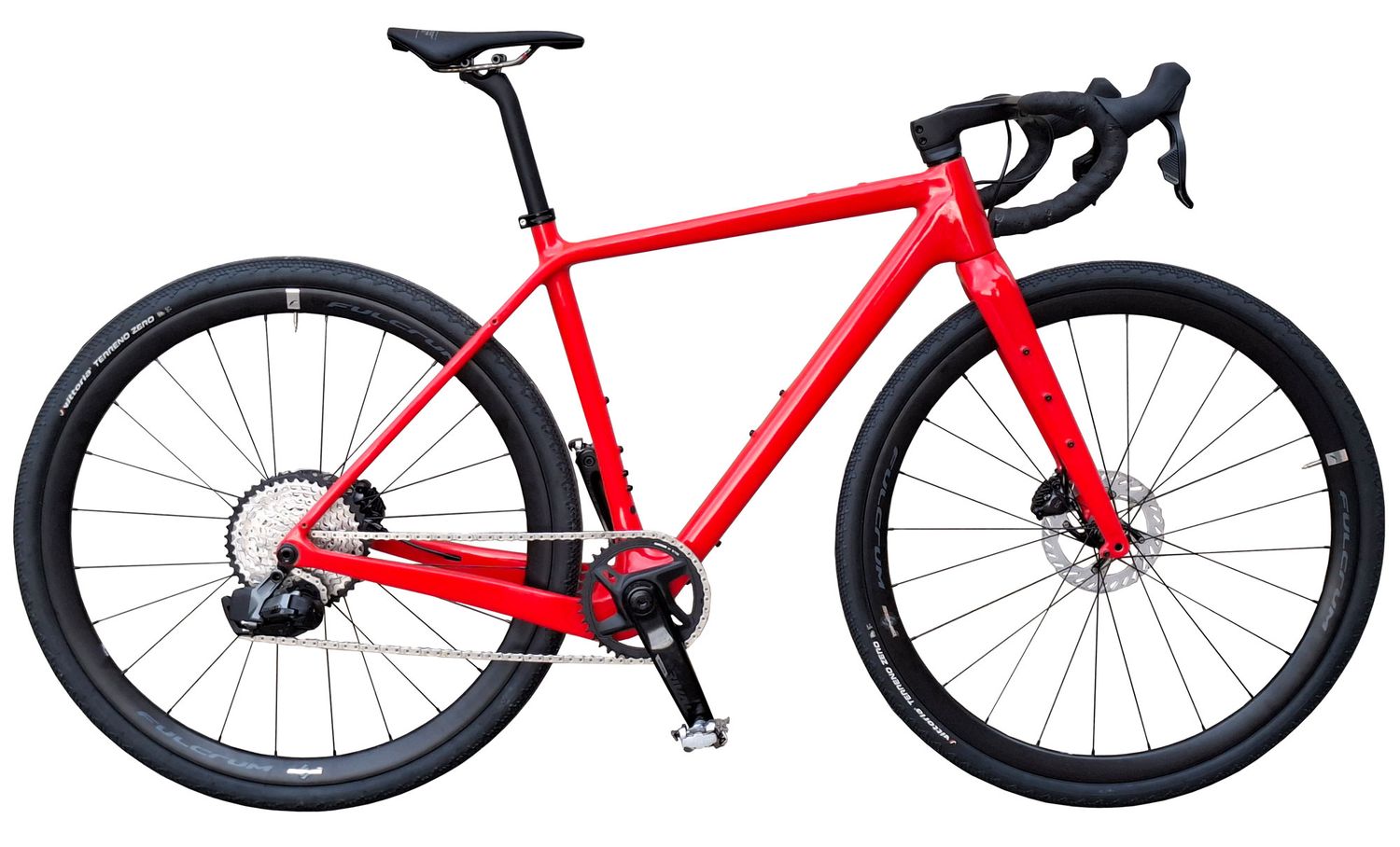

BACKROAD Gravel

Gravel bicycle BACKROAD assembled with Shimano 105 Di2.

Every day bicycle, exploring nature, or with assembled mudguards and rack riding to work.

Semi integrated brake lines and gear cable (for mechanical groupset) for easy maintenance. Gear cable housing can go all through the frame or assembled with real cable stopper in the frame for easy derailleur adjustment. You can mount any standard seatpost 27.2 mm, any setback. Threaded BSA bottom bracket. All easy, just riding.

frame design

• carbon T800 Toray
• gravel and road
• carbon weave UD
• bottom bracket T47 86.5mm
• headset bearings 42 mm - 52 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 1x12, 1x13 / 2x12
• compatible with mechanical, Di2, AXS
• seatpost diameter 27.2mm
• seatpost collar
• front derailleur mount removable for 1x12
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1240g (size 54cm), fork 540g
• max tire size 700*45C / 27.5*2.1"

threaded bosses

• bag top tube
• bag lower side down tube
• 2 bottel cages / down tube / seat tube
• extra bottle cage lower side down tube
• 3 threadings both sides fork
• rear stays for mud guards and rack compatible

warranty

2 years frame / fork
components manufacturer's warranty terms and conditions

groupset

Shimano GRX world's most reliable and service friendly gravel groupset with 1x12s mechanical, 1 x 12s wireless or 2 x 12s semi wireless combination for a reasonable price. Optional with Sram XPLR 1 x 13s wireless or Campagnolo Ekar 1x13s mechanical.

• Backroad grx 825
  assembled with Shimano GRX 825 / 2x12s / Di2
• Backroad grx 827
  assembled with Shimano GRX 827 / 1x12s / Di2
• Backroad grx 822
  assembled with Shimano GRX 822 / 1x12s / mechanical
• Backroad XPLR
  assembled with Sram Rival XPLR 1x13s / wireless

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Vittoira Terreno Zero 38, 40 or 45 mm
• inner tube Pirelli

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 0mm or 12 mm
• optional cbTec carbon 12 mm

cockpit

stem Deda 02
handlebar Deda Superzero

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

	xs	s	m	l	xl	xxl
seat tube	490	520	540	560	580	610
head tube	120	140	150	170	190	210
stack	537	557	568	590	609	628
reach	371	375	376	385	394	402
top tube	520	535	550	565	580	595

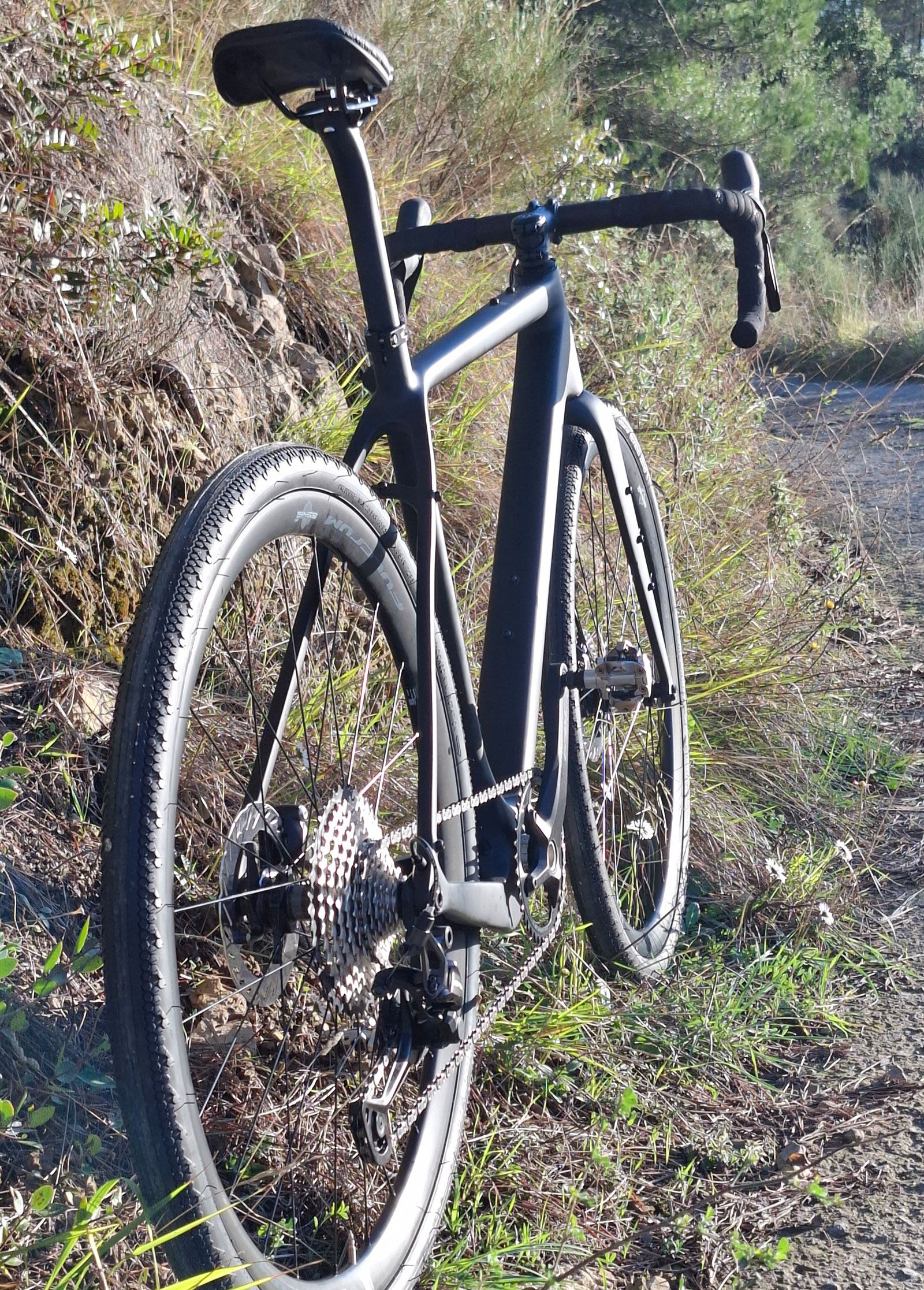

Shimano GRX 822 mechanical or GRX 827 wireless 1 x 12 / 825 semi wireless 2 x 12

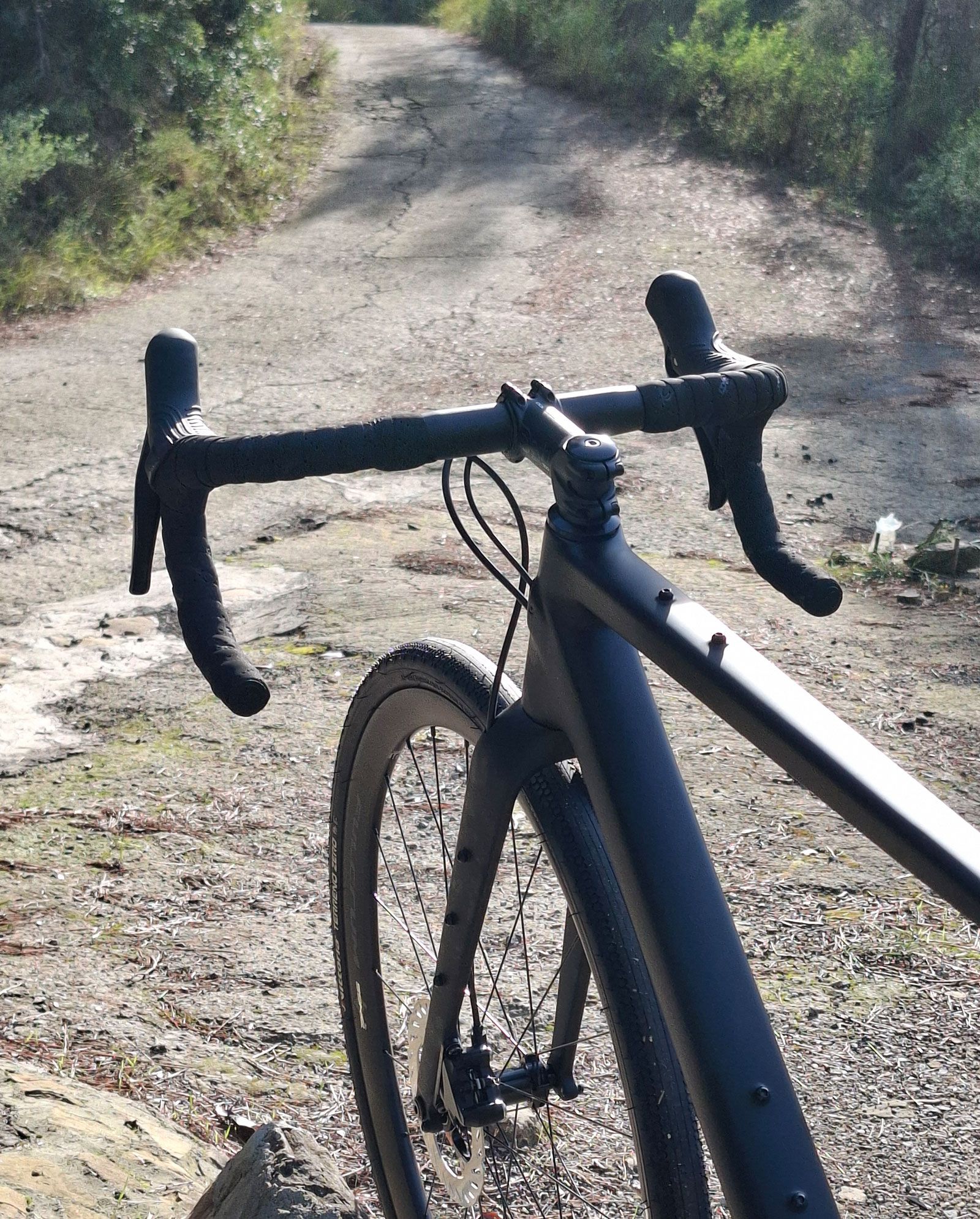

brake lines external for easy cockpit maintenance, cable layout has a clean look

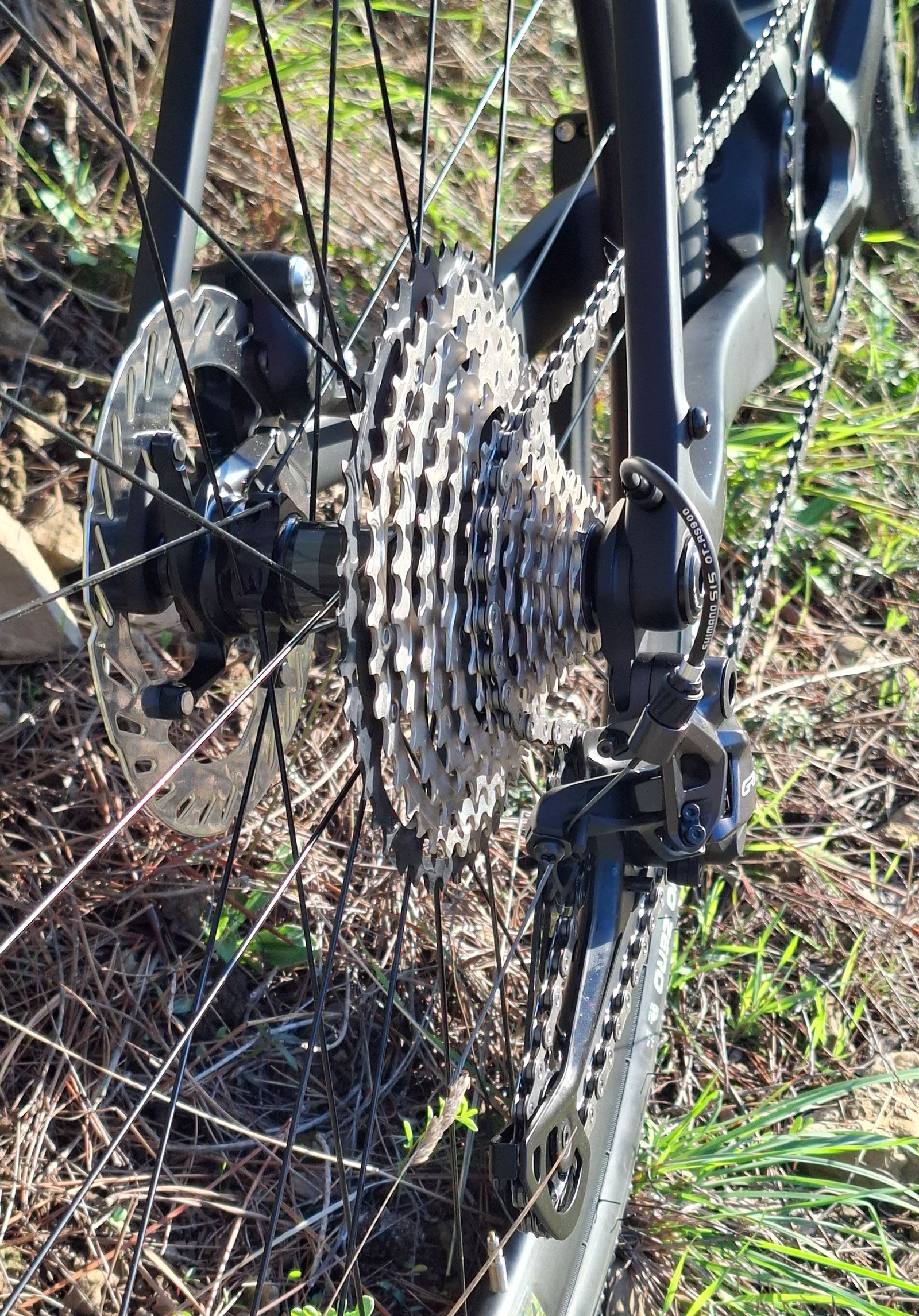

stiff shifter cable housing with cable stopper inside frame, external end Shimano flexible 12 s cable housing end

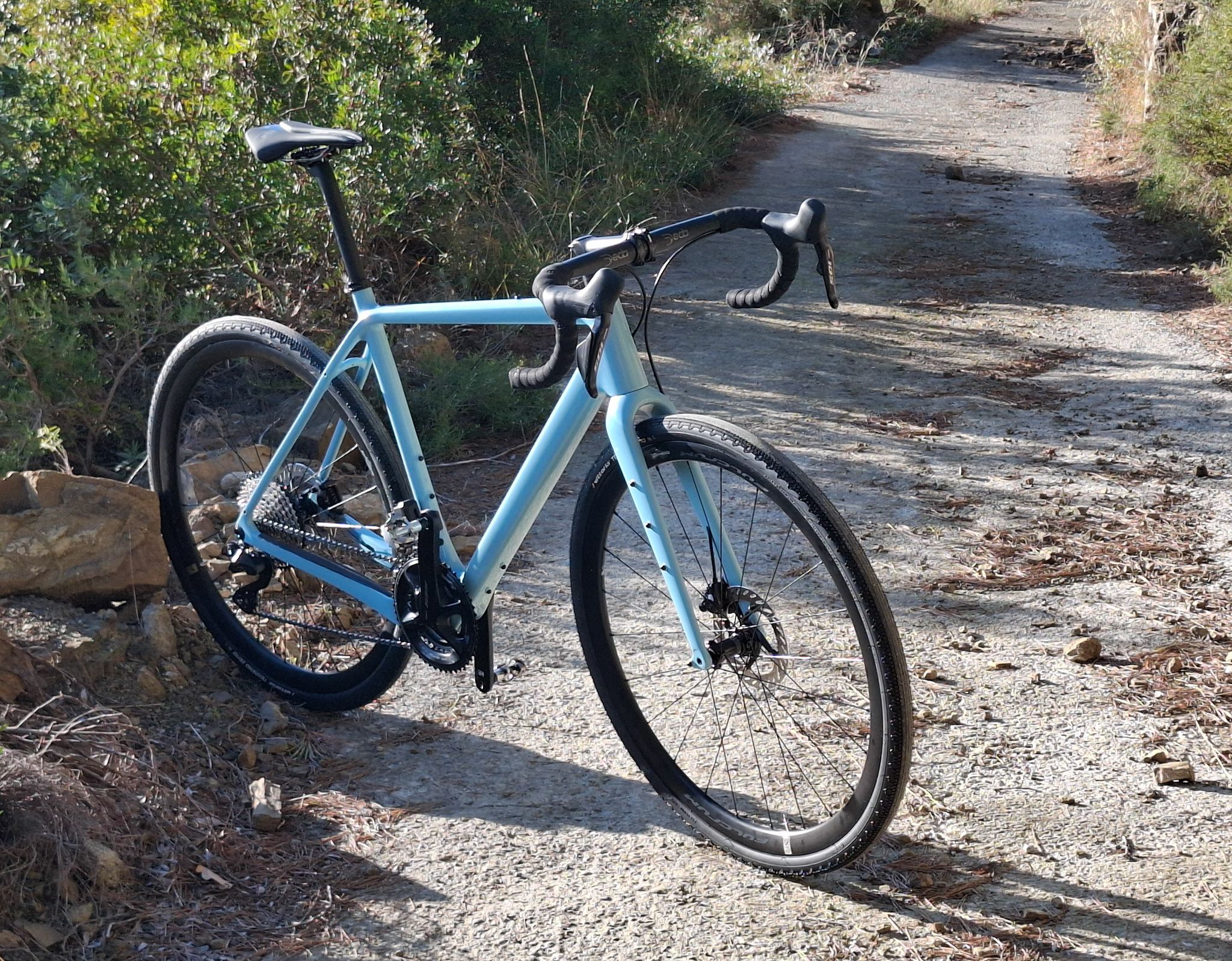

Gravel Rad BACKROAD, ausgestattet mit mechanischer Shimano GRX 822/610 Montagegruppe.

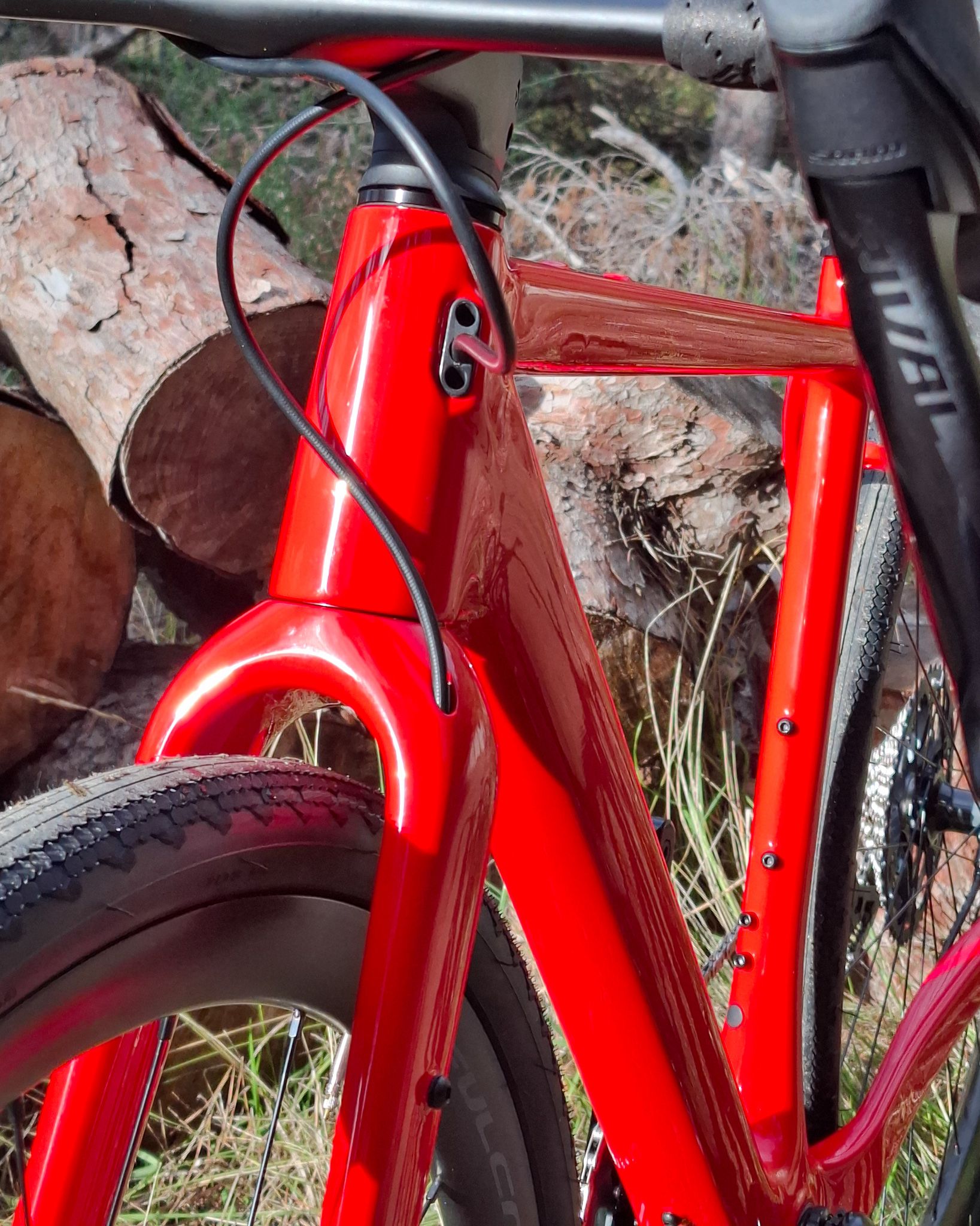

Service friendly: Cockpit external brake cable, still looks very clean. Frame and fork integrated brake cable. Mechanical groupset uses same cable entrance for rear gear cable. Cockpit gear cable external, works much better with mechanical group setup.
