Gravel Bike with Soul. Hand crafted in Italy.

More than just a ride, it's an experience. The Casati gravel bike, is a testament to the beauty of hand built steel frames. Feel the connection to the road, the trail. And the Italian heritage woven into every fillet brazed joint. Experience the perfect blend of speed and comfort, with a road bike Q-factor and ample tire clearance. Customize your ride with bespoke geometry, paint and components, creating a machine as unique as your adventures. Discover the joy of riding a Casati.

frame design

• tubeset Columbus Spirit / optional XCr Inox
• fork Columbus Gravel
• fillet brazed
• cataphoresis anti corrosion treatment
• bottom bracket T47 68mm
• headset bearings 52 mm - 52 mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line / optional external
• frame internal cable routing disc brake line
• compatible with chain rings 2 x .. / 1 x ...
• compatible with Di2, AXS / optional mechanical
• seatpost diameter 27.2 mm
• integrated Casati seatpost lock
• front derailleur braze on for chainring 2x / optional without
• UDH rear derailleur hanger
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1780g (size 54cm), fork 480g
• frame size custom
• max tire size 45 mm

warranty

2 years Casati frame/fork
components manufacturer's warranty terms and conditions

color design

• custom

see gallery for color / design ideas

groupset

• Gravel GRX 822
  assembled with Shimano GRX 822/610 mechanical 1x12
• Gravel GRX 827
  assembled with Shimano GRX 827 Di2 1x12s
• Gravel GRX 825
  assembled with Shimano GRX 825 Di2 2x12s
• Gravel Ekar
  assembled with Campagnolo Ekar 1x13s mechanical
• Gravel XPLR
  assembled with Sram Rival XPLR 1x13s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli Cinturato
• optional Schwalbe G One
• inner tube Pirelli Roadtube

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 setback 0 mm / 12 mm

handlebar

• cbTec one piece stem / handlebar
• optional Deda Superbox / Deda Superzero Aluminum

headset bearings

• steel Deda DCR
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

sizes / geometry

exclusively made to measure

see how to plan your custom geometry

we guide you through the custom made process

lead time 8 weeks

photos do not always show actual details/components

threaded bosses for mud guards, Frankfort, Germany

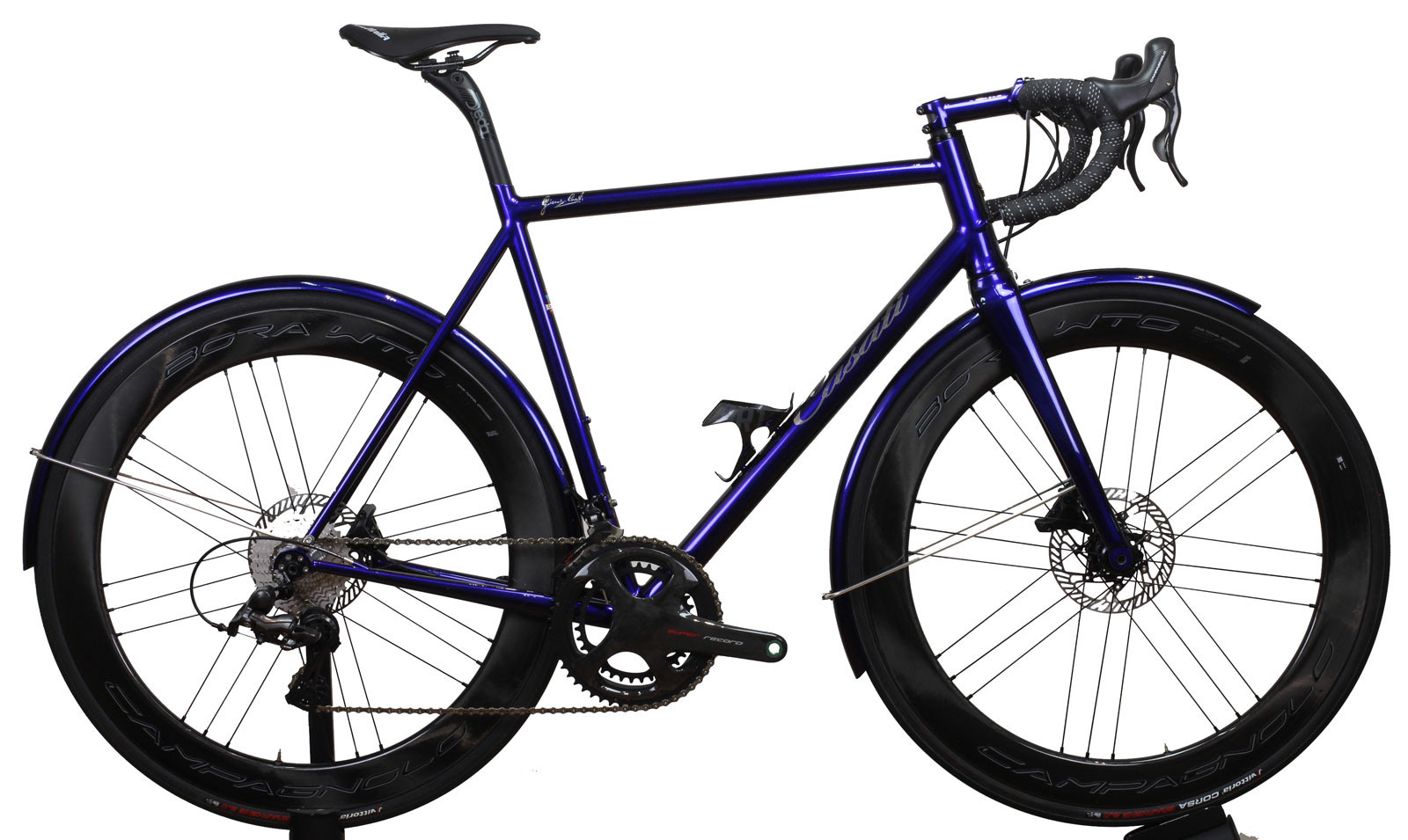

Casati Espresso Gravel, Commuter / London, UK

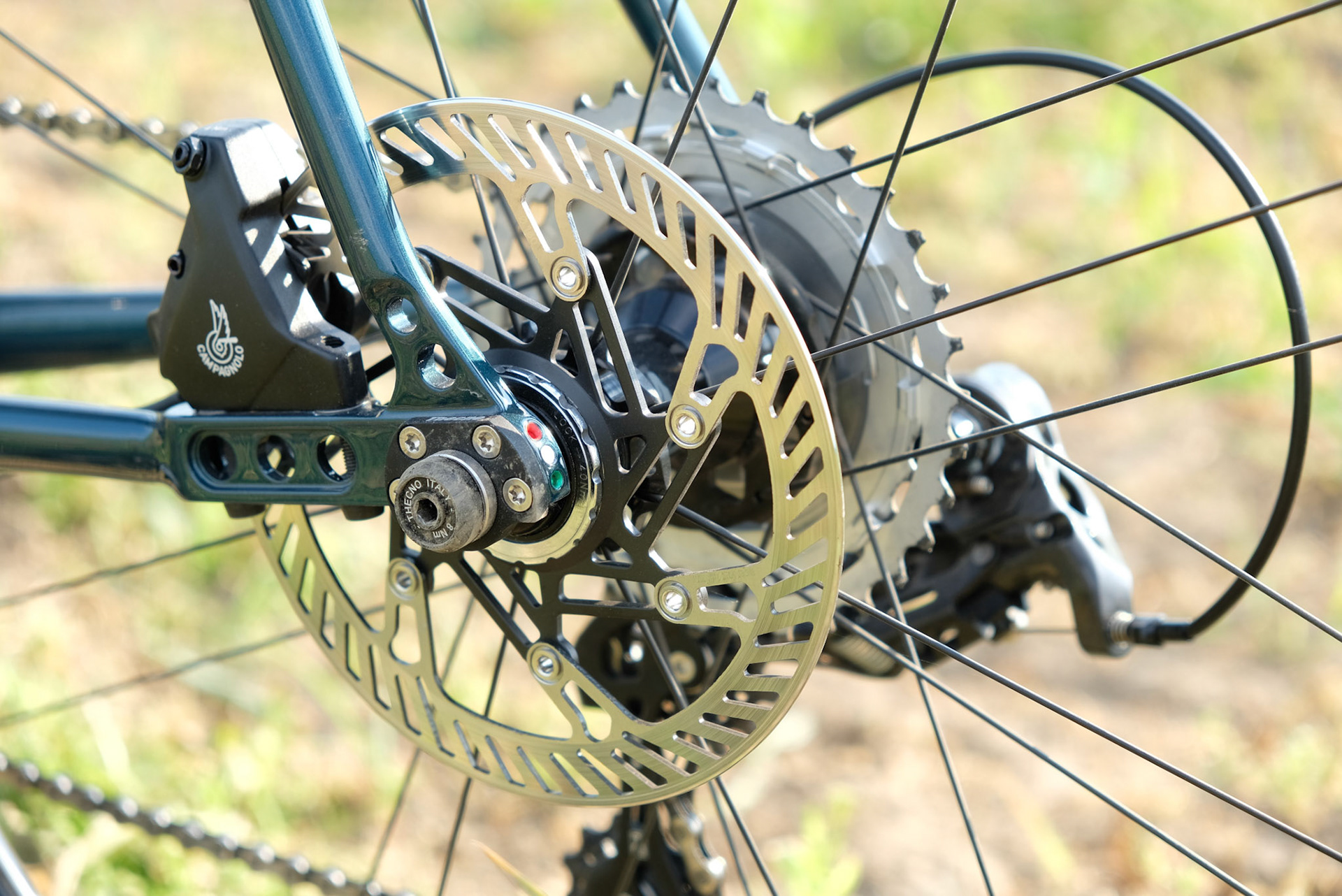

Casati Espresso Gravel, details fillet brazed steel frame, dropout / Saxony, German
