rear and front wheel / disc brake rotors

you need a bottom bracket wrench 16 notch or a disc brake multi tool

on the hubs is a transport safety spacer

open the lock ring

take the lock ring, the washer and the paper spacer off

put the disc brake rotor on the hub

one side has a integrated distance spacer (see red arrow), that goes to spoke side

160 mm rotors is for front wheel

140 mm rotor is for rear wheel

the outer side has the toothed base for the lock ring

rotor on the hub

washer on toothed base rotor

lockring on washer

tighten firmly

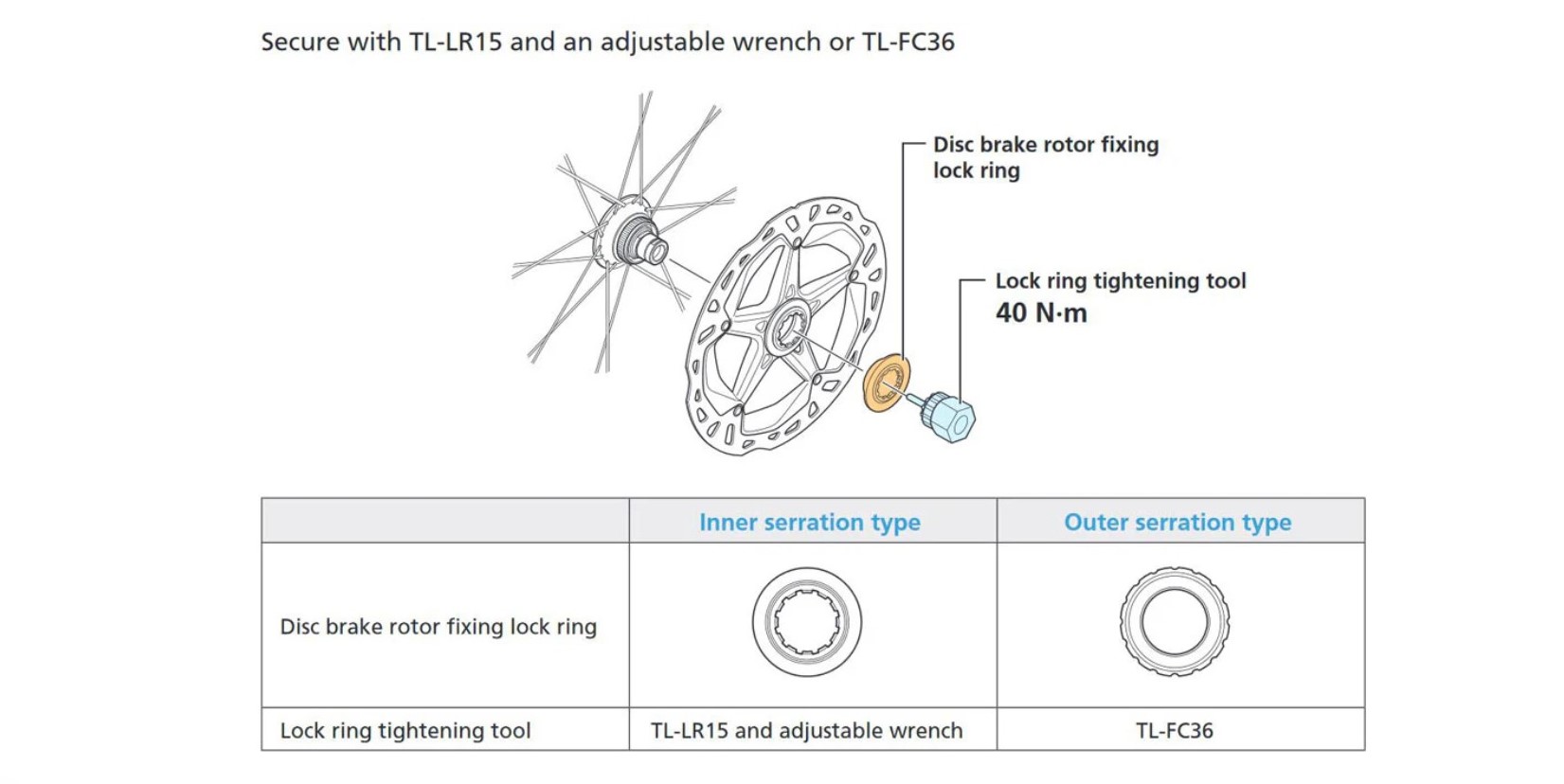

internal vs external serration of disc rotors

Locking rings with both internal and external serrations are available. These lock rings have teeth on both the inside and outside.
