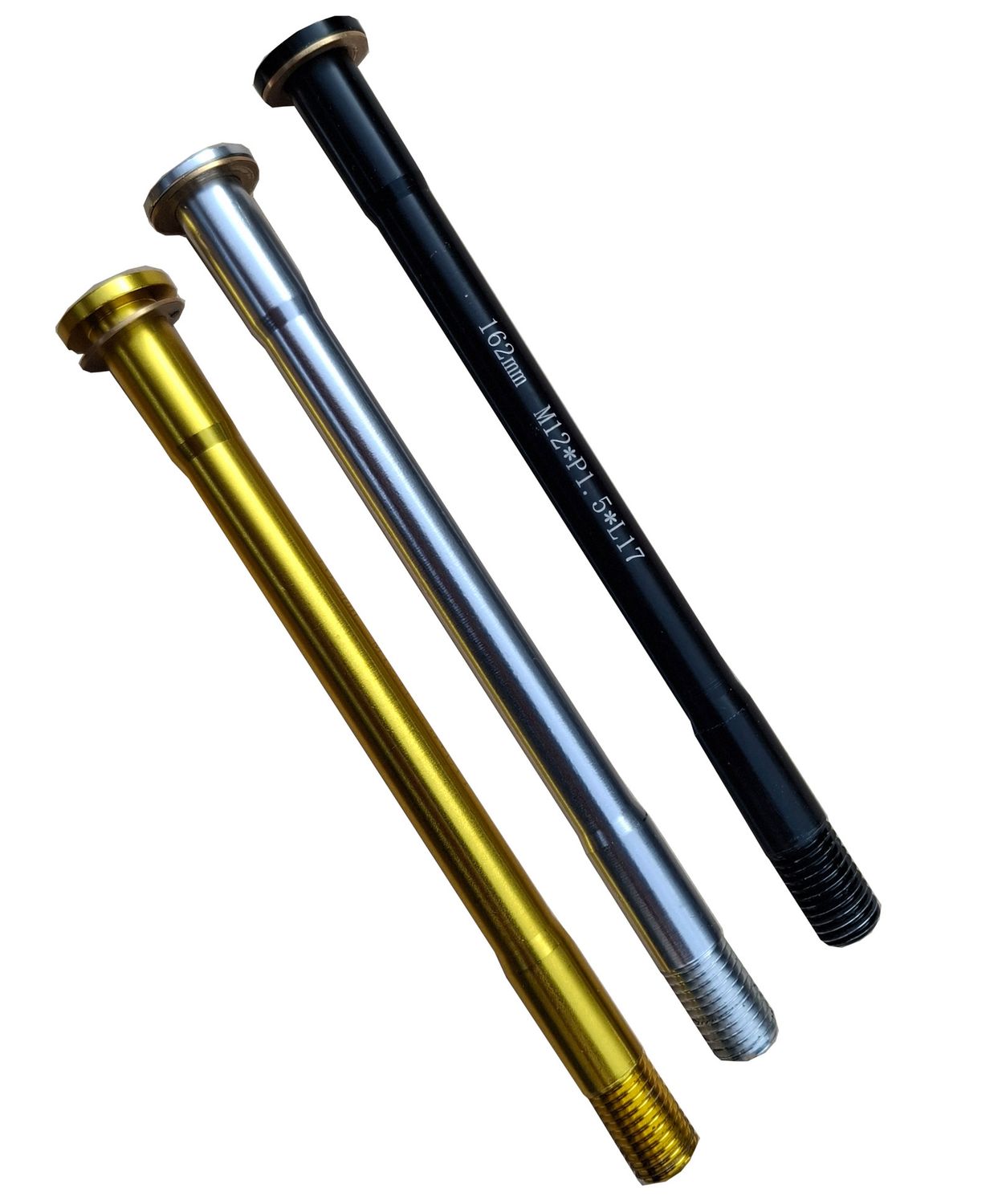

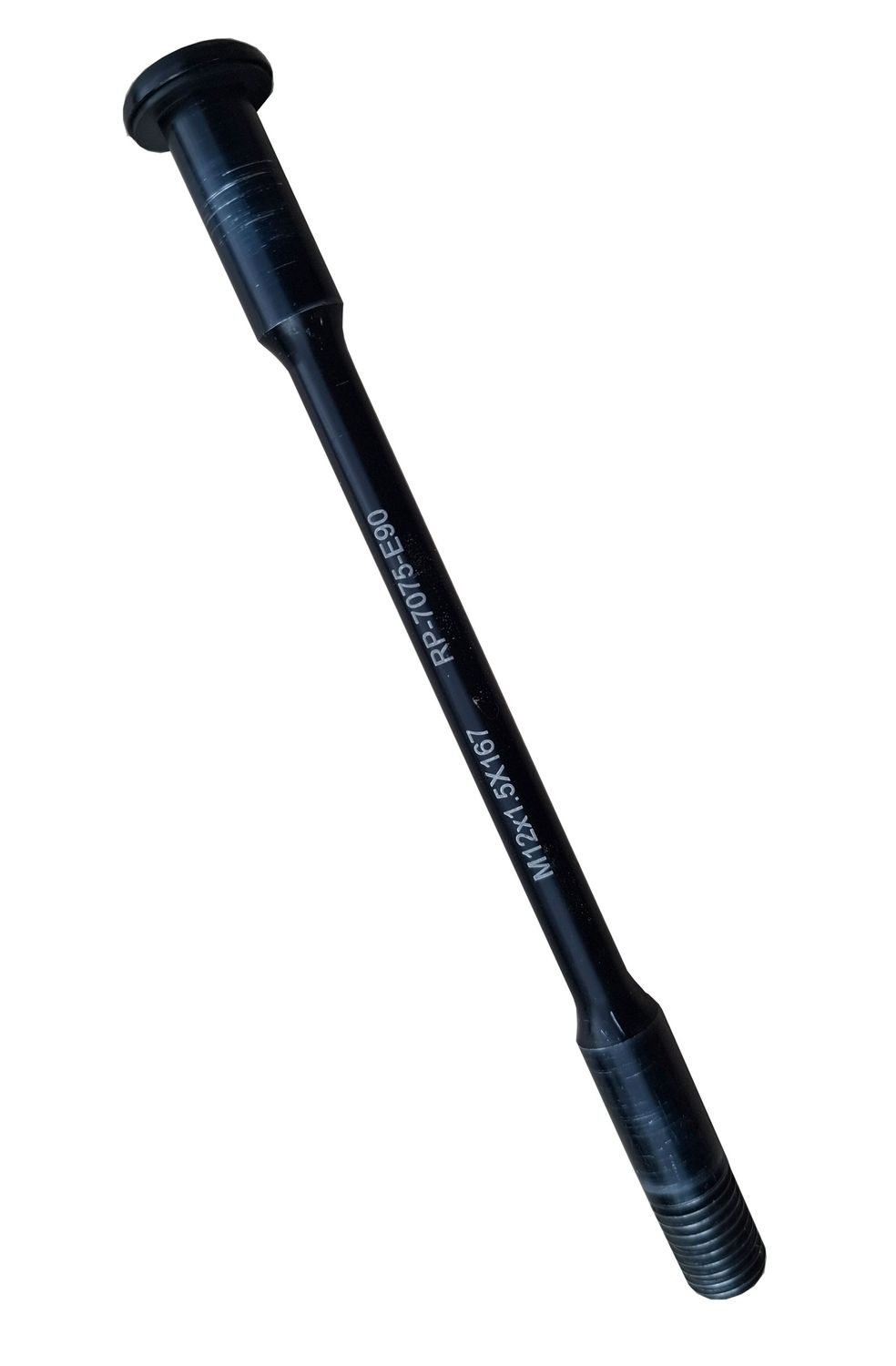

Find out what thru axle you need is easy. See what the numbers say.

the numbers

axle overall shaft length: for example front 121mm, 126mm / rear 162 mm, 167mm,

thread pitch: for example M12 * P1.0 / P1.5 / P1.75

thread length: for example 16.5 mm / 17.0 mm

axle diameter: for example 12 mm

torque 9-13 NM

Universal X

frame Off Grid, Tappone

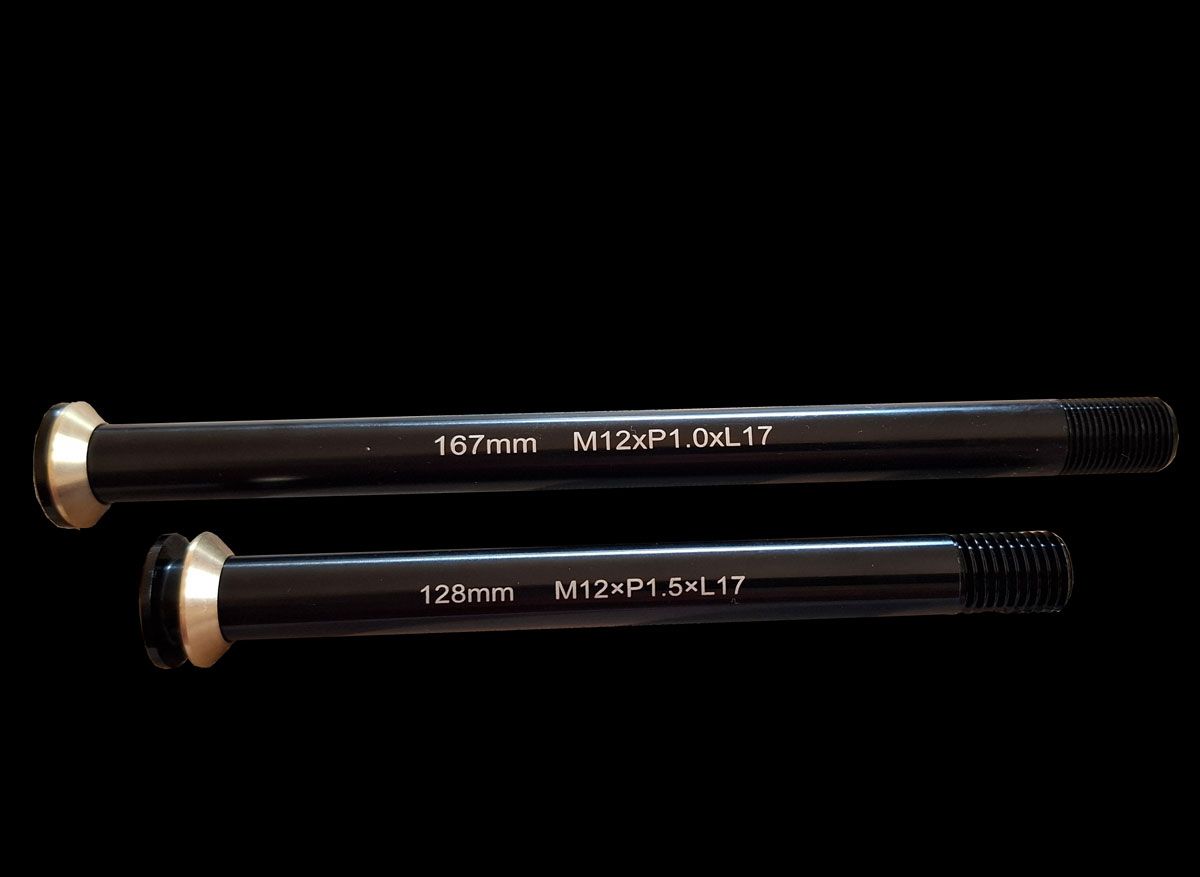

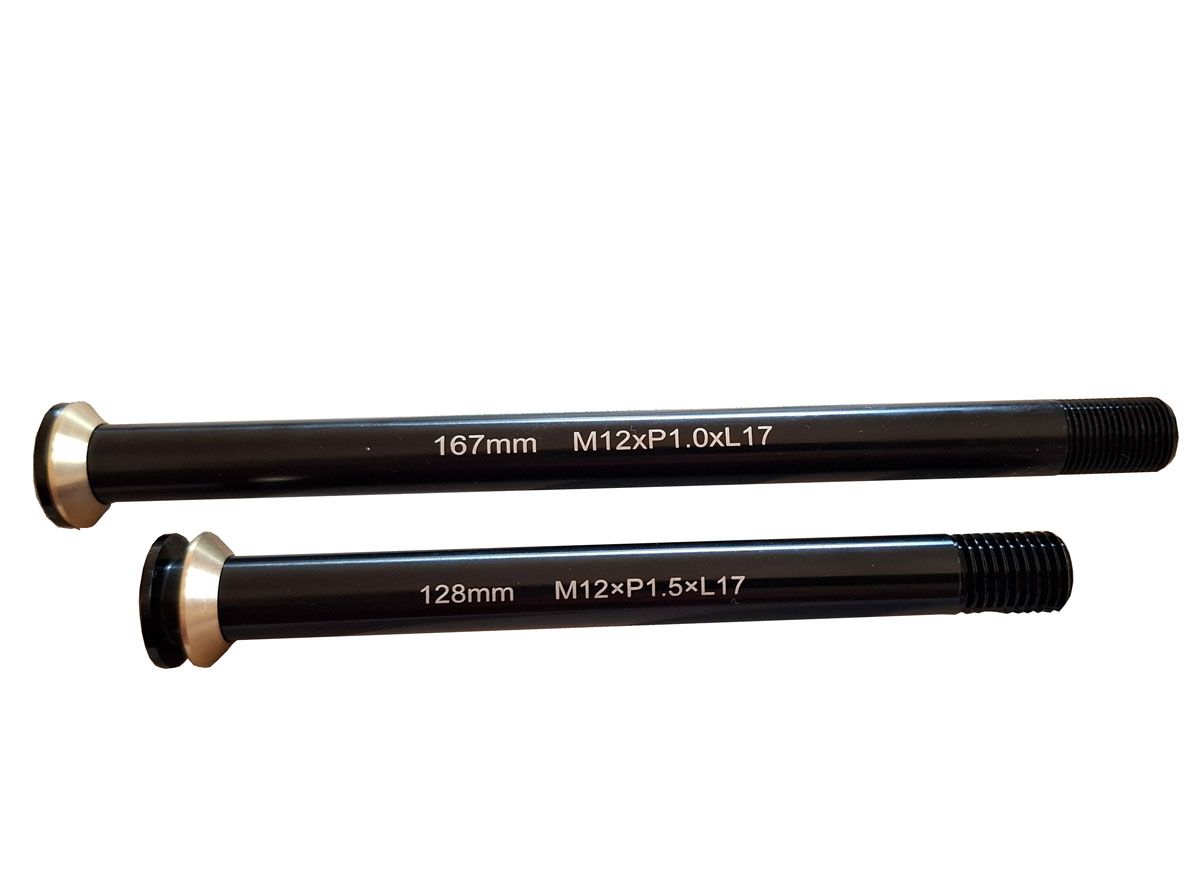

rear: 167 mm / M12 x P 1.0 / L17
front: 128 mm / M12 x P1.5 / L17

Universal X comes with conical brass washer

Universal A

frame Explorer

rear: 164 mm / M12 x P 1.5
front: 130 mm / M12 x P1.5

carbon B-Tech

frame Backroad

rear: 172 mm / M12 x P 1.0 / L17
front: 126 mm / M12 x P1.5 / L17

carbon B-Tech

frame Scenic, Camino Real

rear: 172 mm / M12 x P 1.0 / L17
front: 121 mm / M12 x P1.5 / L17

Thecno

frame Espresso, Aliena, Progetto

rear: 167 mm / M12 x P 1.5

front: 120 mm / M12 x P1.5
torque 8 NM

Columbus Futura

frame Espresso, Aliena and Progetto

119 mm / M12 / P 1.5
Casati ESPRESSO Spirit, XCr, ALiena and Progetto may be assembled with different forks and thru axle

ATHENA

rear: 162 mm / M12 x P 1.5 / L17

fork: 123 mm / M12 x P1.5 / L14

thread pitch P

Metric System (ISO): defined in millimeters (mm) between threads
(e.g., M6x1.5 means 1.5mm between threads)
