Casati AERO carbon frame.
carbon weave: UD
brake system: hydraulic disc brakes
brake cable routing: internal, handlebar, stem, headset, frame, fork
disc rotor size: 140mm or 160mm
bottom bracket : T47 86mm
headset: 1-1/2 to 1-1/2
thru axle: front 100*12mm, rear 142*12mm
seatpost: frame specific
front derailleur: stationary / 1x12s, 2x12s
gear shifting: Di2 or wireless
weight:
frame 920 g (size 54cm)
fork 460g
seatpost 211g
max tire size: 700*32C
warranty: 2 years
Shimano 105 Di2
optional: Ultegra Di2
crankset 165, 170, 172.5, 175
34-50
11-30 / 11-34
disc brakes
rear 140 mm (optional 160 mm)
front 160 m

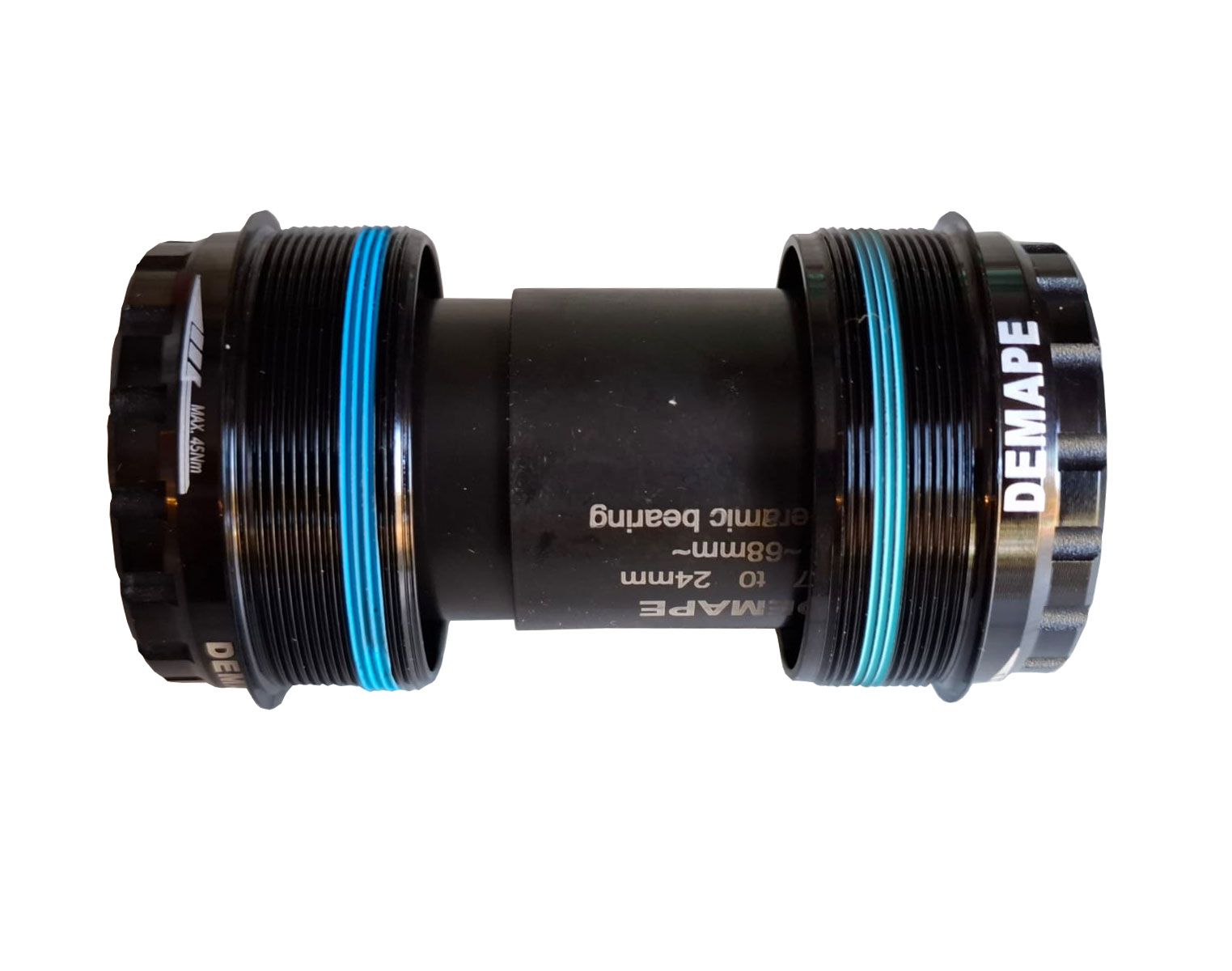

ceramic Demape bottom bracket T47 threaded
Comfortable like tubeless, but no mess when changing tires on the road.
wheels Fulcrum Soniq Al C23
tires Pirelli P Zero Road 28 mm
inner tubes Pirelli Smartube
size | stack | reach | ST | TT | HT |
425 | 502 | 351 | 425 | 500 | 97 |
460 | 507 | 360 | 467 | 506 | 109 |
490 | 528 | 371 | 488 | 523 | 123 |
515 | 548 | 373 | 512 | 531 | 142 |
540 | 572 | 387 | 537 | 558 | 169 |
