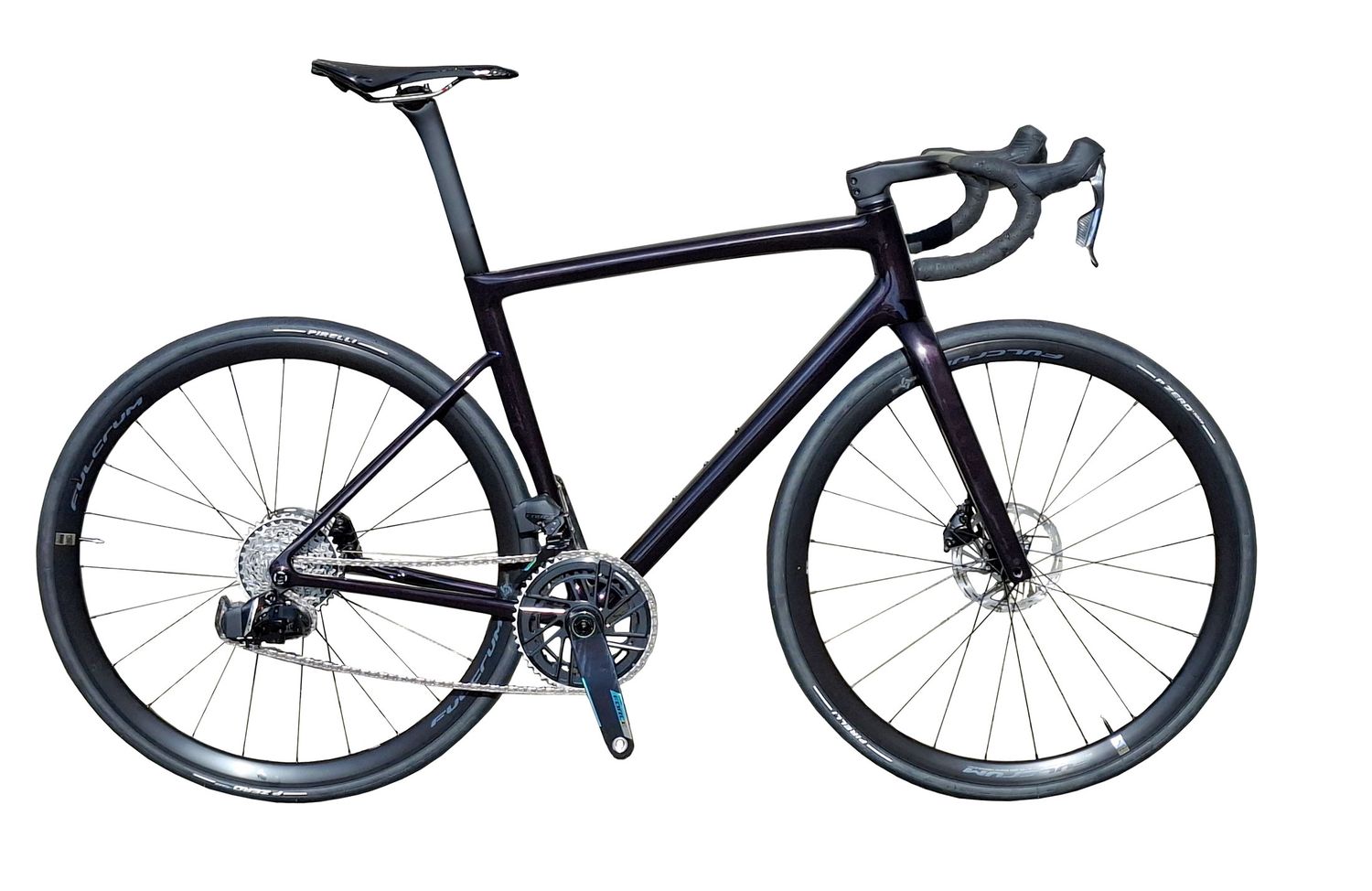

TAPPONE

In Italian cycling jargon TAPPONE is a particularly long and tiring stage in a stage race. This bicycle is made for climbing and descending and long rides, has an agile behavior, a clean look, race geometry and is built for electronic groupsets. T47 threaded bottom bracket. Frame weight 880 grams. Race geometry - lots of fun riding.

frame design

• Toray T1000
• road bicycle race geometry
• carbon weave UD
• bottom bracket T47 68mm
• headset bearings 49.5 mm - 49.5 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 2 x ..
• recommended groupset Sram Force E1 AXS
• seatpost flat shaped, frame specific
• integrated seatpost lock
• front derailleur mount stationary
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 880g (size 54cm), fork 415g
• frame size 440 / 490 / 520 / 540 / 560 / 580
• max tire size 32 mm

warranty

2 Years

color design

• black finish matt
• pearl deep purple over black finish gloss

groupset

• Tappone Ultegra
  assembled with Shimano Ultegra Di2 12s
• Tappone 105
  assembled with Shimano 105 Di2 12s
• Tappone Force
  assembled with Sram Force AXS 12s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli Zero Road 28 mm (optional 30 mm, 32 mm)
• inner tube Pirelli Smartube
  feels like tubeless, but no mess when changing tires on road


saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Demapè flat shaped, frame specific setback 12 mm

handlebar

• cbTec one piece stem / handlebar

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

	xs	s	m	l	xl	xxl
	440	490	520	540	560	580
seat tube	434	446	457	474	495	516
head tube	99	109	120	137	157	184
stack	500	514	527	545	565	591
reach	366	375	380	384	395	402
top tube	495	508	531	540	562	607
