Shimano brake bolts

Product Details

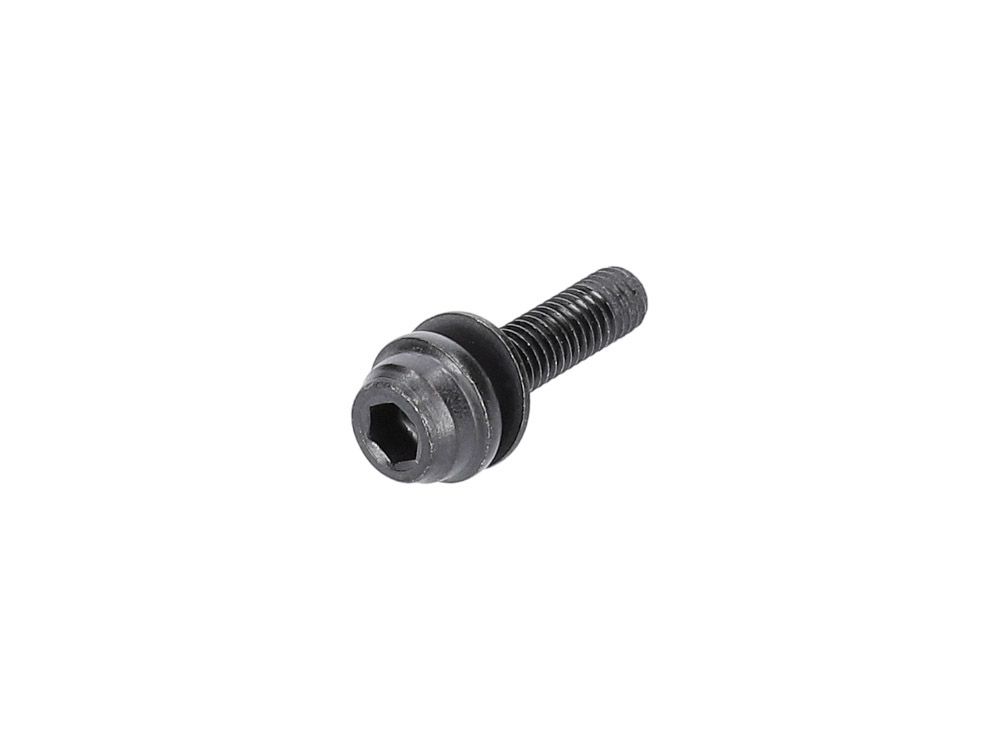

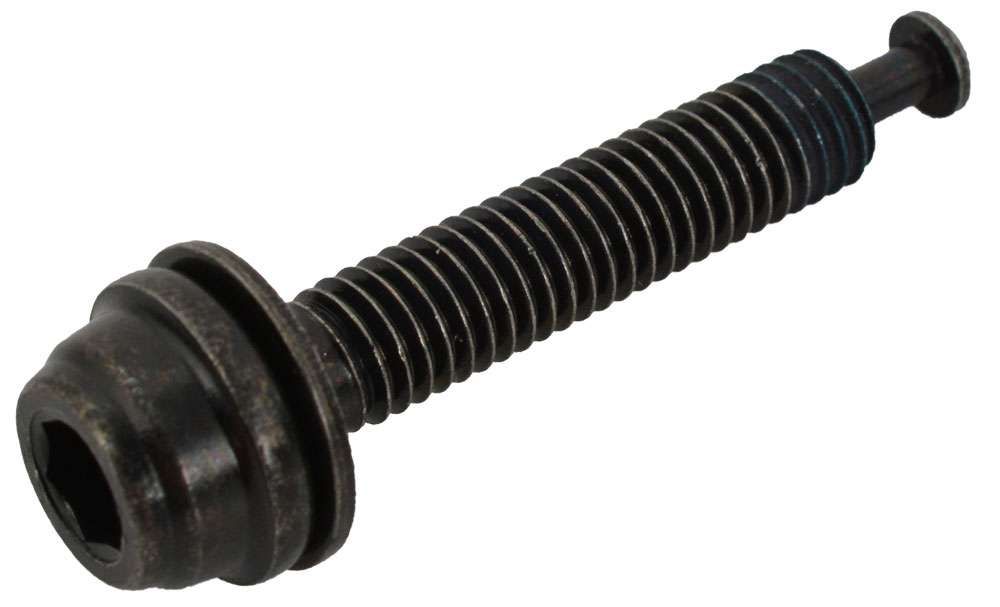

SHIMANO bolt for flat mount brake caliper/adapter | type C or C2

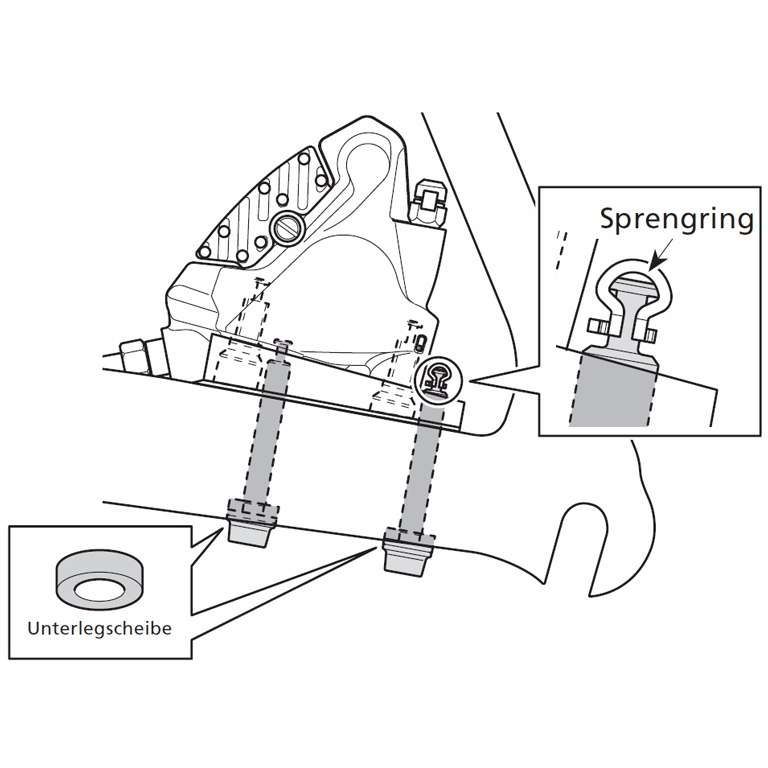

Original Shimano bolt (type C2) for mounting flat mount calipers and adapters. Available for various frame / fork thicknesses.

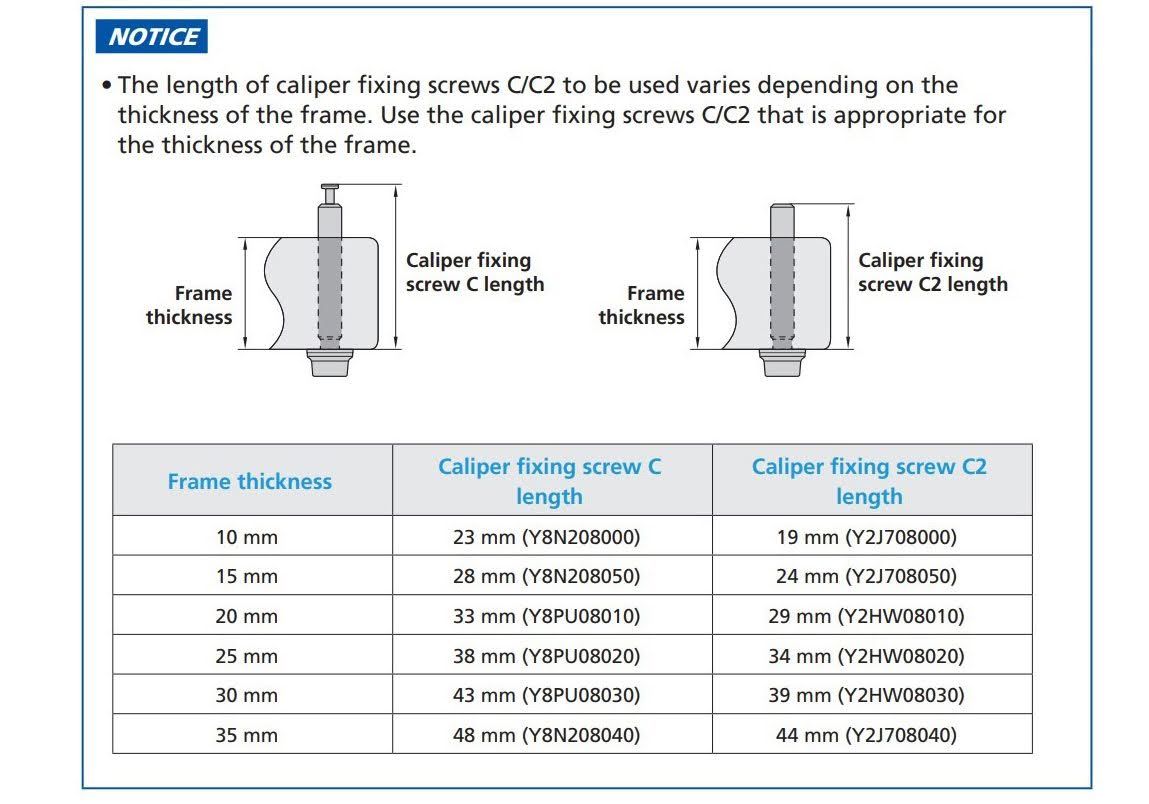

Note: Most brakes are attached with one type C2 bolt and one type C bolt. Please check which bolts you need in the instructions for your brake before ordering.

technical data:

material: steel
head shape: pan head
head diameter: 10.5 mm
head height: 5.5 mm
thread: M5
thread length: 19 / 24 / 29 / 34 / 39 / 44 mm
total length: 25 / 30 / 35 / 40 / 45 / 50 mm

brake caliper compatibility: Ultegra BR-R8170,105 BR-R7170, GRX BR-RX820-LE, BR-R9270

compatibility adapter: Shimano flat mount 140 mm to 160 mm (SM-MA-R160D/D)
max. torque: 6-8 Nm
4 mm hexagon socket
