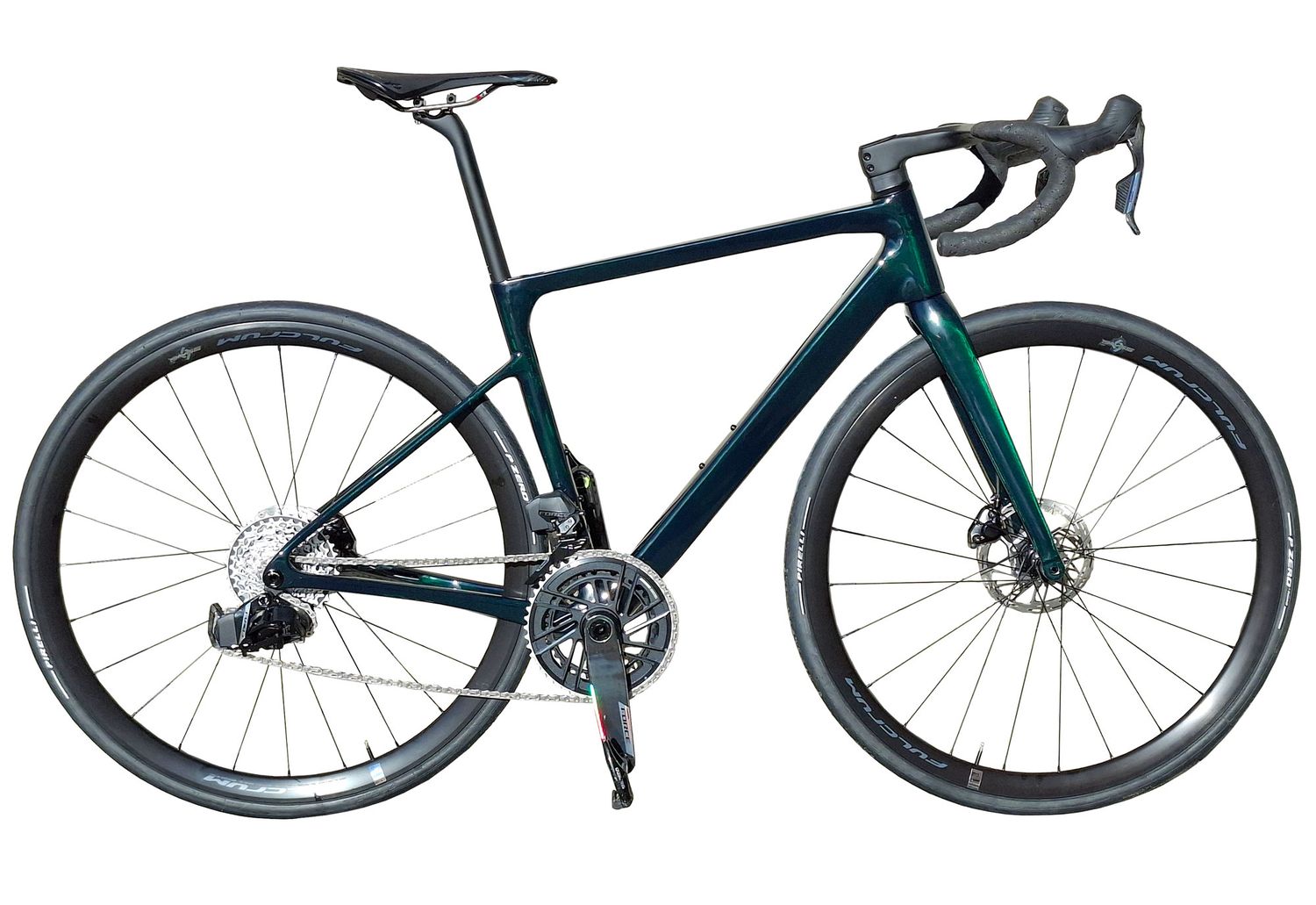

SCENIC Endurance

Raised stack height and relaxed reach offers a more comfortable endurance position.Toray pro level carbon fiber, Shimano or Sram components, complete custom build. Best price-performance ratio through direct sales. Integrated seatpost lock with standard 27,2 mm seatpost. Bottom bracket threaded BSA. Minimalist design, room for personal style, colors green carbon or soul red with glossy finish.

frame design

• Toray T1000
• road bicycle endurance geometry
• carbon weave UD
• bottom bracket BSA 68mm
• headset bearings 52 mm - 52 mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 2 x ..
• recommended groupset Sram Force E1 AXS and Shimano Di2
• seatpost any 27.2 mm
• integrated seatpost lock
• front derailleur mount
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 890g (size 54cm), fork 435g
• frame size 430 / 460 / 490 / 520 / 550
• max tire size 32 mm

warranty

2 Years

color design

• black matt
• metallic red gloss
• green carbon gloss

groupset

• Scenery Ultegra
  assembled with Shimano Ultegra Di2 12s
• Scenery 105
  assembled with Shimano 105 Di2 12s
• Scenery Force
  assembled with Sram Force AXS 12s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli Zero Road 28 mm (optional 30 mm, 32 mm)
• inner tube Pirelli Smartube
  feels like tubeless, but no mess when changing tires on road


saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Demapè flat shaped, frame specific setback 12 mm

handlebar

• cbTec one piece stem / handlebar

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

	xs	s	m	l	xl
seat tube	430	460	490	520	550
head tube	120	138	157	173	195
stack	533	553	571	589	610
reach	371	374	381	385	393
top tube	516	530	546	560	580
