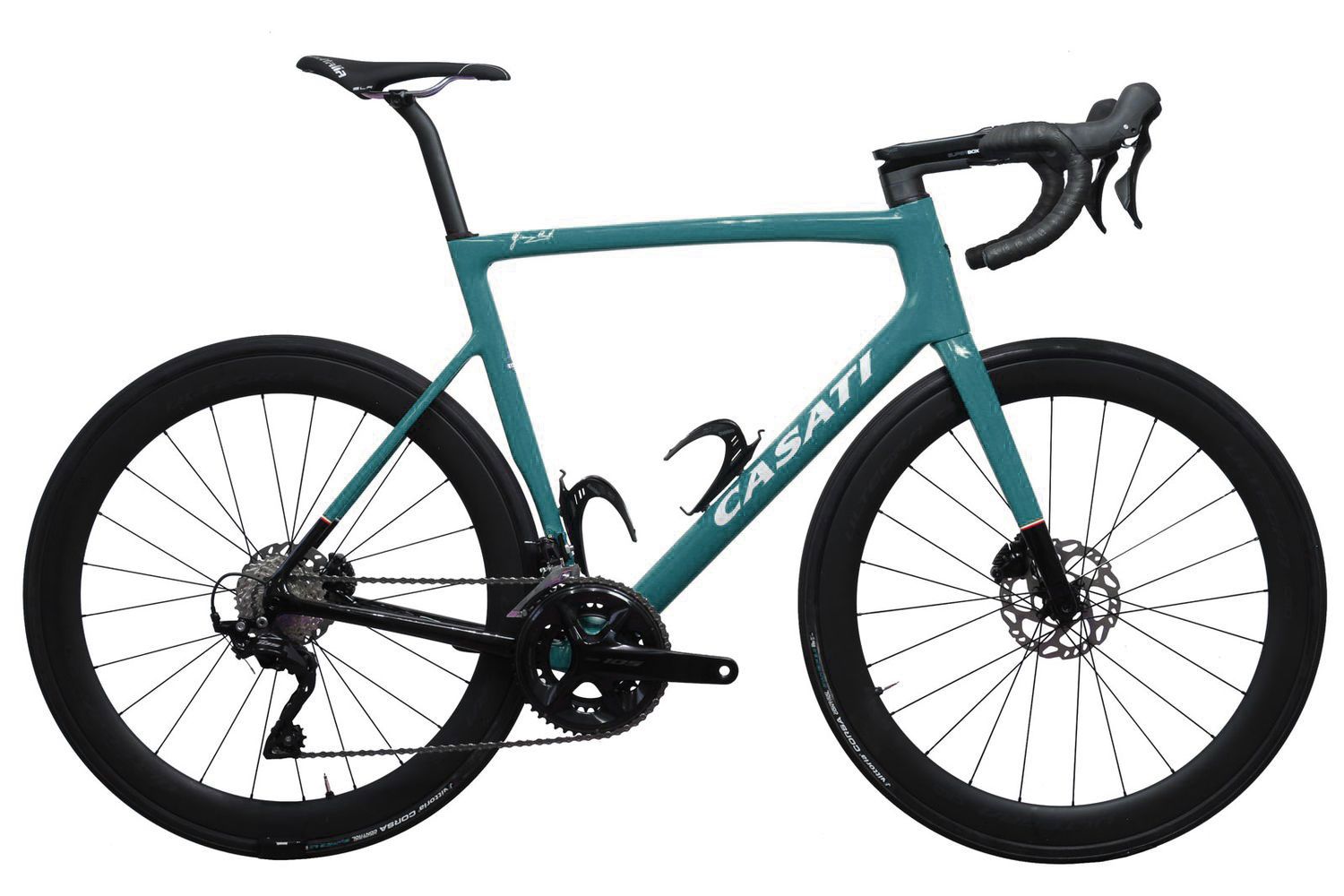

carbon frame Superlight OPM
material: Toray T1000 Carbon Fibre
frame size: 44/49/52/54/56/58cm
seatpost: D-shape, lenght optional 300mm or 380mm
headset size: top 1-1/2 (52mm) - down 1-1/2(52mm)
bottom bracket: BSA threaded, width 68mm
finish: glossy or matte
hidden internal cable routing
flat mount disc brake, 140 or 160mm
axle rear 142*12mm / front 100*12mm
rear derailleur hanger UDH
maximum tire size: 700x32C
for groupset/shifting Di2
weight frame 780g +/-50g
weight fork 390+/-10g
weight seatpost 190+/-10g
weight of matt black frame, not included fittings
warranty: 3 years
Shimano Ultegra Di2 12s
Shimano 105 Di2 12s
model Ultegra Aero
stem/handlebar integrated
carbon
model Ultegra and 105
stem Deda Superbox
handlebar Deda Superzero aluminum
handlebar tape Casati (black)
discs: rear 140 mm (optional 160 mm)
front 160 mm
Fulcrum Racing 4 DB
tires Pirelli P Zero Road 28 mm
with inner tubes
any RAL color
any Casati color
or custom / your favorite color
Easy communication.
By phone, by email, by WhatsApp.
English, German or Italian.
Let us know your ideas.
We work out with you:
size
color, design
components

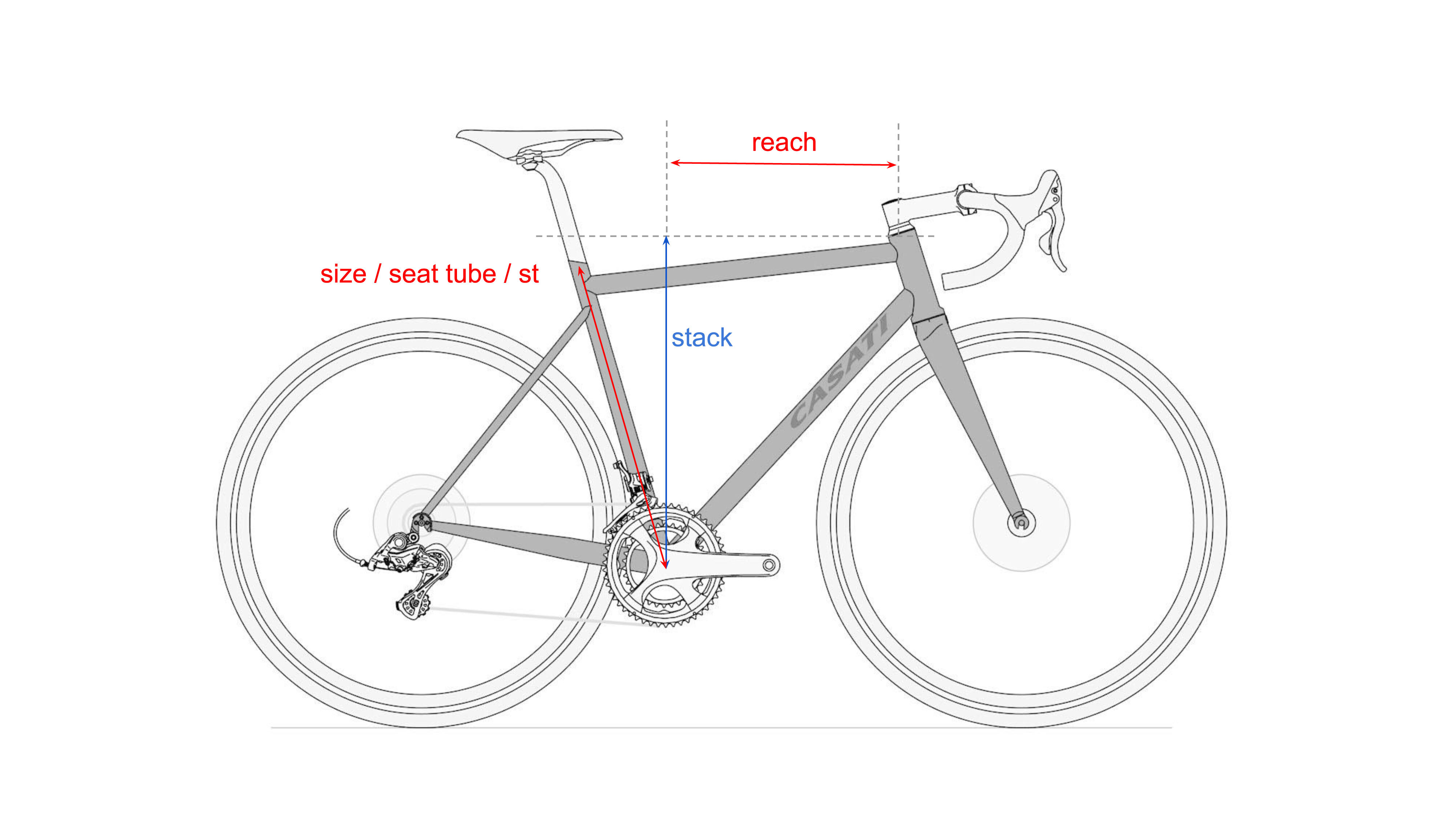

determine size with stack and reach

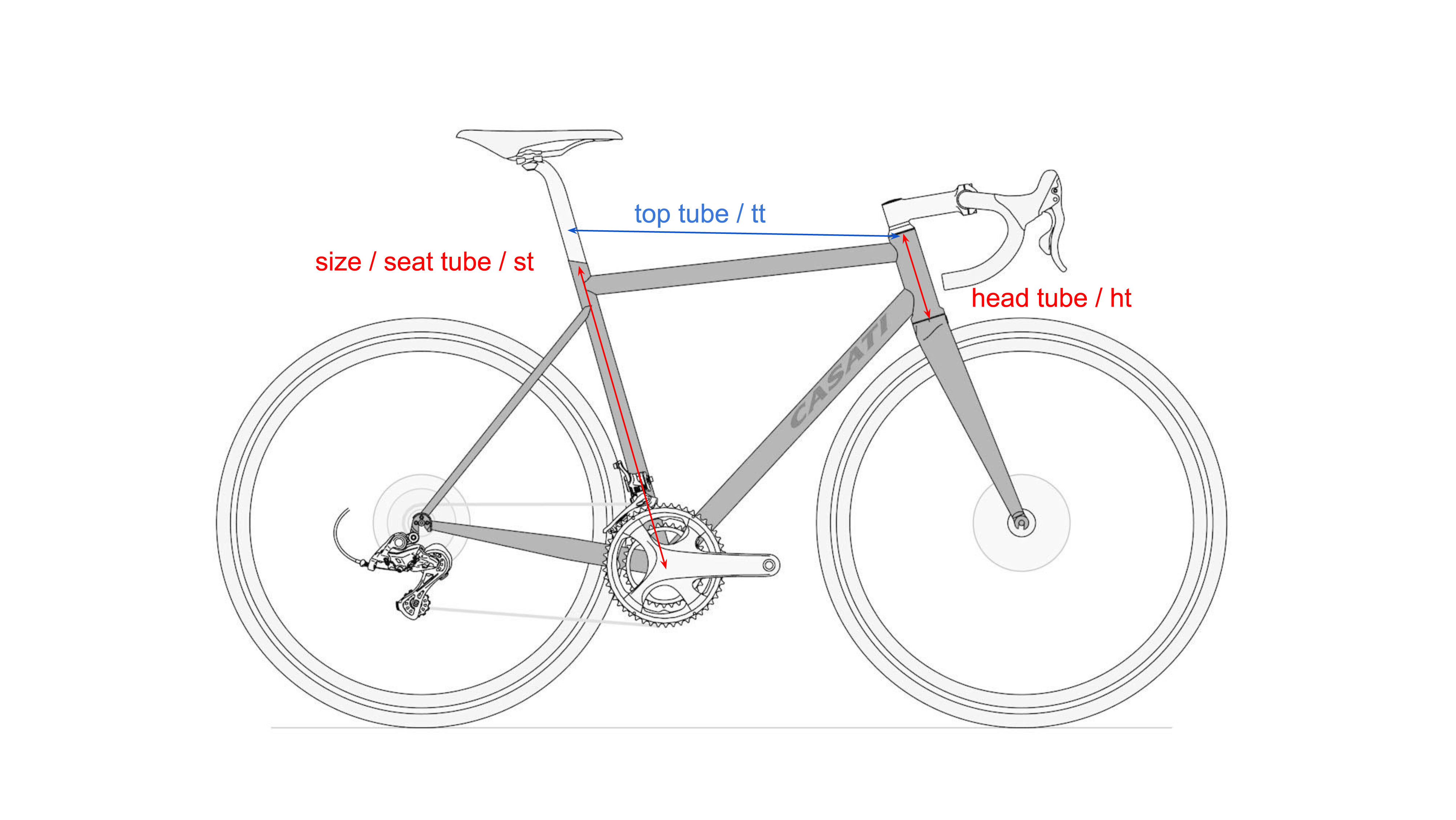

determine size traditionally with seat tube, top tube and head tube length
frame size RACE competition | C R1 | C R2 | C R3 | C R4 | C R5 |
stack | 510 | 523 | 542 | 563 | 588 |
reach | 379 | 384 | 388 | 397 | 406 |
seat tube c-t | 460 | 490 | 510 | 530 | 560 |
top tube | 515 | 536 | 548 | 565 | 587 |
head tube | 110 | 120 | 140 | 160 | 180 |
seat tube angle | 75.0° | 74.0° | 73.5° | 73.2° | 73.0° |
chain stay | 408 | 408 | 408 | 408 | 408 |
head tube angle | 71.5° | 72.5° | 73.0° | 73.5° | 73.8° |
We ship the bicycle to you with DHL. For warranty, repair or year end service you can reuse our sustainable packaging (bicycle safety box).
