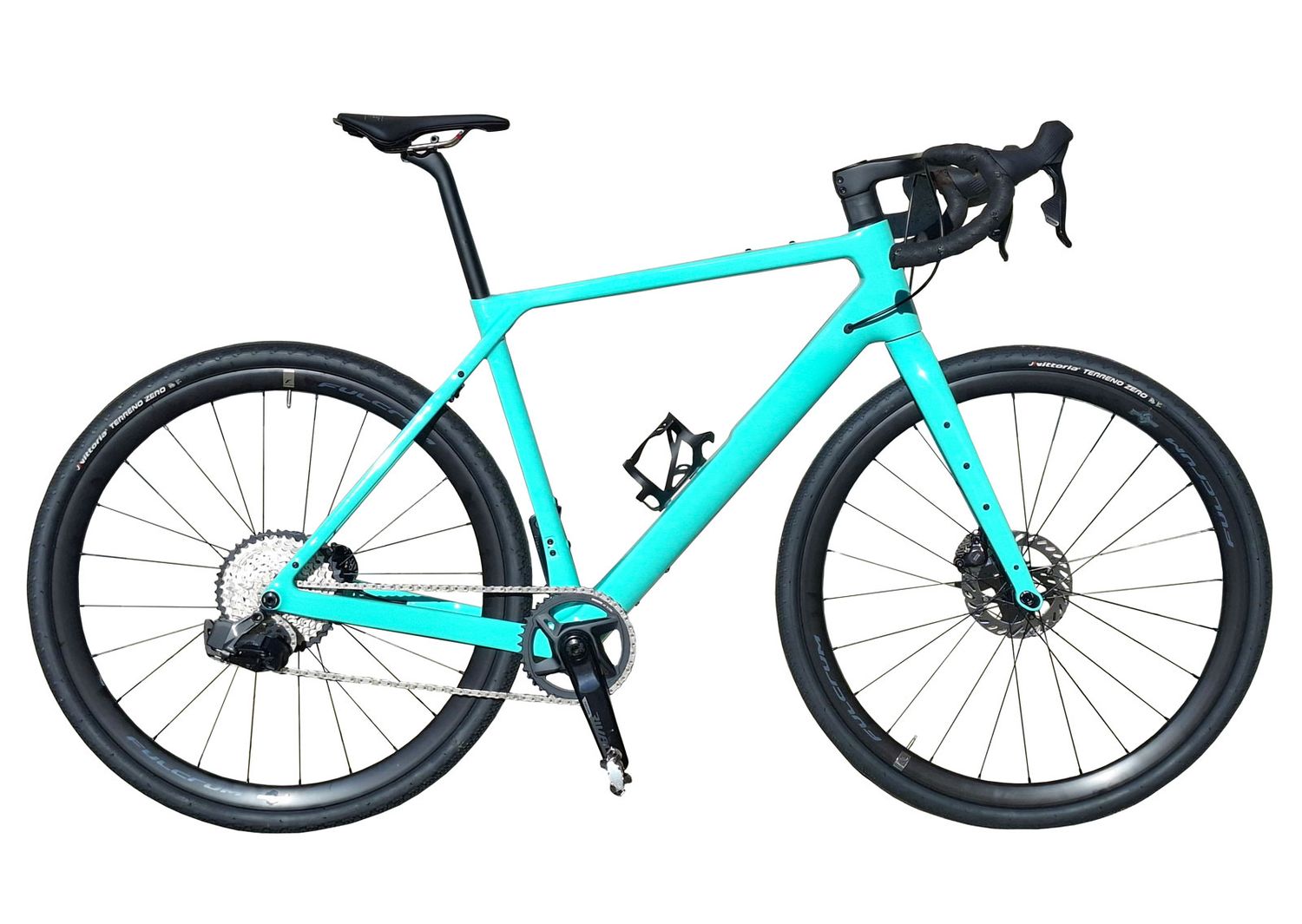

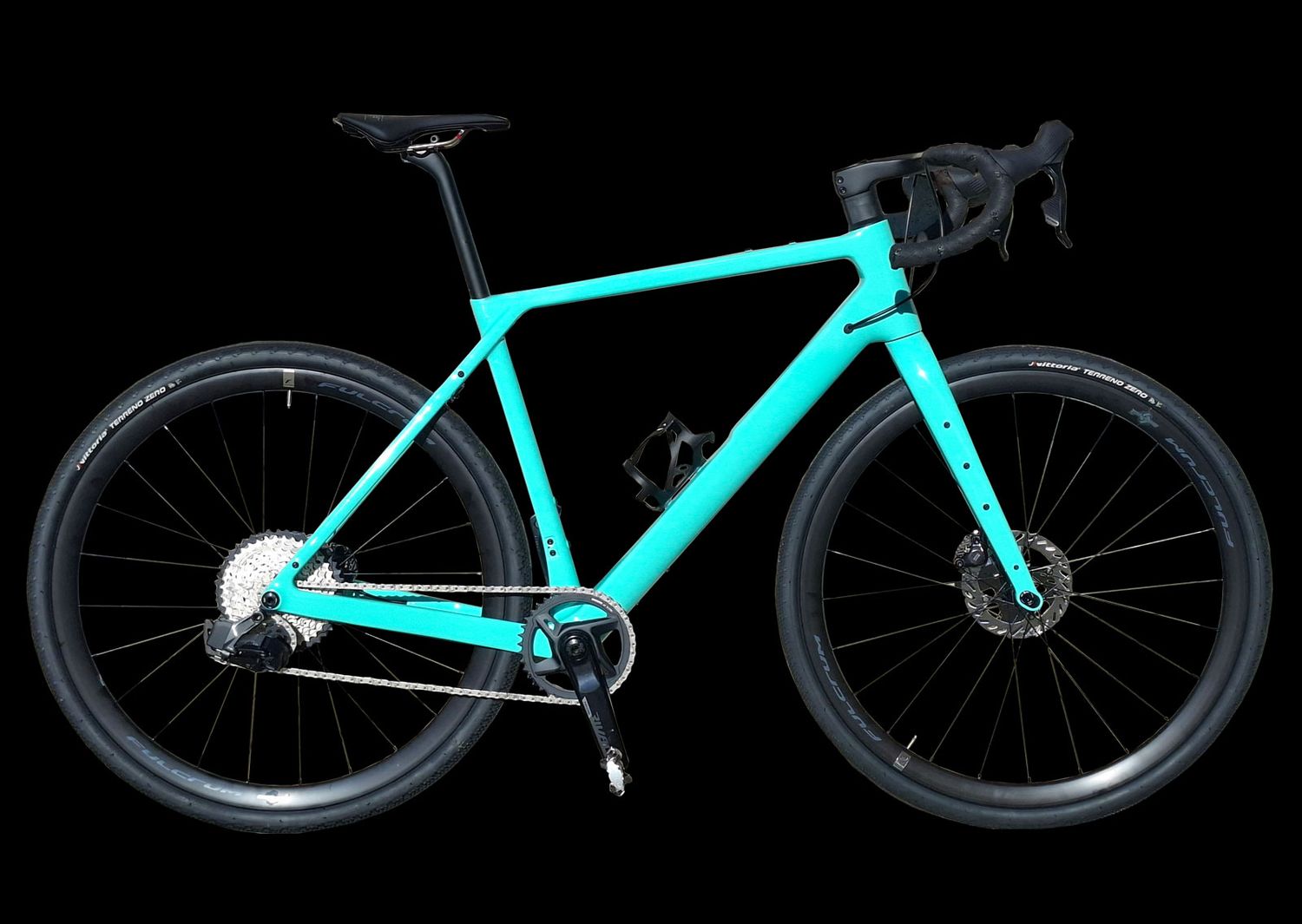

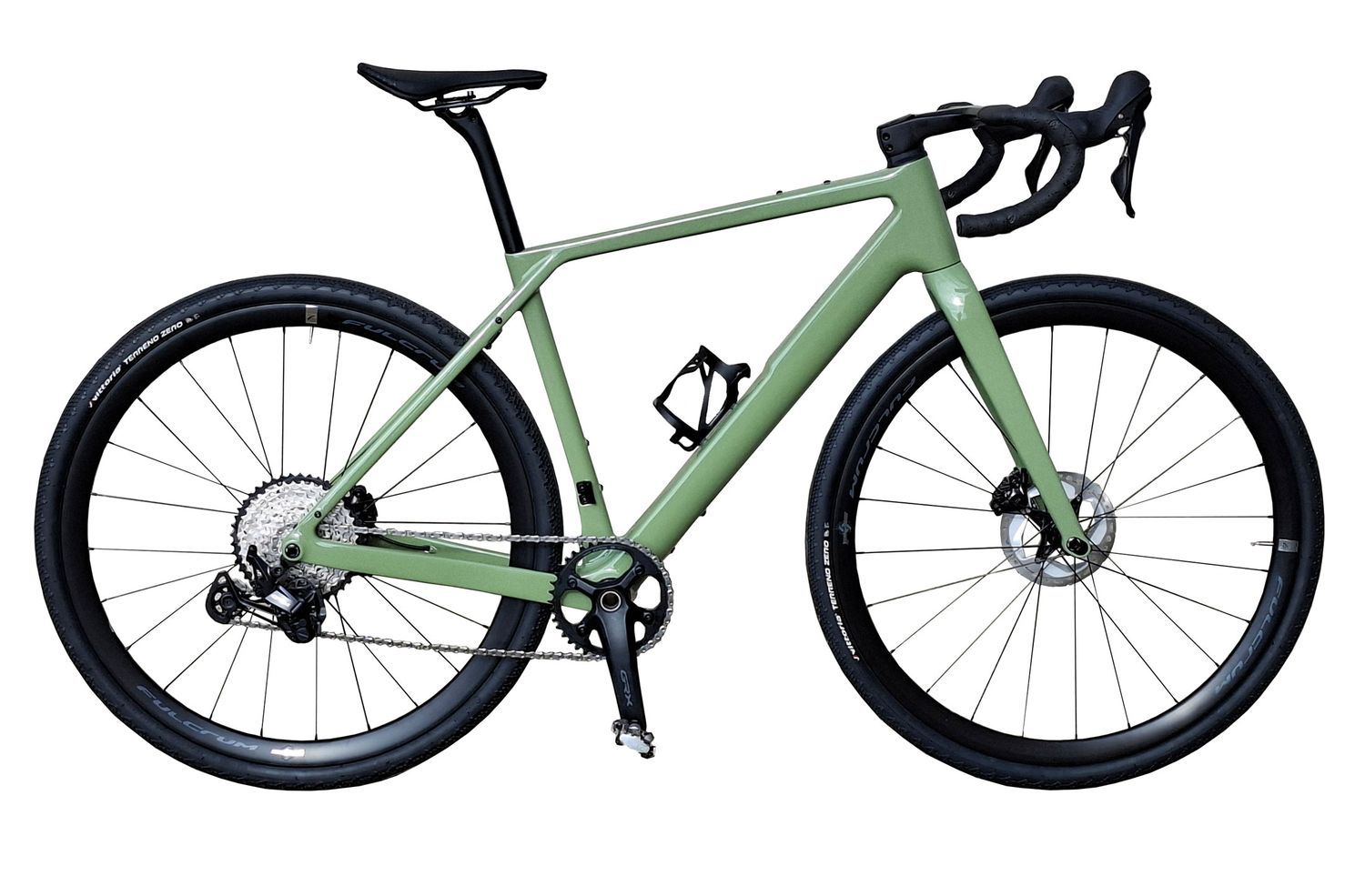

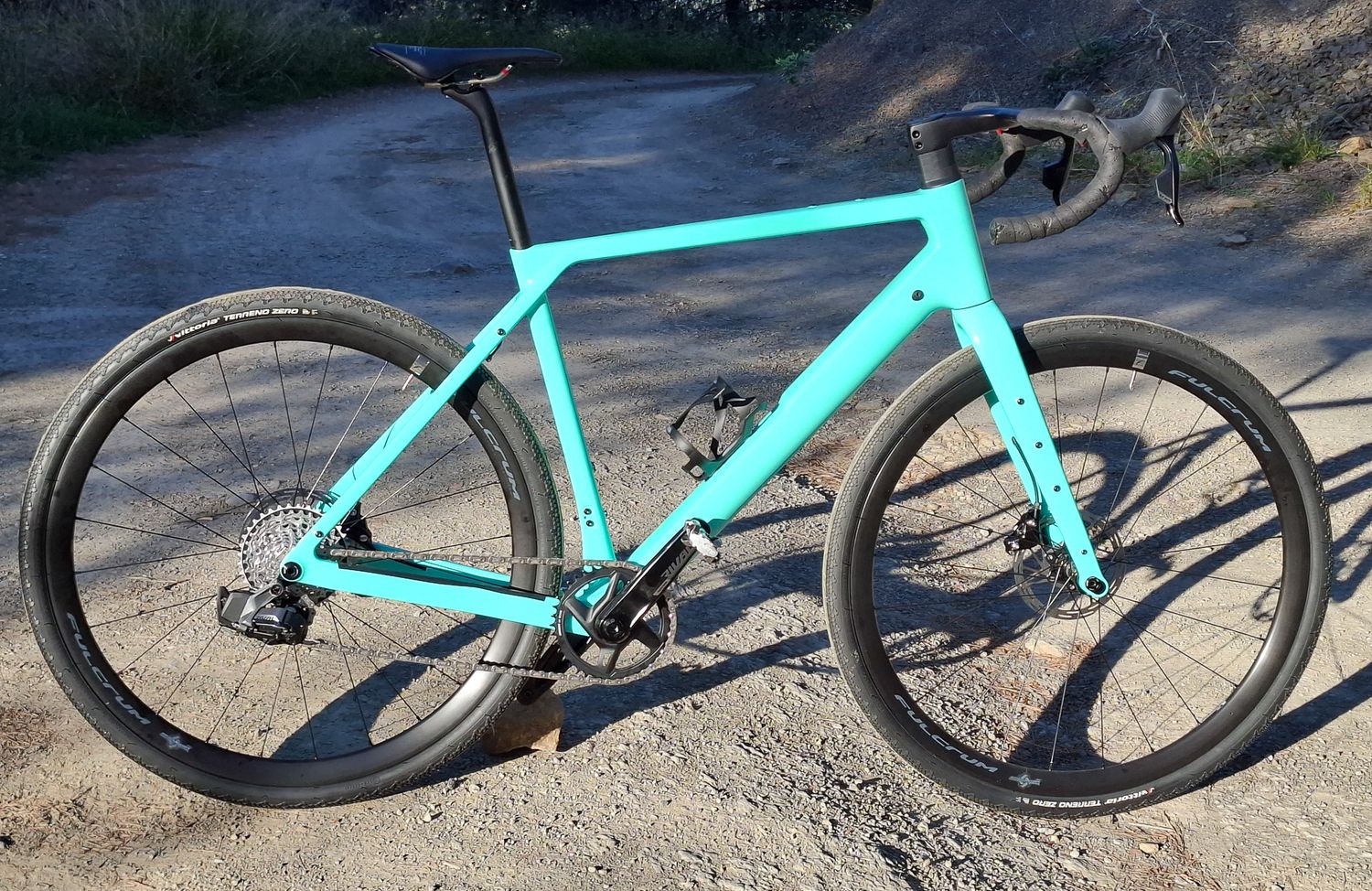

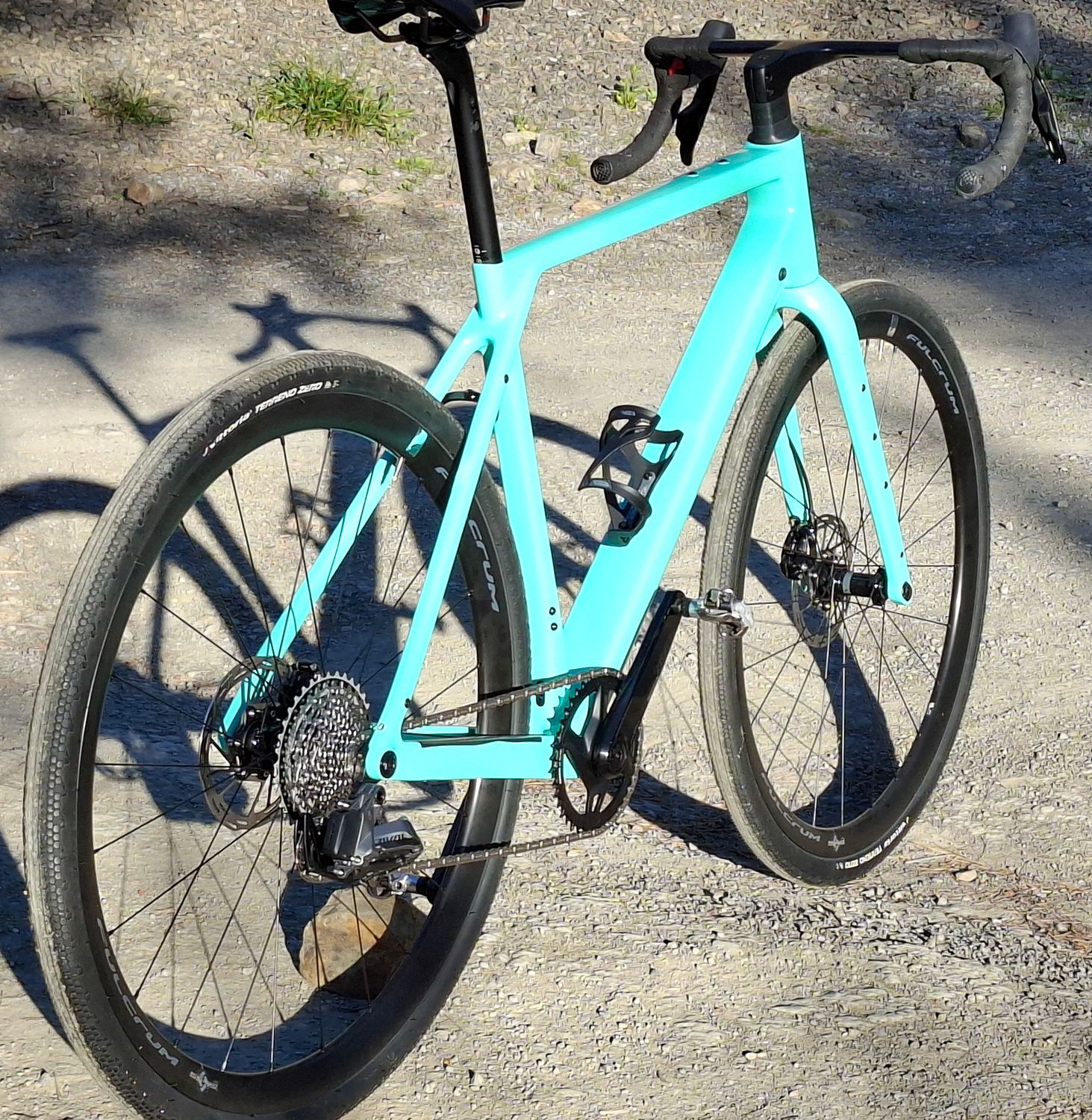

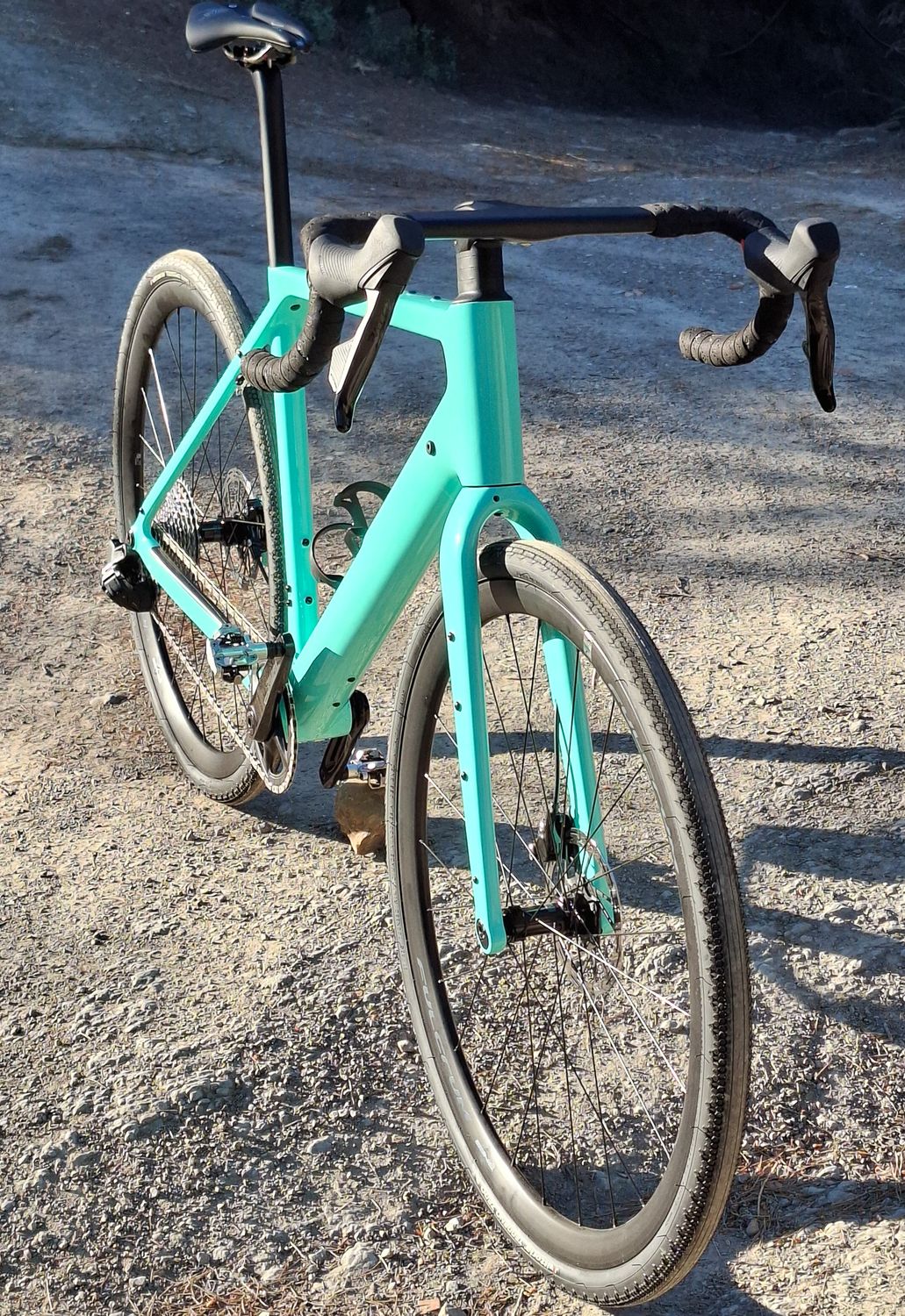

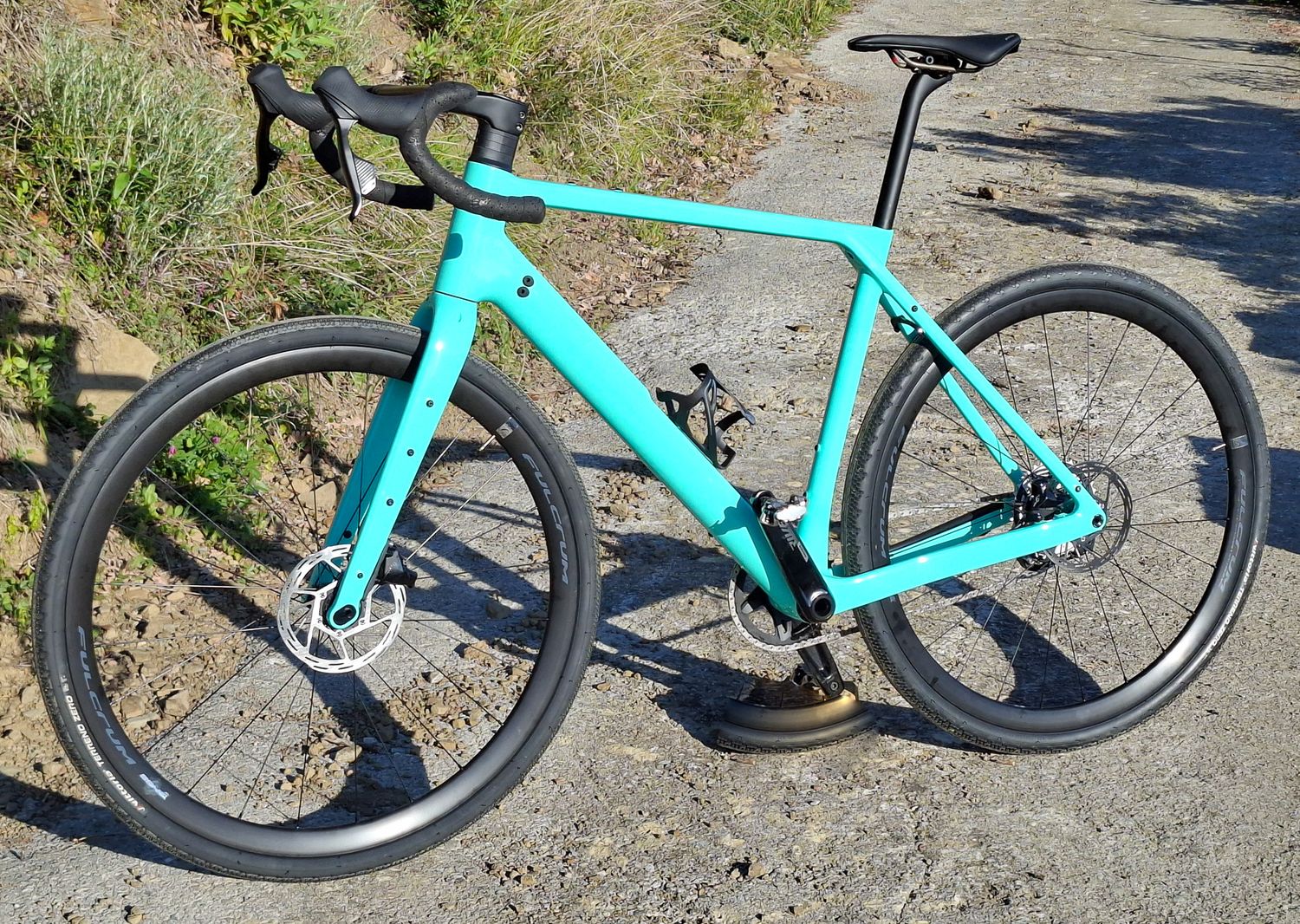

OFF GRID Gravel

external brake cable for easy maintenance

frame design

• carbon T1000 Toray
• gravel and road
• carbon weave UD
• bottom bracket T47 86.5mm
• headset bearings 52 mm - 52 mm
• thru axle front 100*12mm / rear 142*12mm

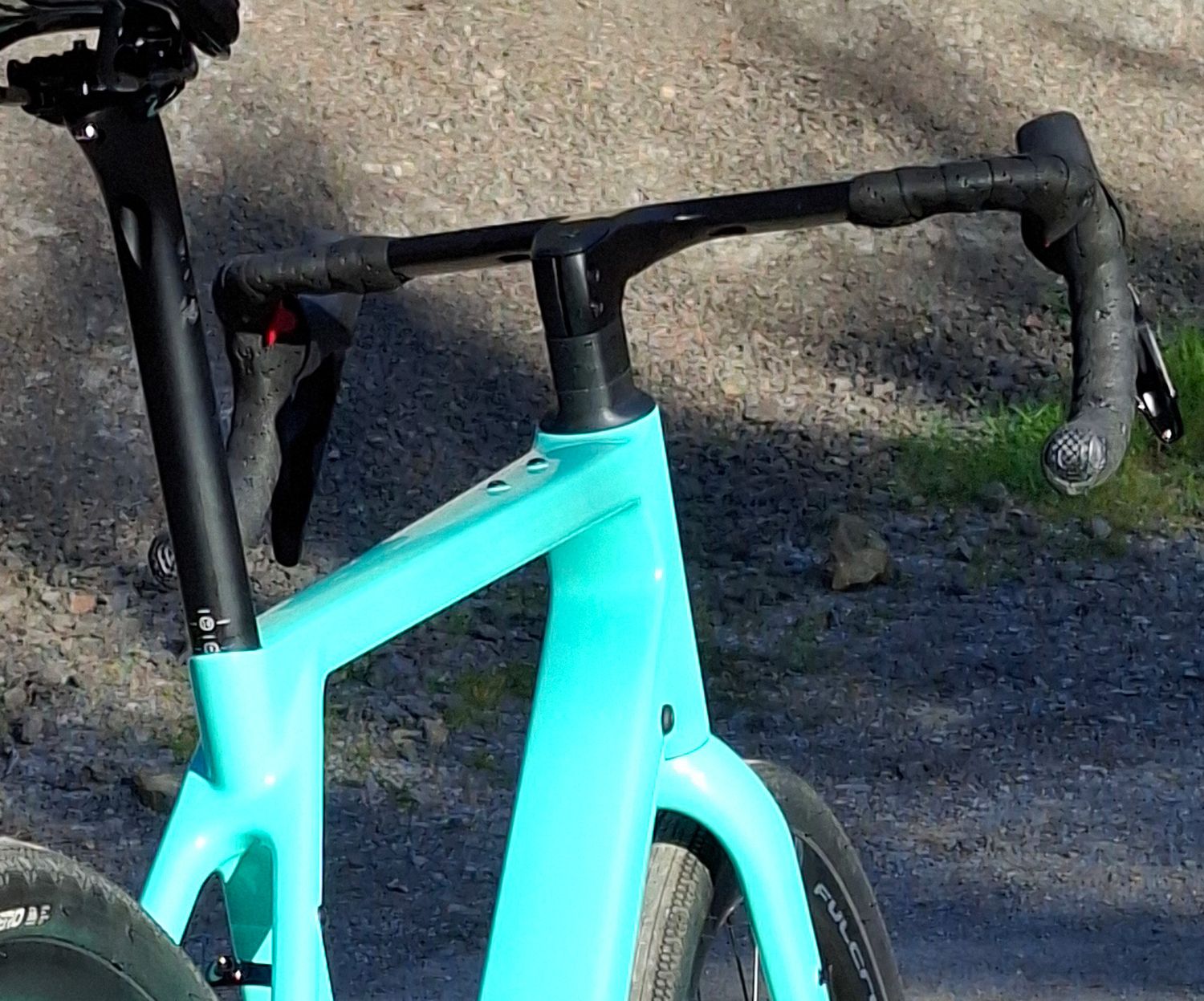

• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• seatpost diameter 27.2mm

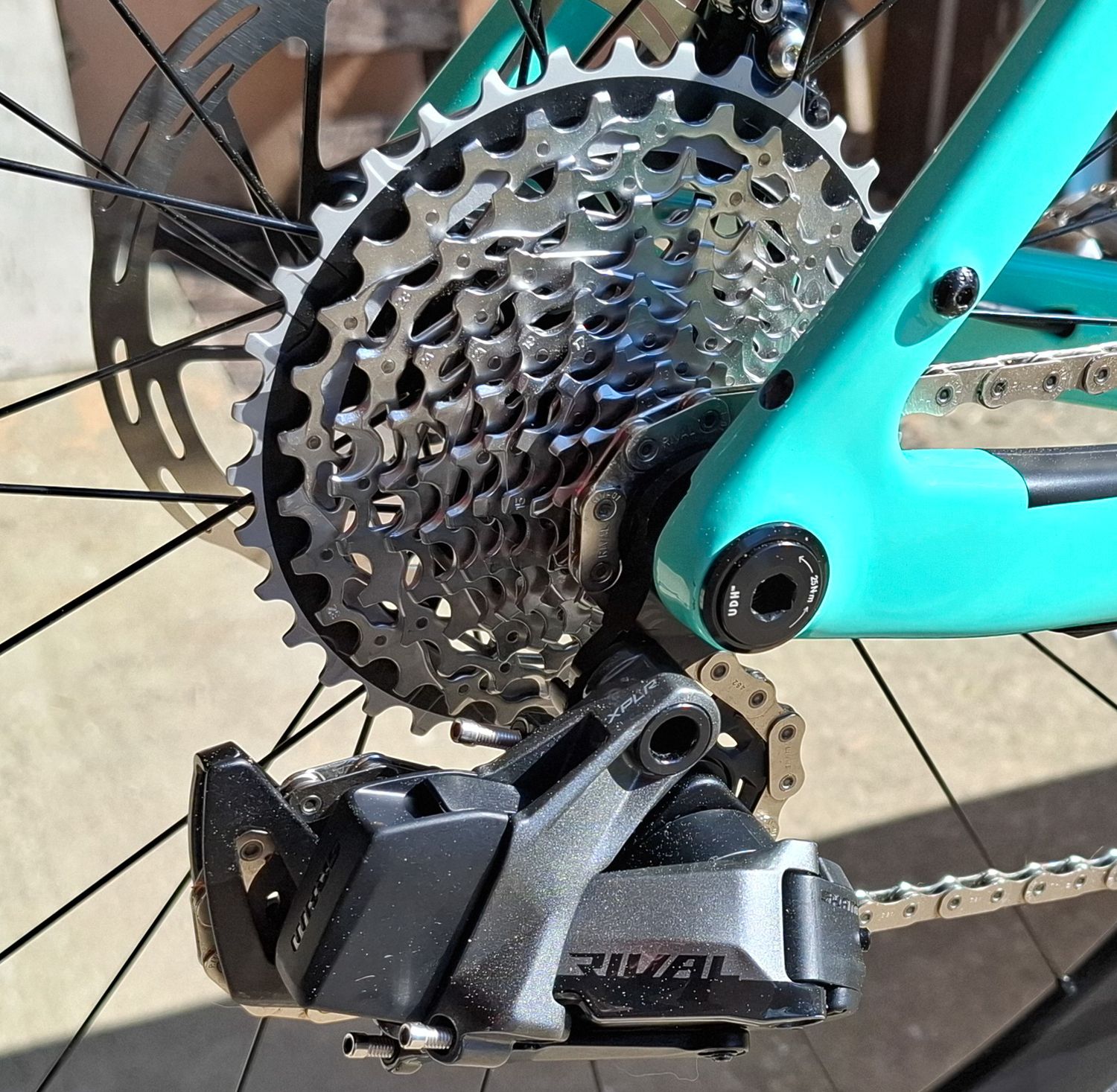

• front derailleur mount removable for 1x12

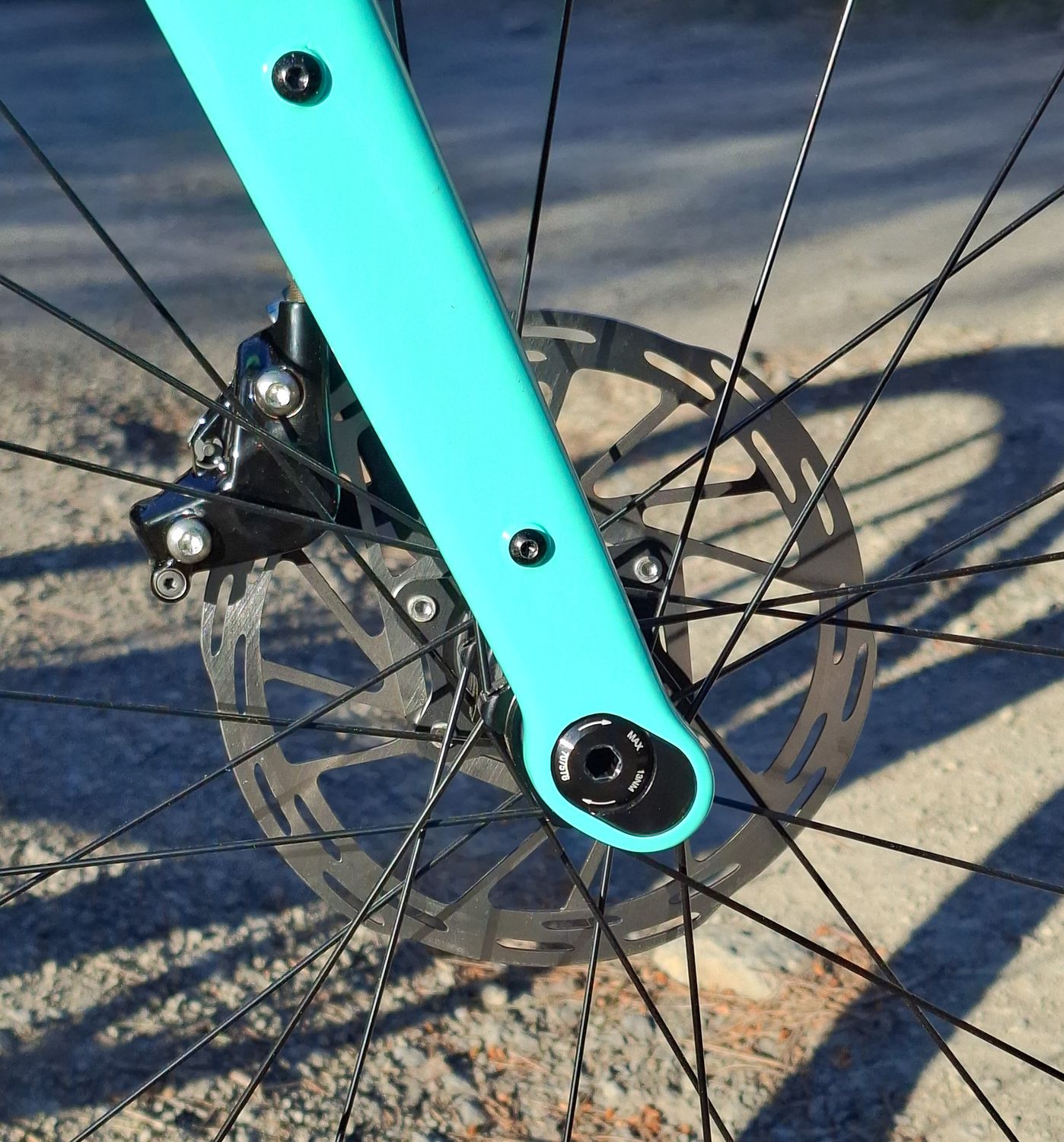

• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1260g (size 54cm), fork 470g
• frame size XS / S / M / L-56 / XL
• max tire size 700*45C / 27.5*2.1"

threaded bosses

• bag top tube
• bag lower side down tube

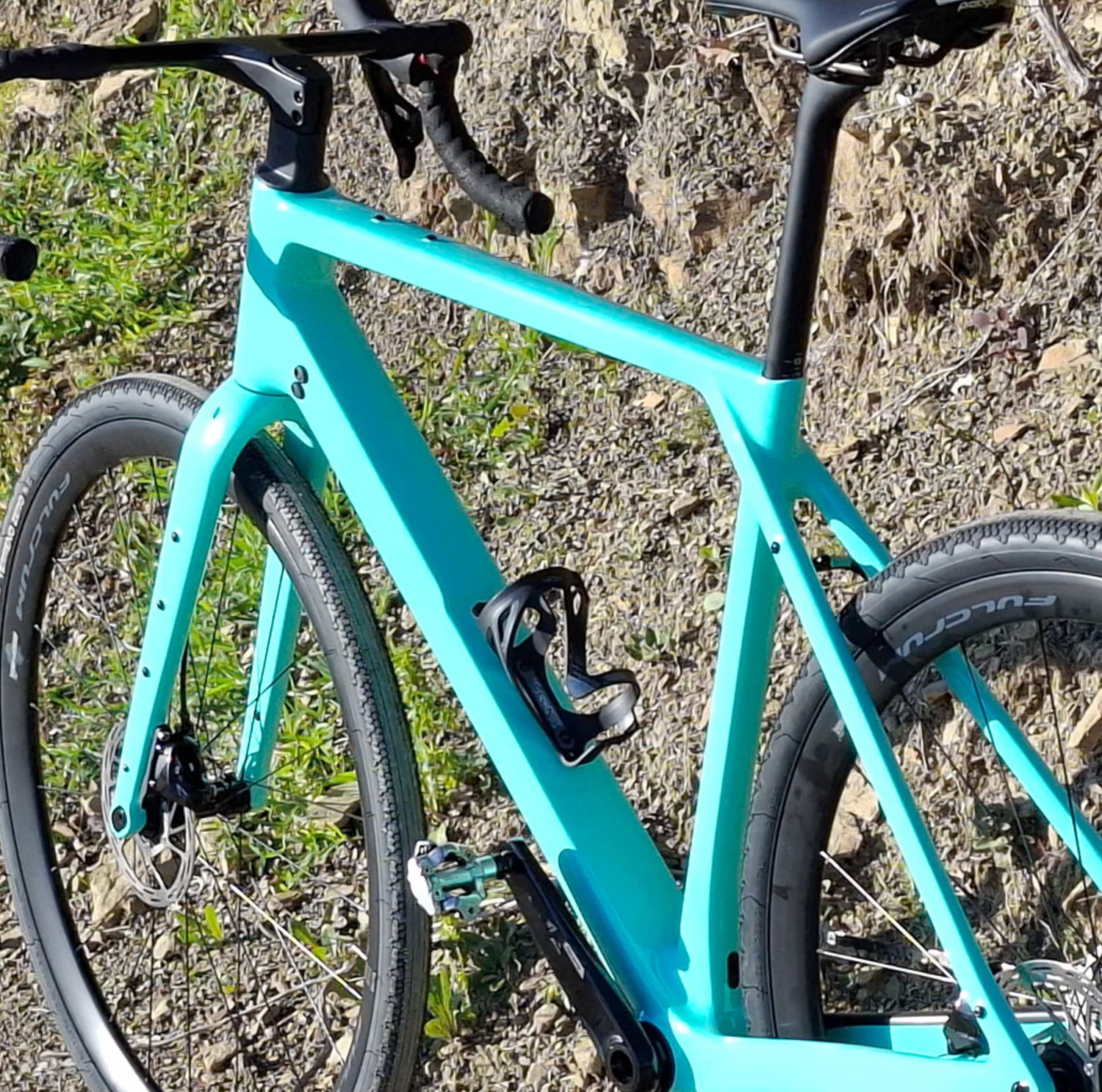

• 2 bottel cages / down tube / seat tube
• extra bottle cage lower side down tube

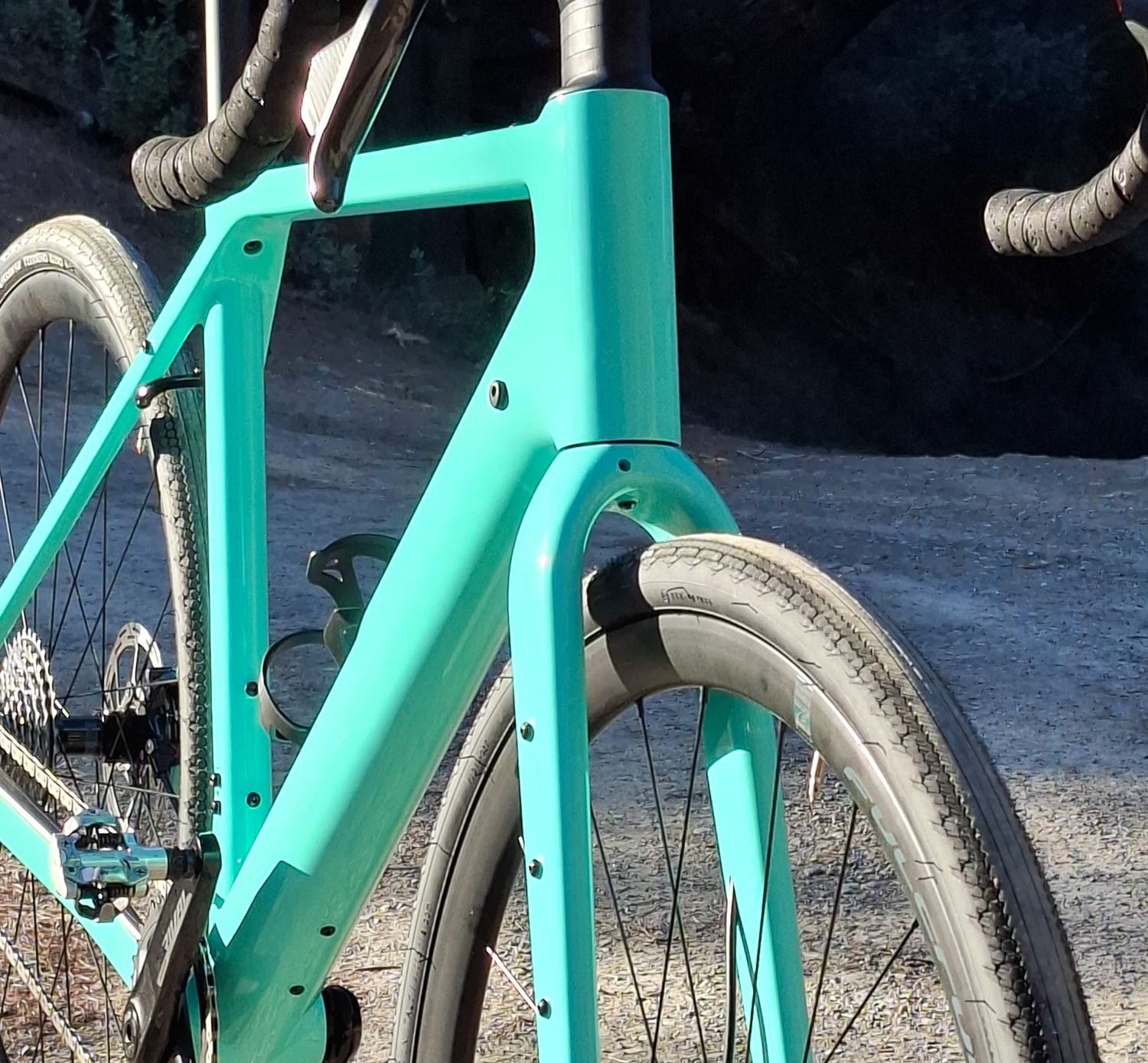

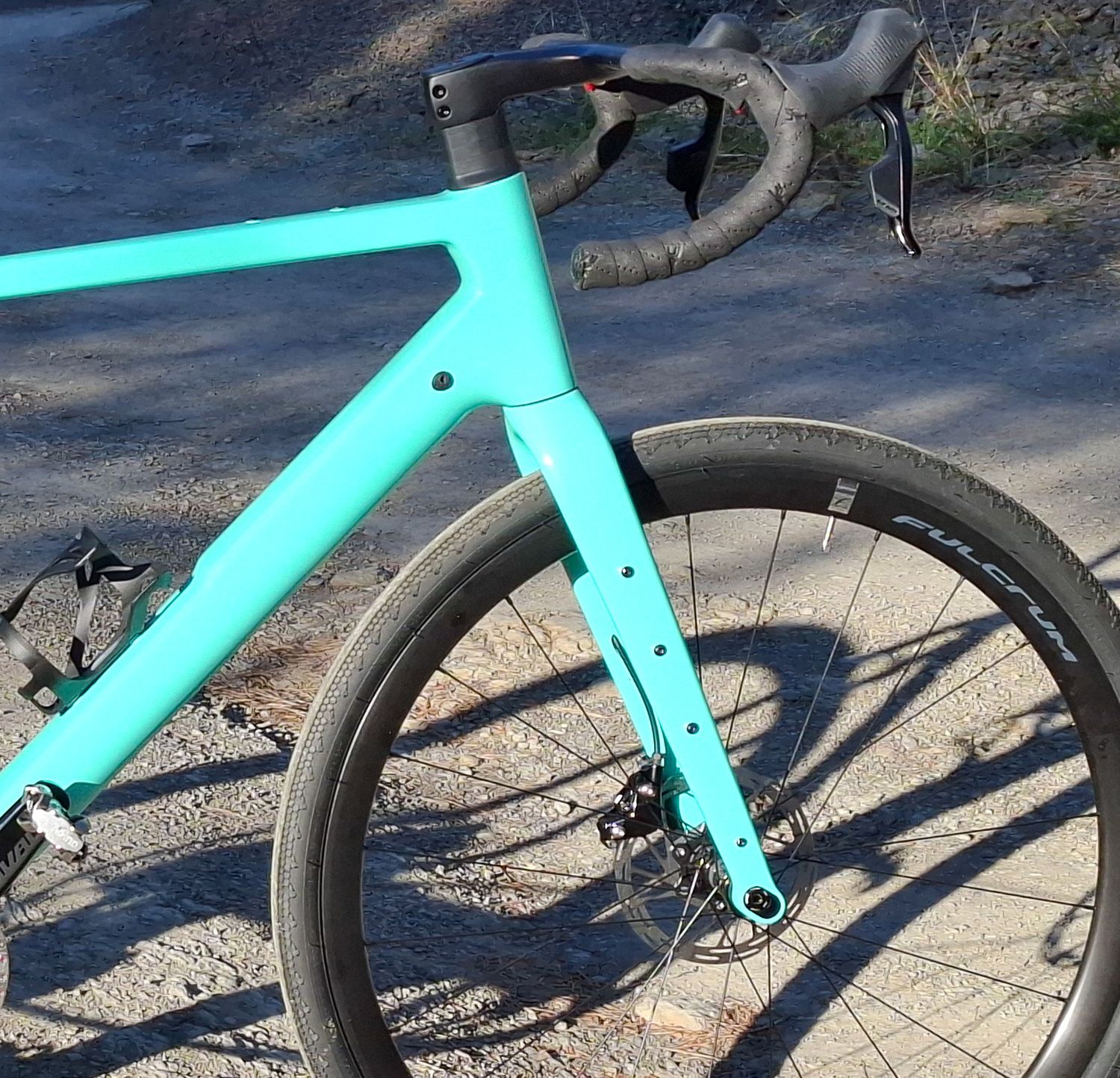

• 3 threadings both sides fork
• rear stays for mud guards and rack compatible

warranty

2 years frame / fork
components manufacturer's warranty terms and conditions

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Vittoira Terreno Zero 38, 40 or 45 mm
• inner tube Pirelli

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 0mm or 12 mm
• optional cbTec carbon 12 mm

frame sizes / geometry
