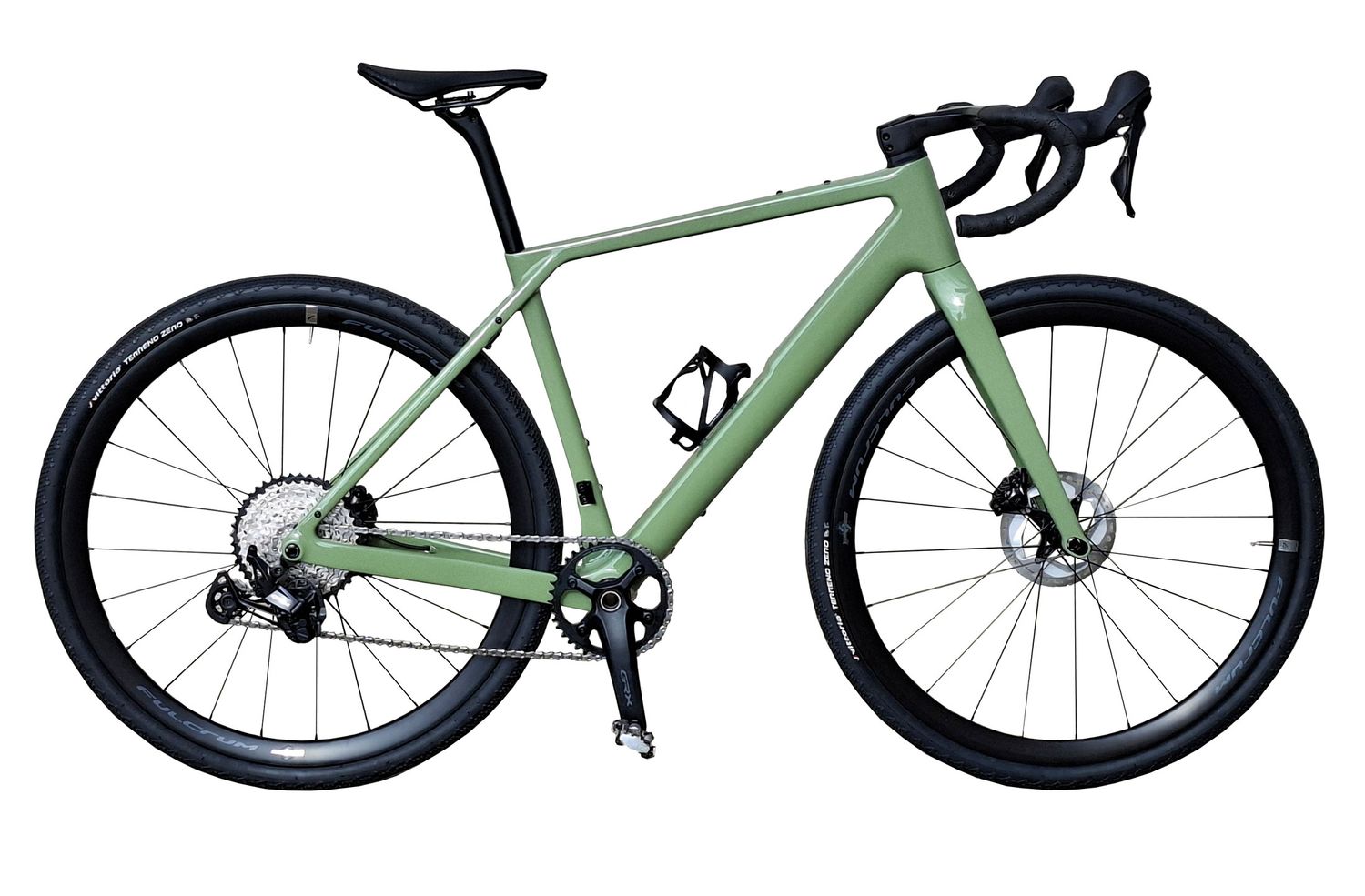

OFF GRID Gravel

Gravel bicycle with gloss finish one color design. Lots of threaded bosses for mudguards, bags and rack mount. We suggest groupset GRX Di2 825 2x12s o rGRX Di2 827 1x12s or Rival XPLR 1x13s.

frame design

• T1000 Toray
• gravel and road
• carbon weave UD
• bottom bracket T47 86.5mm
• headset bearings 52 mm - 52 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 1x12, 1x13 / 2x12
• compatible with mechanical, Di2, AXS
• seatpost diameter 27.2mm
• seatpost collar
• front derailleur mount removable for 1x12
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1260g (size 54cm), fork 470g
• frame size XS / S / M / L-56 / XL
• max tire size 700*45C / 27.5*2.1"

threaded bosses

• bag top tube
• bag lower side down tube
• 2 bottel cages / down tube / seat tube
• extra bottle cage lower side down tube
• 3 threadings both sides fork
• rear stays for mud guards and rack compatible

warranty

2 years frame / fork
components manufacturer's warranty terms and conditions

color design

• brown green finish gloss

groupset

• OFF GRID grx 825
  assembled with Shimano GRX 825 / 2x12s / Di2
• OFF GRID grx 827
  assembled with Shimano GRX 827 / 1x12s / Di2
• OFF GRID XPLR
  assembled with Sram Rival XPLR 1x13s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Vittoira Terreno Zero 38, 40 or 45 mm
• inner tube Pirelli

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 0mm or 12 mm
• optional cbTec carbon 12 mm

cockpit

• cbTec one piece stem / handlebar

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

	xs	s	m	l	xl
st	450	480	510	540	570
ht	129	145	163	187	207
stack	557	574	591	614	634
reach	385	394	411	427	435
tt	551	564	586	608	623
