EXPLORER Allroad.

You don't like to buy an armada of bicycles? But you like to ride gravel roads and paved roads?
The Explorer might be your solution.

frame design

• Toray T800
• gravel and road
• carbon weave UD
• bottom bracket pressfit BB386 41*86.5mm
• headset bearings 52 mm - 52 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 1x12, 1x13 / 2x12
• compatible with mechanical, Di2, AXS
• seatpost shape flat / frame specific
• seatpost lock ntegrated
• front derailleur mount removable for 1x12
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1110g (size 54cm), fork 450g
• max tire size 38 mm

warranty

• 2 years frame / fork
• components manufacturer's warranty terms and conditions

color design

• spanish grey

groupset

• Explorer 105
  assembled with Shimano 105 Di2 - 2x12s
• Explorer Ultegra
  assembled with Shimano Ultegra Di2 - 2x12s
• Explorer Force
  assembled with Sram Force E1 AXS - 2x12s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

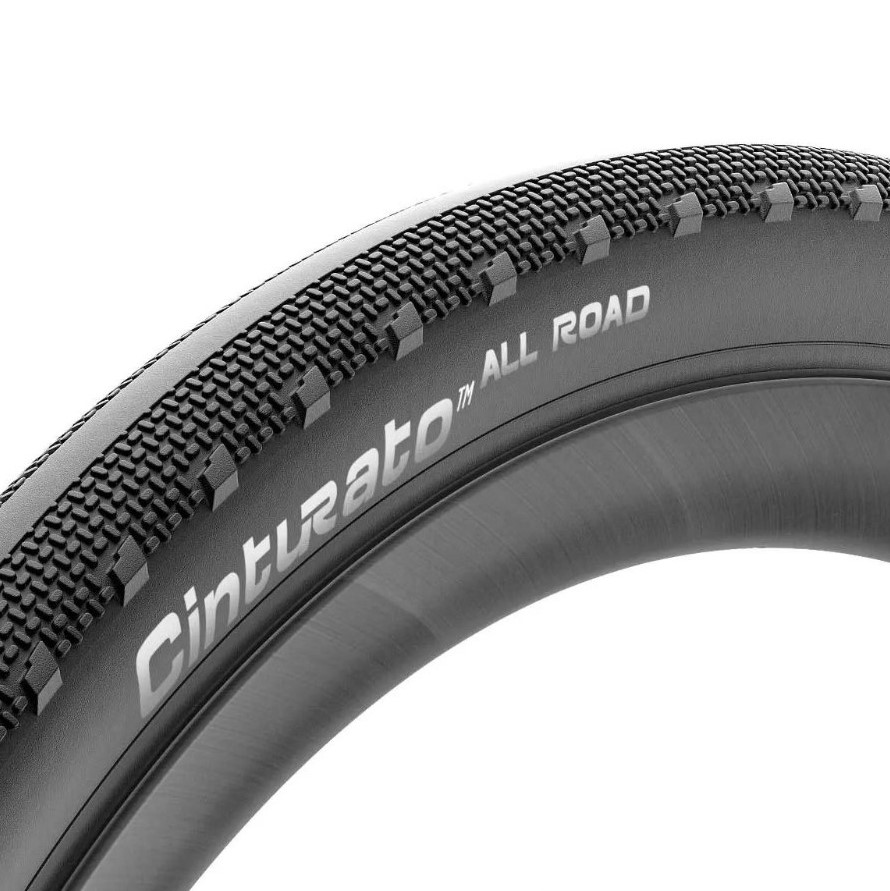

• Pirelli Cinturato Allroad 35 mm
  Pirelli tires
• inner tube Pirelli roadtube

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• frame specific setback 12 mm

cockpit

• cbTec one piece stem / handlebar

handlebar sizes

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

st	470	490	510	530	550
ht	105	125	145	165	185
stack	529	552	572	593	614
reach	383	387	390	394	398
tt	525	540	555	570	585
