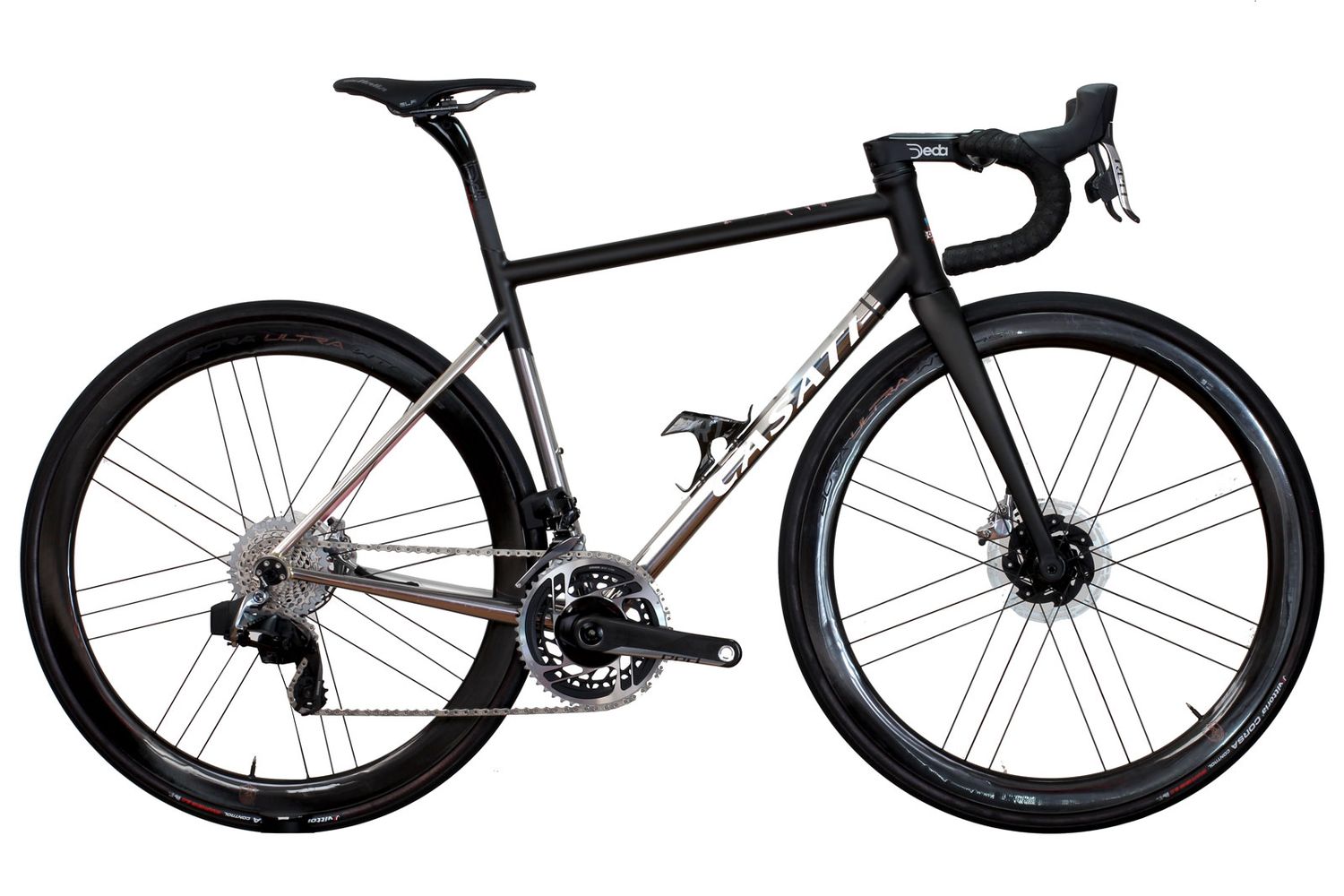

ESPRESSO Inox

frame design

• tubeset Columbus XCr Inox
• fork Columbus Futura
• fillet brazed
• painted or polished or a combination
• bottom bracket T47 68mm
• headset bearings 52 mm - 52 mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line / optional external
• frame internal cable routing disc brake line
• compatible with chain rings 2 x .. / optional 1 x ...
• compatible with Di2, AXS / optional mechanical
• seatpost diameter 27.2 mm
• integrated Casati seatpost lock
• front derailleur braze on
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1680g (size 54cm), fork 430g
• frame size / geometry made to measure
• max tire size 32 mm

warranty

2 years Casati frame/fork
components manufacturer's warranty terms and conditions

color design

• custom

see gallery for color / design ideas

see prices Casati design Inox

groupset

• Espresso Inox Ultegra
  assembled with Shimano Ultegra Di2 12s
• Espresso Inox 105
  assembled with Shimano 105 Di2 12s
• Espresso Inox Force
  assembled with Sram Force AXS 12s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli P Zero Road 28 mm (optional 30 mm, 32 mm)
• inner tube Pirelli Smartube
  feels like tubeless, but no mess when changing tires on road

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 setback 0 mm / 12 mm

handlebar

• cbTec one piece stem / handlebar
• optional Deda Superbox / Deda Superzero Aluminum

headset bearings

• steel Deda DCR
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

sizes / geometry

exclusively made to measure

see how to plan your custom geometry

we guide you through the custom made process

lead time 8 weeks

photos do not always show actual details/components
