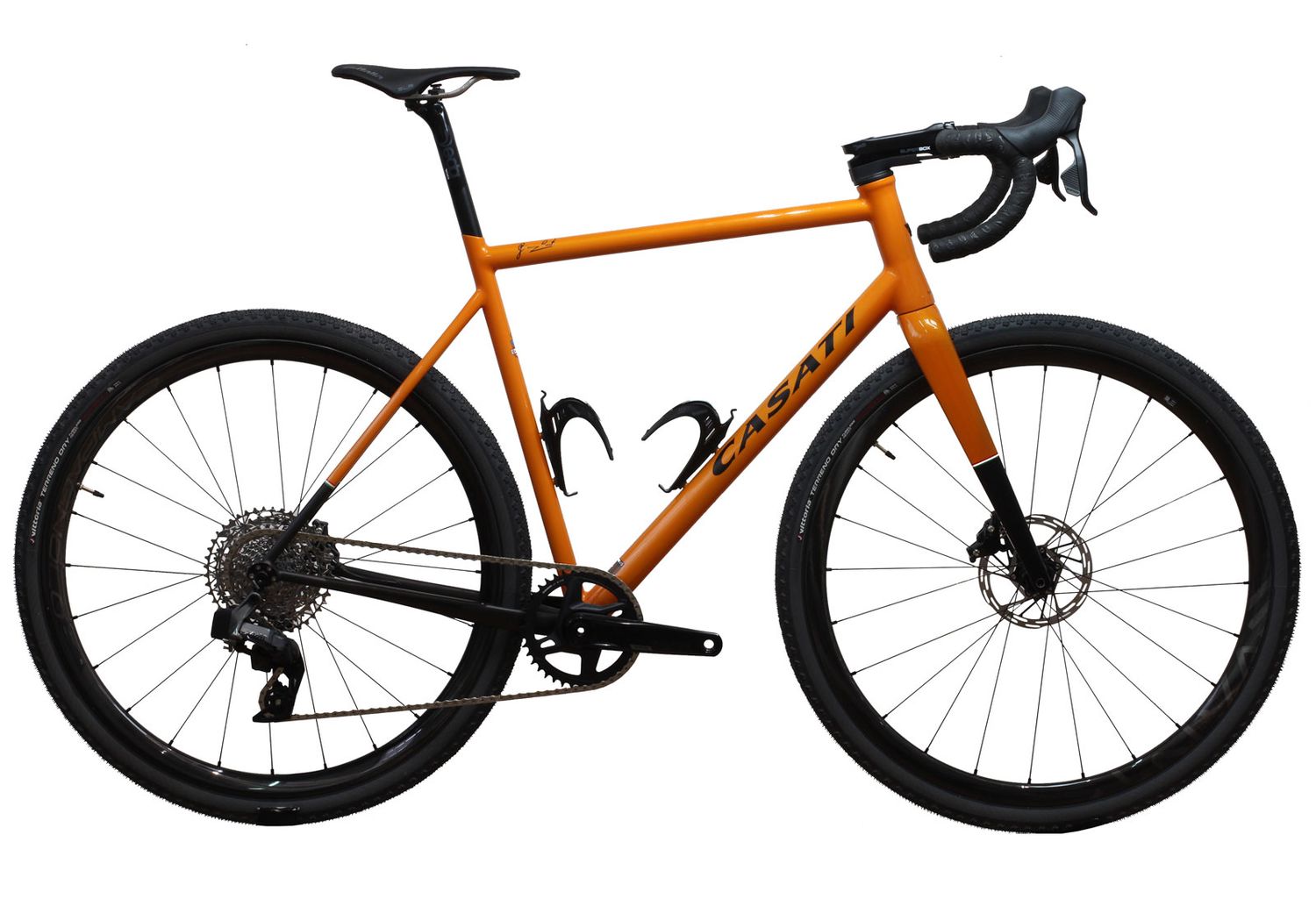

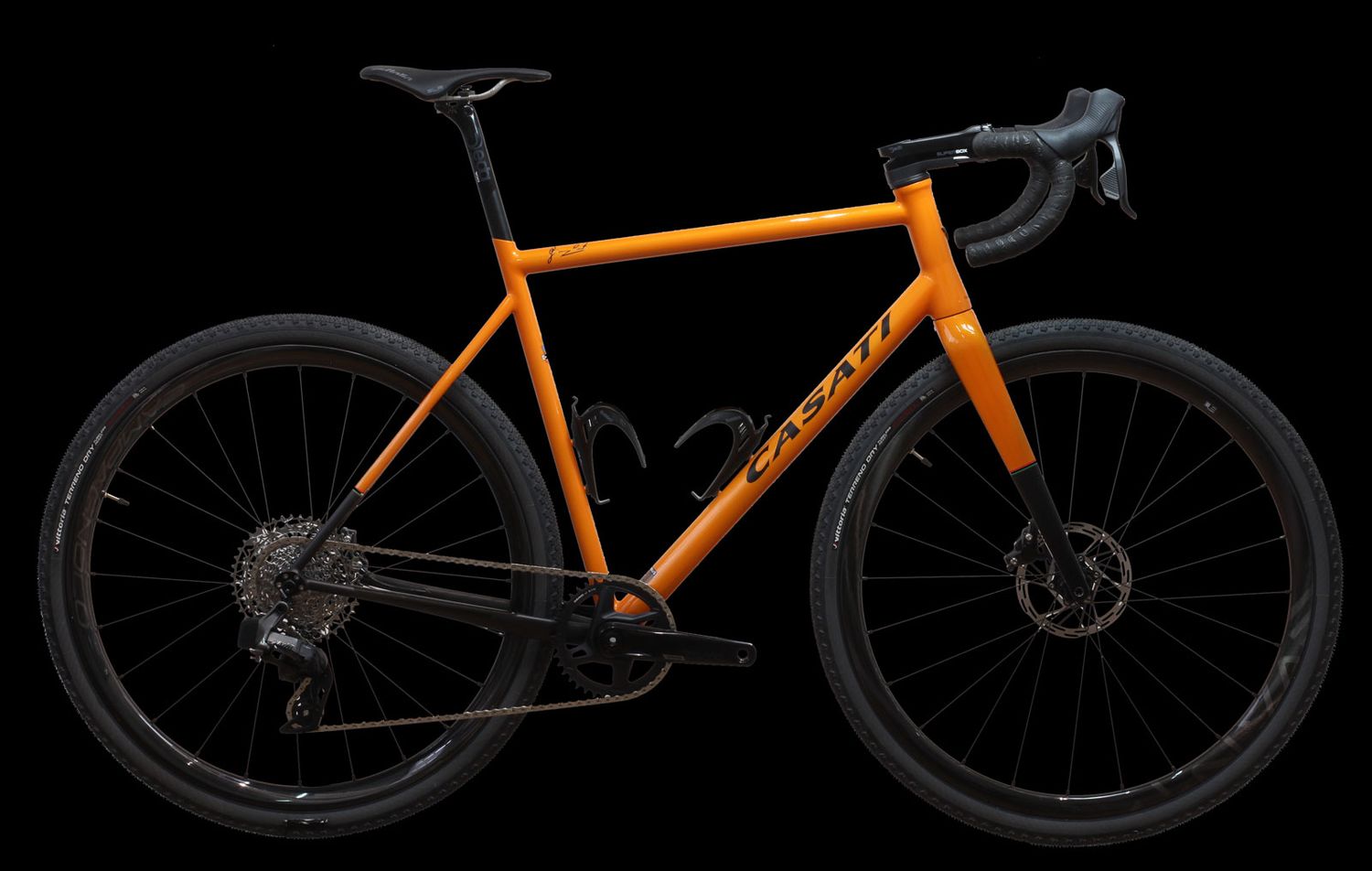

Casati Espresso Gravel.

Steel frame hand crafted by Massimo and Luca Casati. Assembled with Sram Rival 1 x 12s or 2 x 12s AXS electronic shifting.

frame design

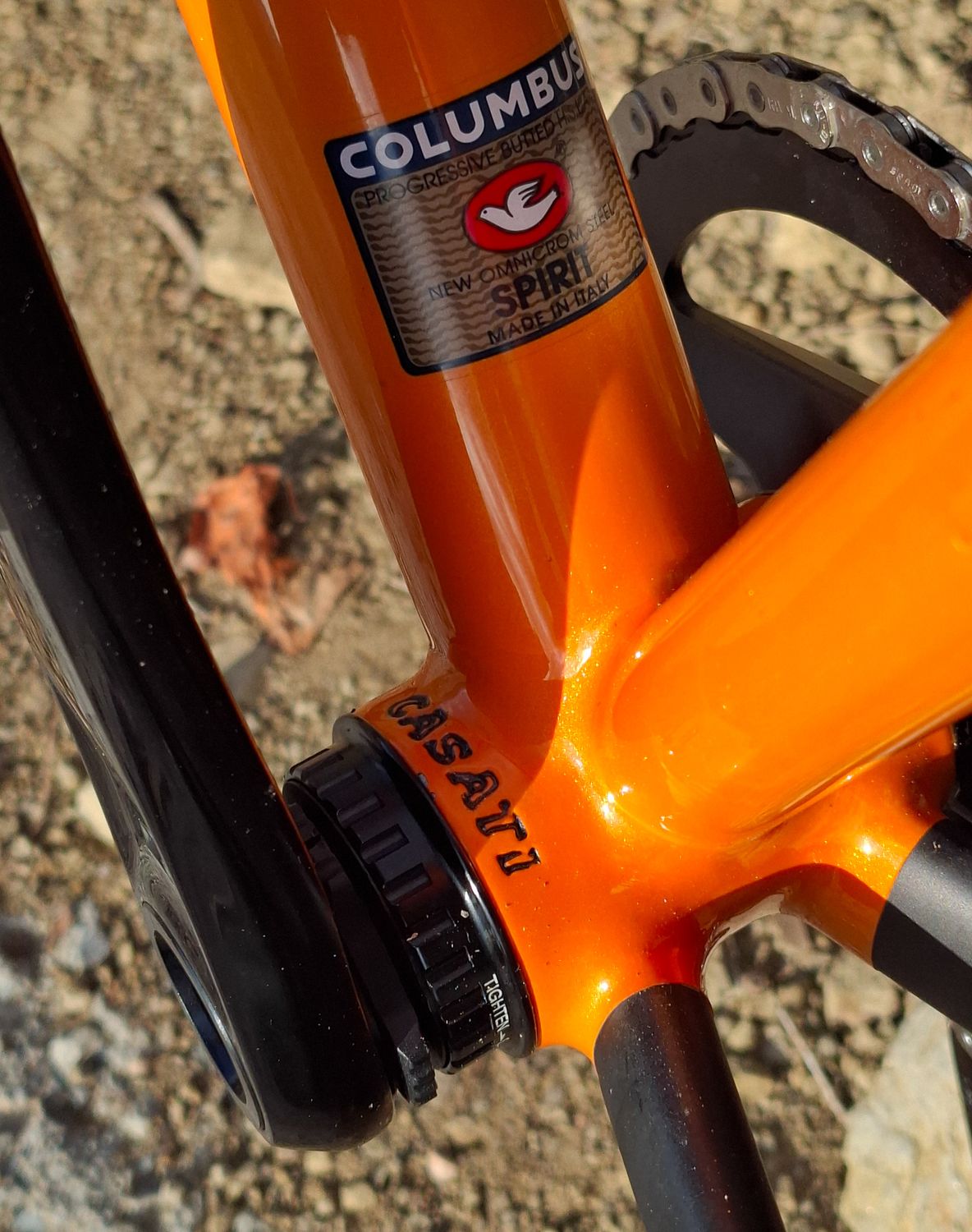

• tubeset Columbus Spirit / optional XCr Inox
• fork Columbus Gravel
• fillet brazed
• cataphoresis anti corrosion treatment

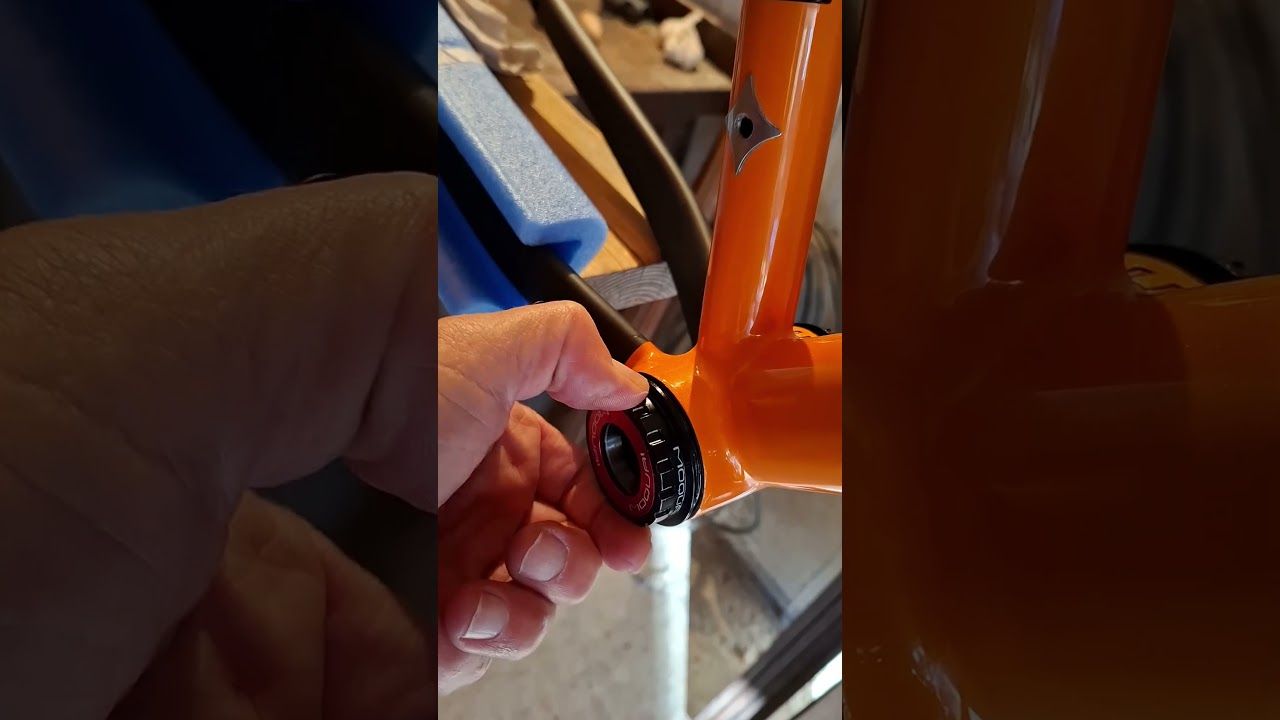

• bottom bracket T47 68mm
• headset bearings 52 mm - 52 mm
• thru axle front 100*12mm / rear 142*12mm

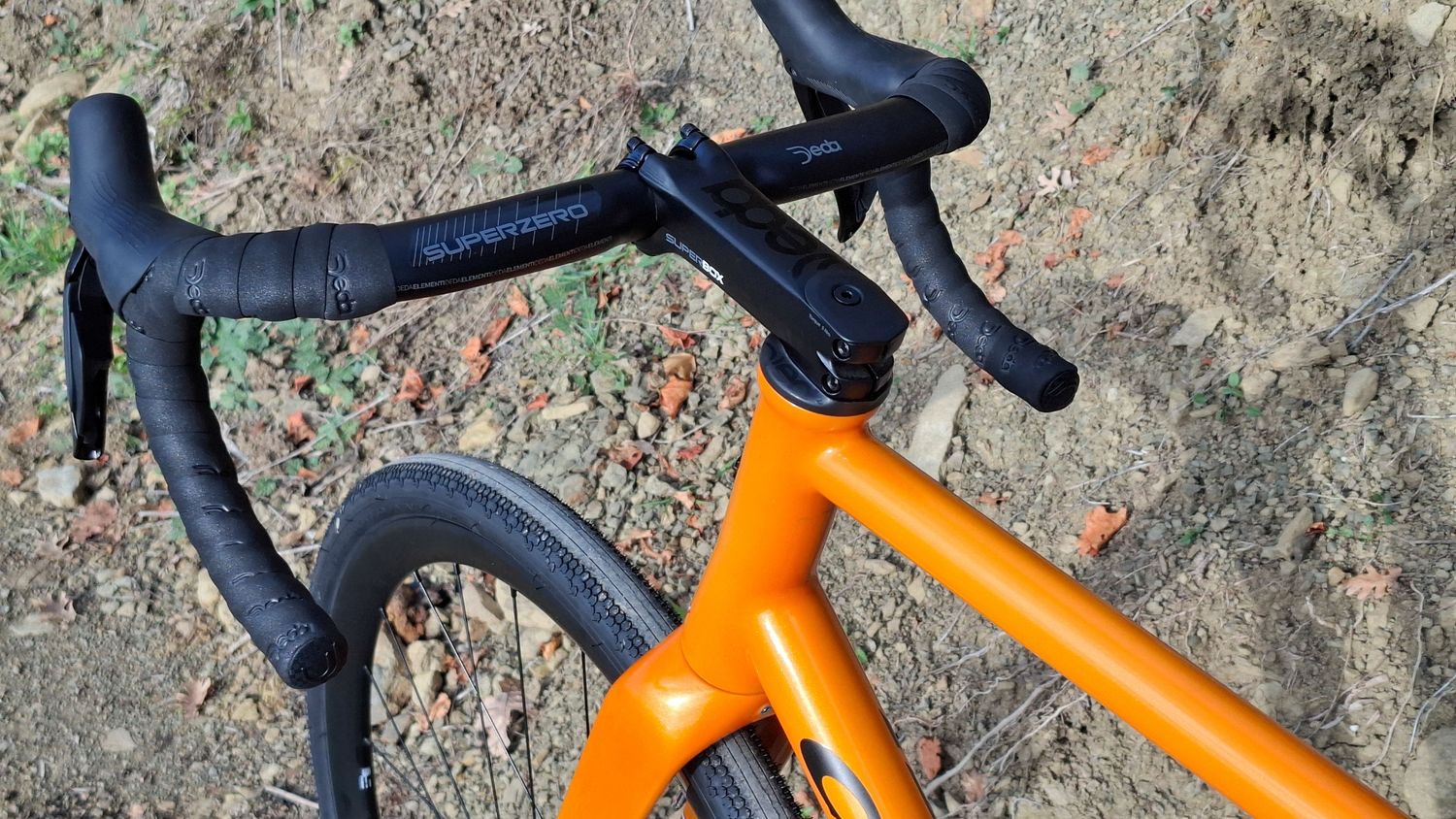

• cockpit internal cable routing disc brake line / optional external
• frame internal cable routing disc brake line
• compatible with chain rings 2 x .. / 1 x ...
• compatible with Di2, AXS / optional mechanical
• seatpost diameter 27.2 mm
• integrated Casati seatpost lock
• front derailleur braze on for chainring 2x / optional without
• UDH rear derailleur hanger

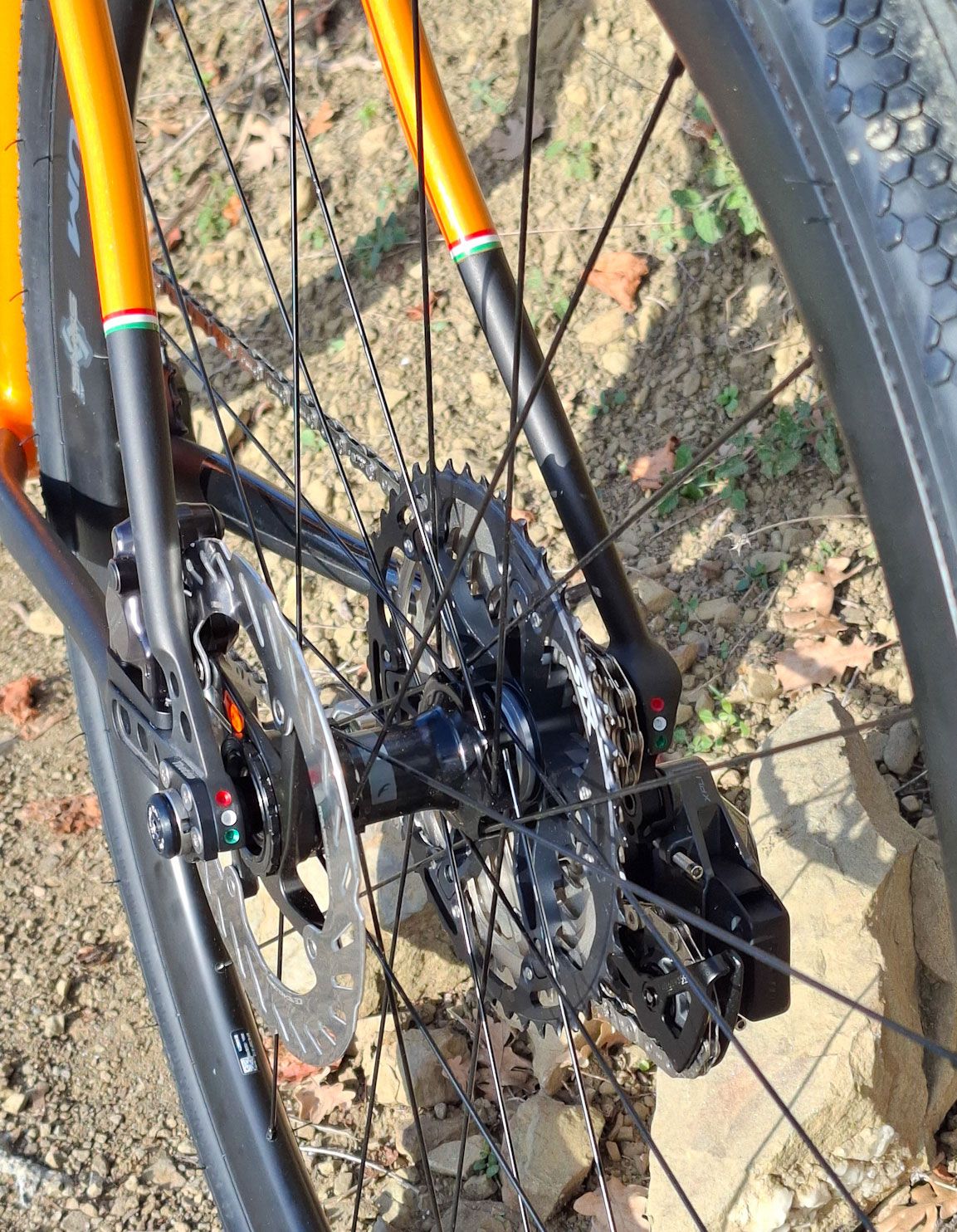

• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1780g (size 54cm), fork 480g
• frame size custom
• max tire size 45 mm

warranty

2 years Casati frame/fork
components manufacturer's warranty terms and conditions

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli Cinturato
• optional Schwalbe G One
• inner tube Pirelli Roadtube

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 setback 0 mm / 12 mm

photos do not always show actual details/components

size
