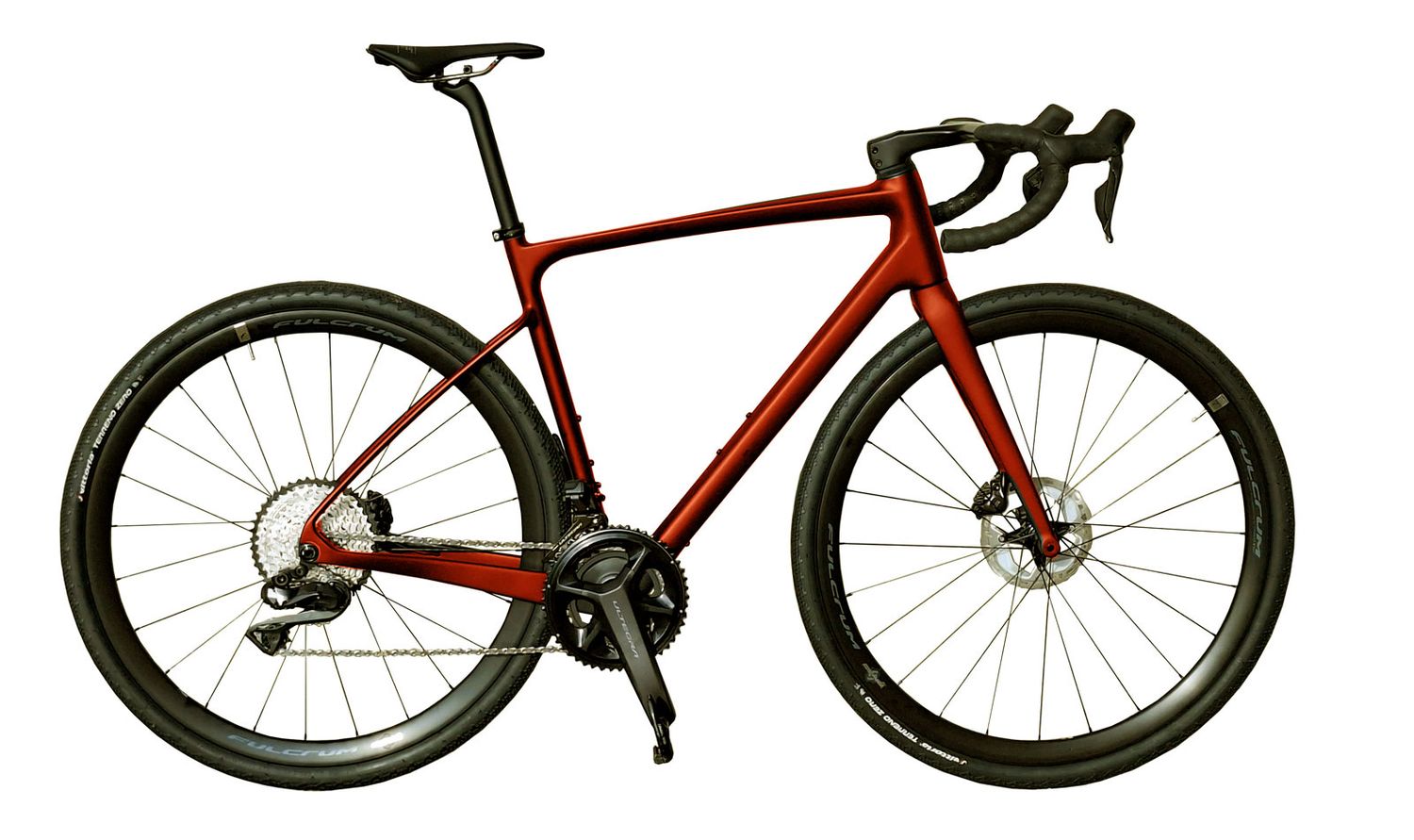

CAMINO REAL

With 28 mm tires a road bicycle, with 42 mm tires a gravel bicycle and with 35 mm tires allroad. The most versatile model from our quiet expertise series.

frame design

• Toray T1000
• Allroad and road bicycle, endurance geometry
• carbon weave UD
• bottom bracket T47 68mm
• headset bearings 52.0 mm - 52.0 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 2 x ..
• compatible with AXS, Di2
• seatpost 27.2 mm
• integrated seatpost lock
• front derailleur mount stationary
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1020g (size 54cm), fork 435g
• frame size 480 / 510 / 540 / 570 / 600
• max tire size 28 mm - 42 mm

warranty

2 Years

color design

• pearl white finish gloss
• pearl red finish gloss
• black carbon finish matt
• dark violett finish gloss

groupset

• Camino Real Ultegra
  assembled with Shimano Ultegra Di2 12s
• Camino Real 105
  assembled with Shimano 105 Di2 12s
• Camino Real Force
  assembled with Sram Force AXS 12s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli Zero Road 28 mm (optional 30 mm, 32 mm)
• inner tube Pirelli Smartube
  feels like tubeless, but no mess when changing tires on road


saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Demapè flat shaped, frame specific setback 12 mm

handlebar

• cbTec one piece stem / handlebar

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry
