BACKROAD Gravel

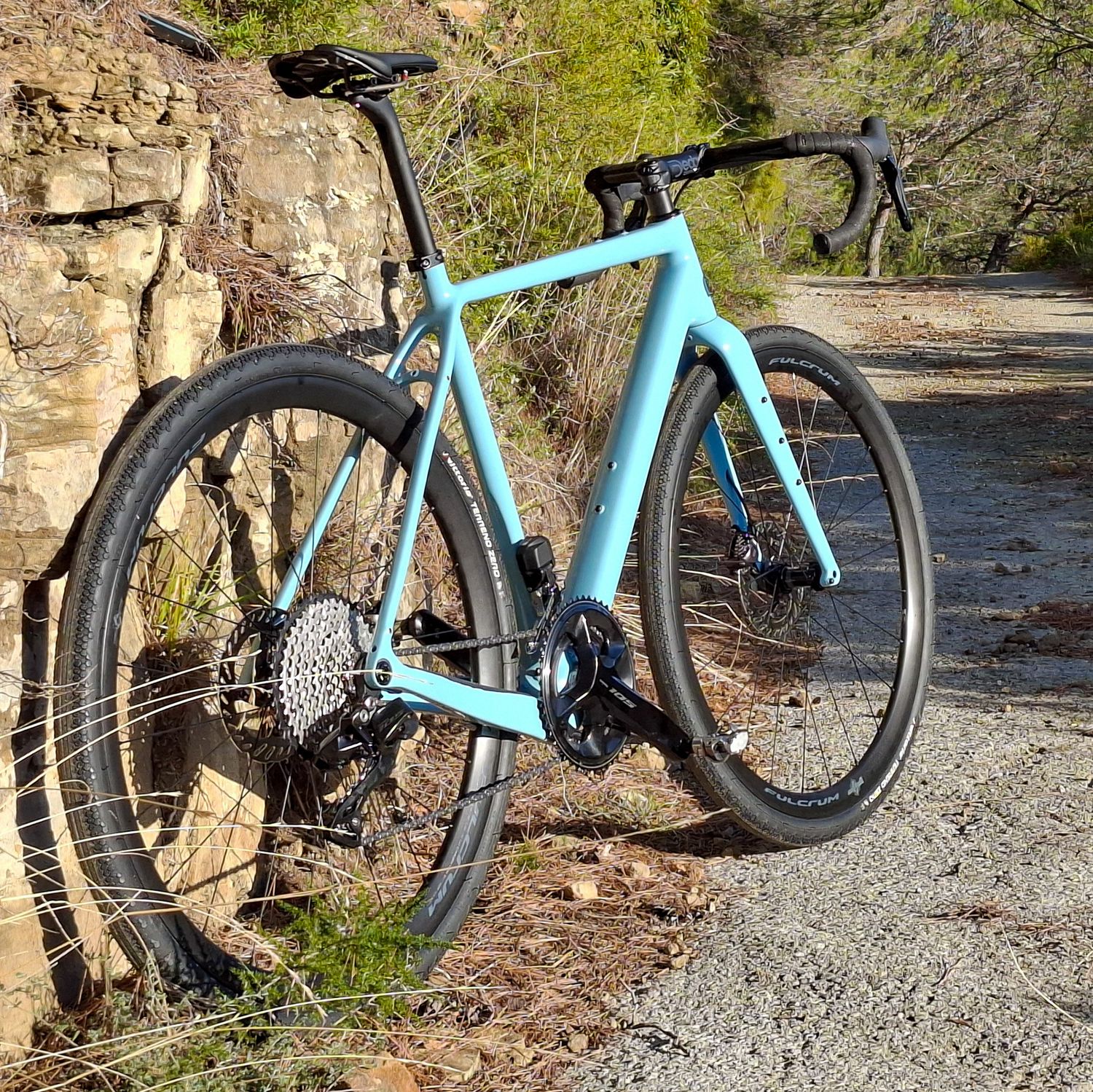

Gravel bicycle BACKROAD assembled with Shimano 105 Di2.

Gravel Bicycle Companion.

Semi-integrated brake and gear cables (for mechanical groupsets) for easy maintenance. The gear cable housing can run through the entire frame or be mounted with a cable stop in the frame for easy derailleur adjustment. Any standard 27.2 mm seatpost can be mounted, with any setback. BSA threaded bottom bracket. Everything is easy, just pedal.

frame design

• carbon T800 Toray
• gravel and road
• carbon weave UD
• bottom bracket T47 86.5mm
• headset bearings 42 mm - 52 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 1x12, 1x13 / 2x12
• compatible with mechanical, Di2, AXS
• seatpost diameter 27.2mm
• seatpost collar
• front derailleur mount removable for 1x12
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 1240g (size 54cm), fork 540g
• max tire size 700*45C / 27.5*2.1"

threaded bosses

• bag top tube
• bag lower side down tube
• 2 bottel cages / down tube / seat tube
• extra bottle cage lower side down tube
• 3 threadings both sides fork
• rear stays for mud guards and rack compatible

warranty

2 years frame / fork
components manufacturer's warranty terms and conditions

groupset

• Backroad grx 825
  assembled with Shimano GRX 825 / 2x12s / Di2
• Backroad grx 827
  assembled with Shimano GRX 827 / 1x12s / Di2
• Backroad XPLR
  assembled with Sram Rival XPLR 1x13s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Vittoira Terreno Zero 38, 40 or 45 mm
• inner tube Pirelli

saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Deda Zero 100 0mm or 12 mm
• optional cbTec carbon 12 mm

cockpit

sten Deda 02
handlebar Deda Zero 100

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

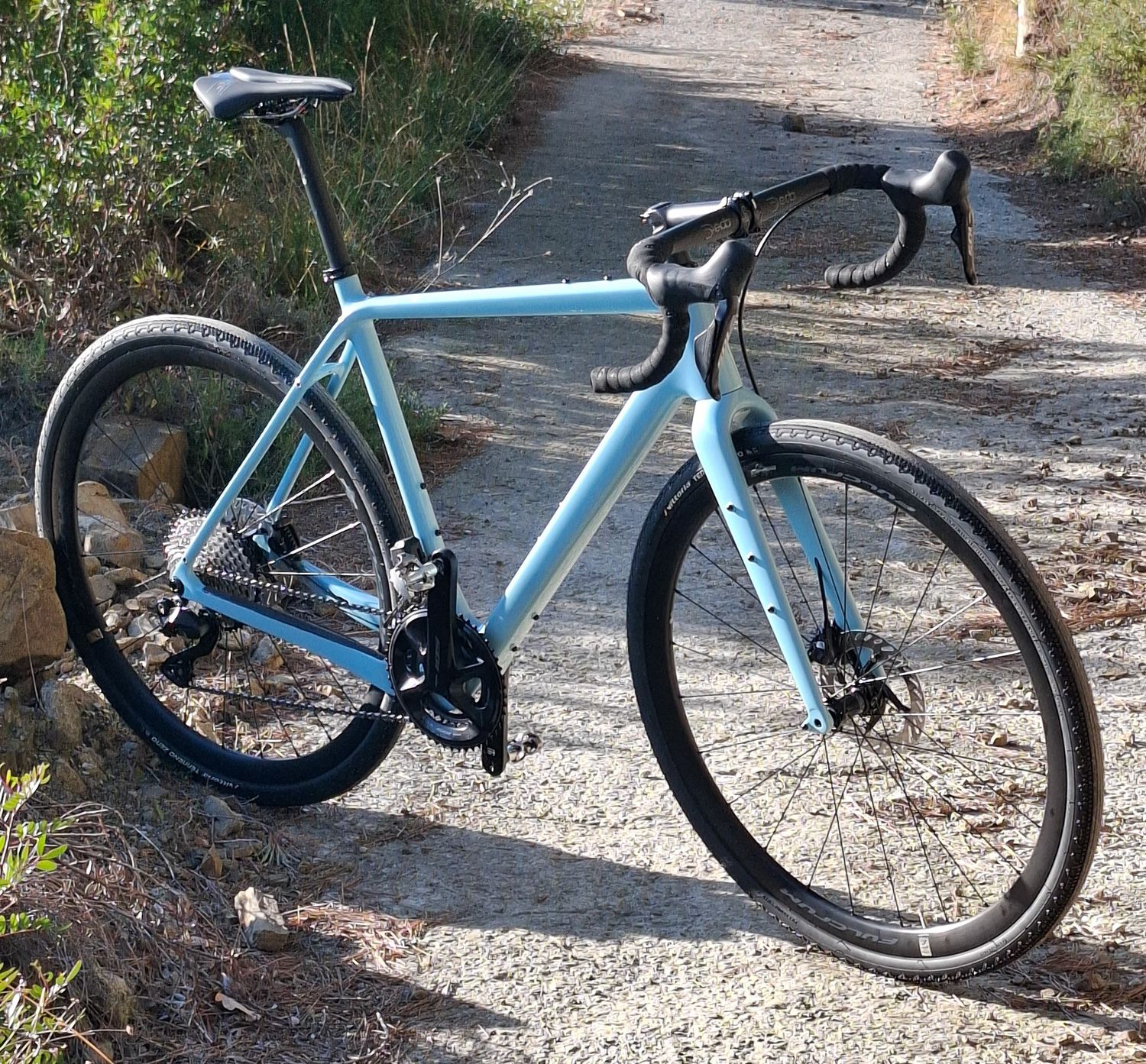

Gravel bicycle BACKROAD assembled with Shimano GRX 822/610 mechanical.

brake lines external for easy cockpit maintenance, cable layout has a clean look

stiff shifter cable housing with cable stopper inside frame, external end Shimano flexible 12 s cable housing end

BACKROAD Gravel bicycle black carbon - external brake line and gear cable

Service friendly: Cockpit external brake cable, still looks very clean. Frame and fork integrated brake cable. Mechanical groupset uses same cable entrance for rear gear cable. Cockpit gear cable external, works much better with mechanical group setup.
