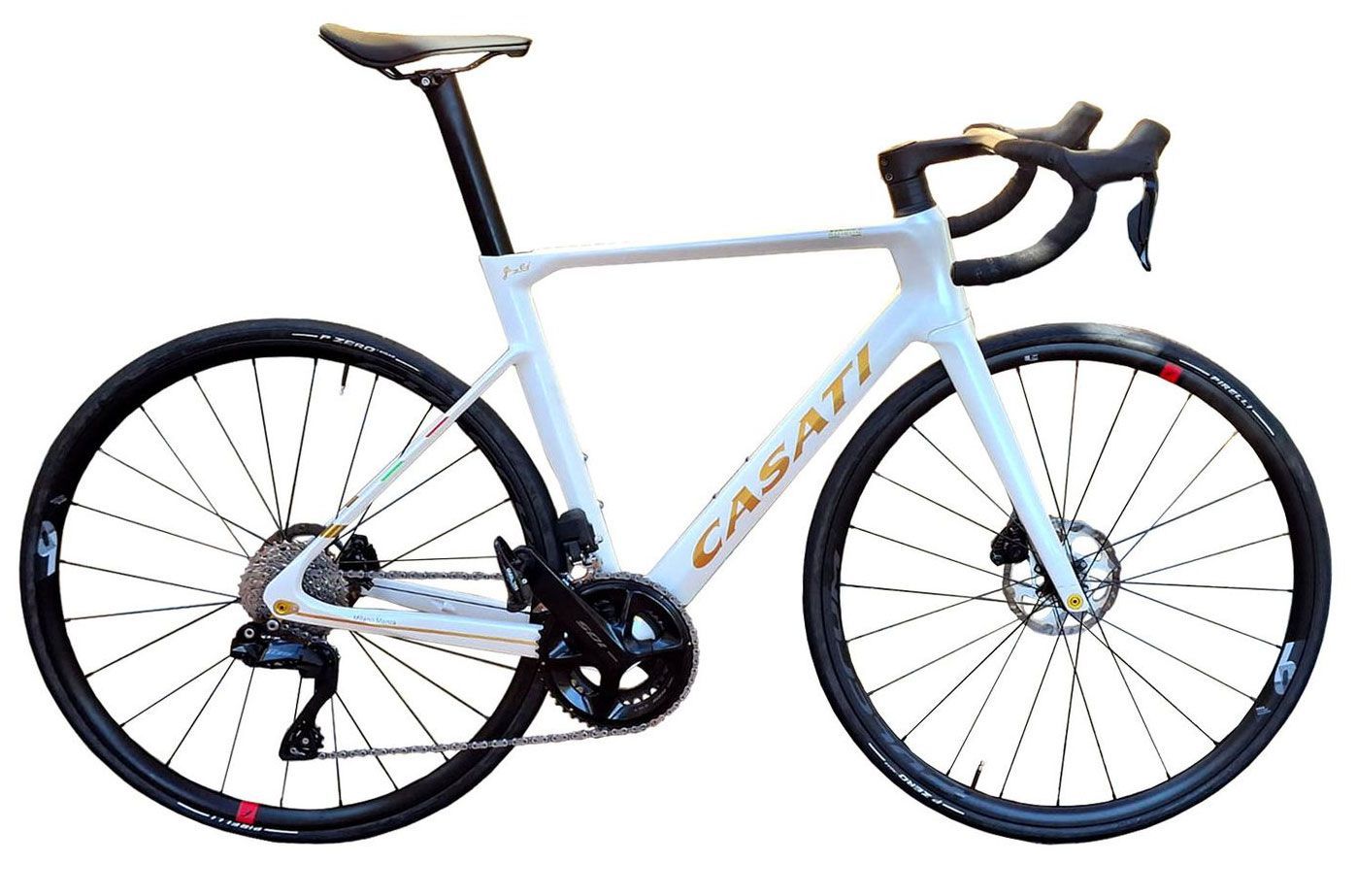

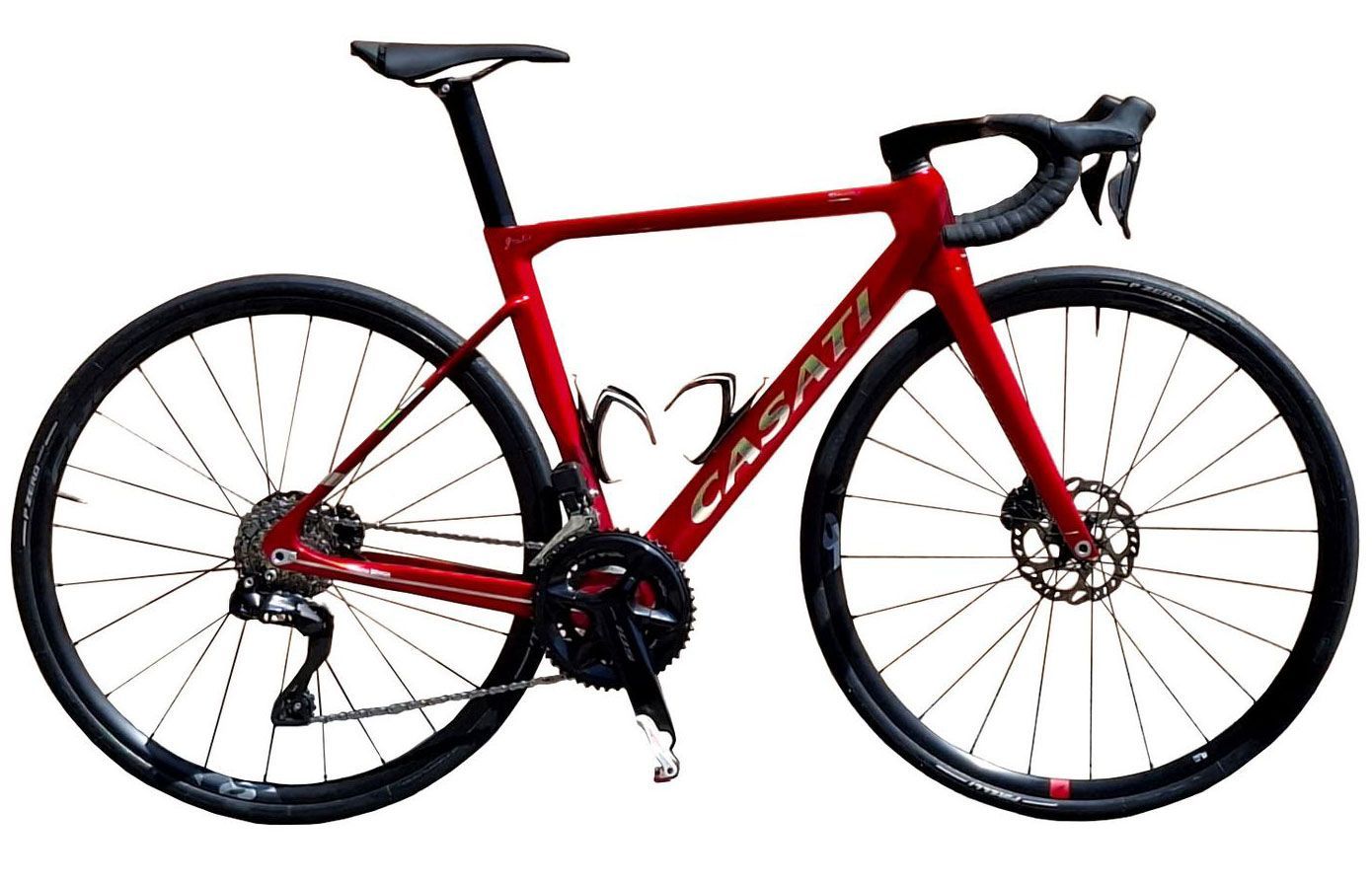

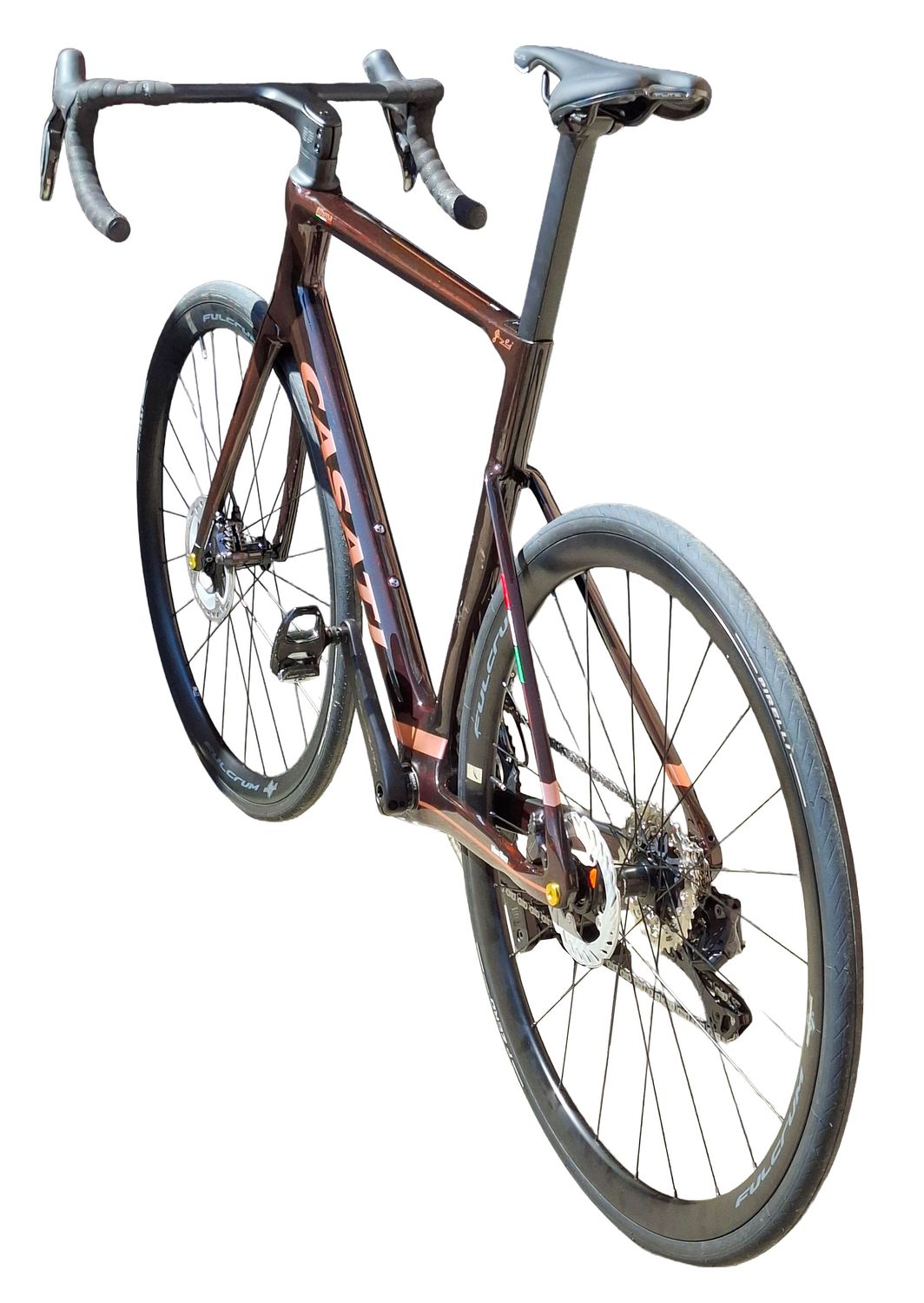

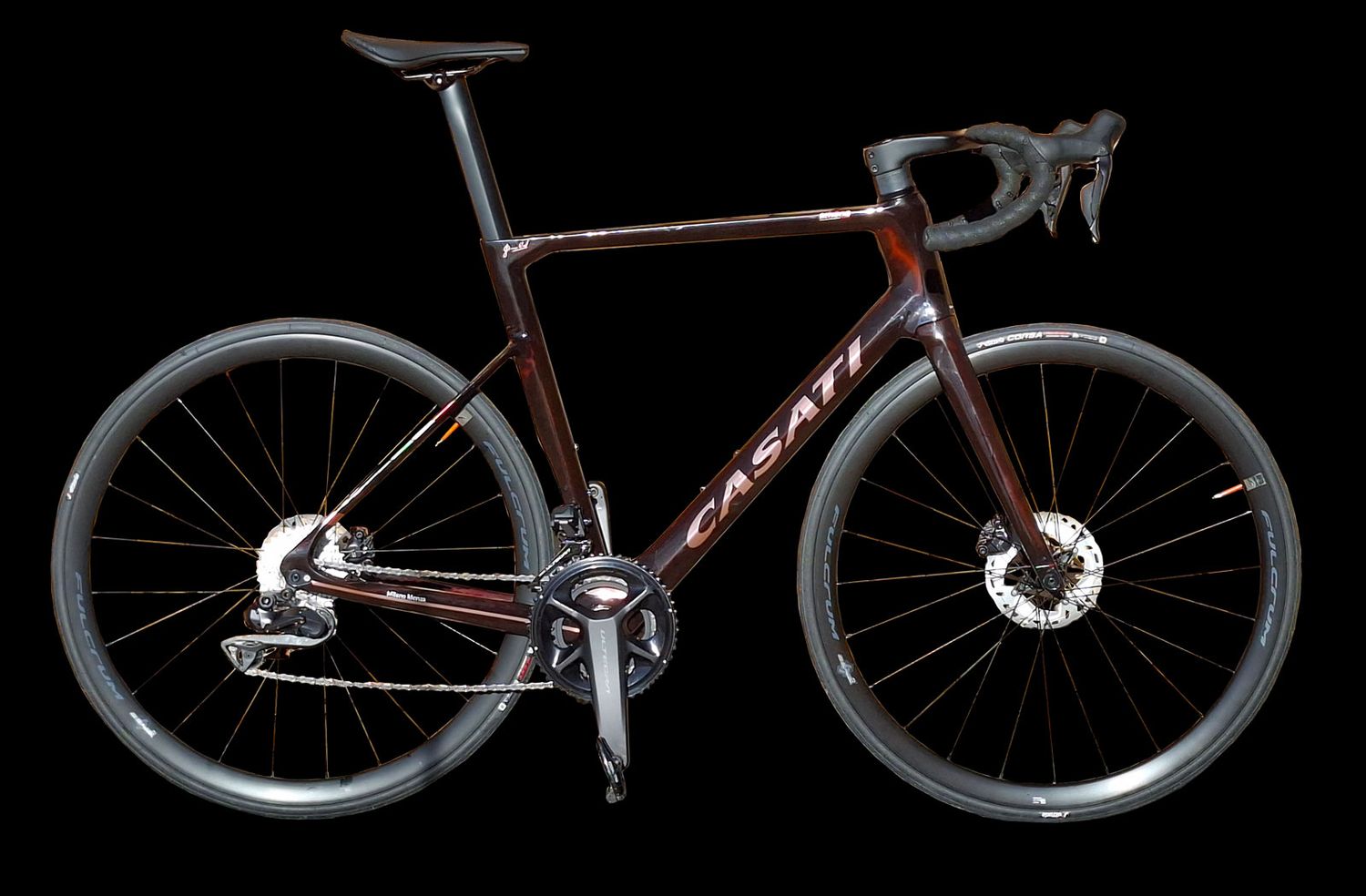

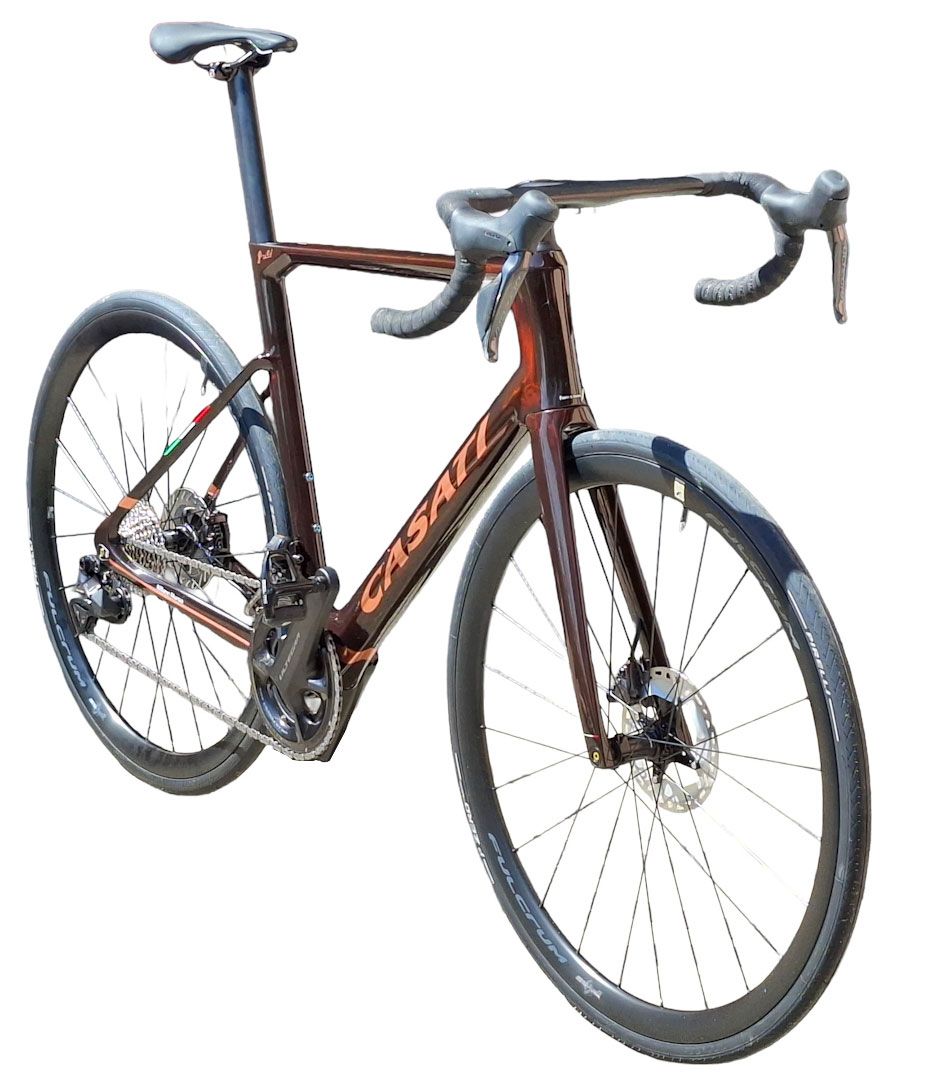

ATHENA

Product Details

ATHENA

High-modulus Toray carbon fiber layup. Combined with the experience of crafted handbuilt elements and design from a Italian frame builder. The result: A frame stiff for fun riding and cornering. Light weight for climbing. Modern look for the delight of owning a special bicycle. For a reasonable price. That is monocoque technique at its best. The build starts with expert quality control of the frame and is proven with 3 Years European warranty. Assembling one by one, the T47 threaded bottom bracket ceramic bearings (as standard), Endurance Inox headset bearings for long service intervals, choice of waxed or lubricated chain and of course the finest groupsets from Shimano or Sram and components from Fulcrum, Pirelli, Deda and Prologo. We find out with you the best frame size assembled with the right stem length, handlebar width, crank length and cassette and chainring choice. When you ride and service the bicycle you can feel it was built with love, not with speed for optimized company revenue.For any kind of service needed after you have your bicycle, we are as near as DPD logistics. Keep the Casati bicycle box and we organize the transport from your home to our workshop and back to you.

frame design

Toray T800/T1000
carbon weave UD

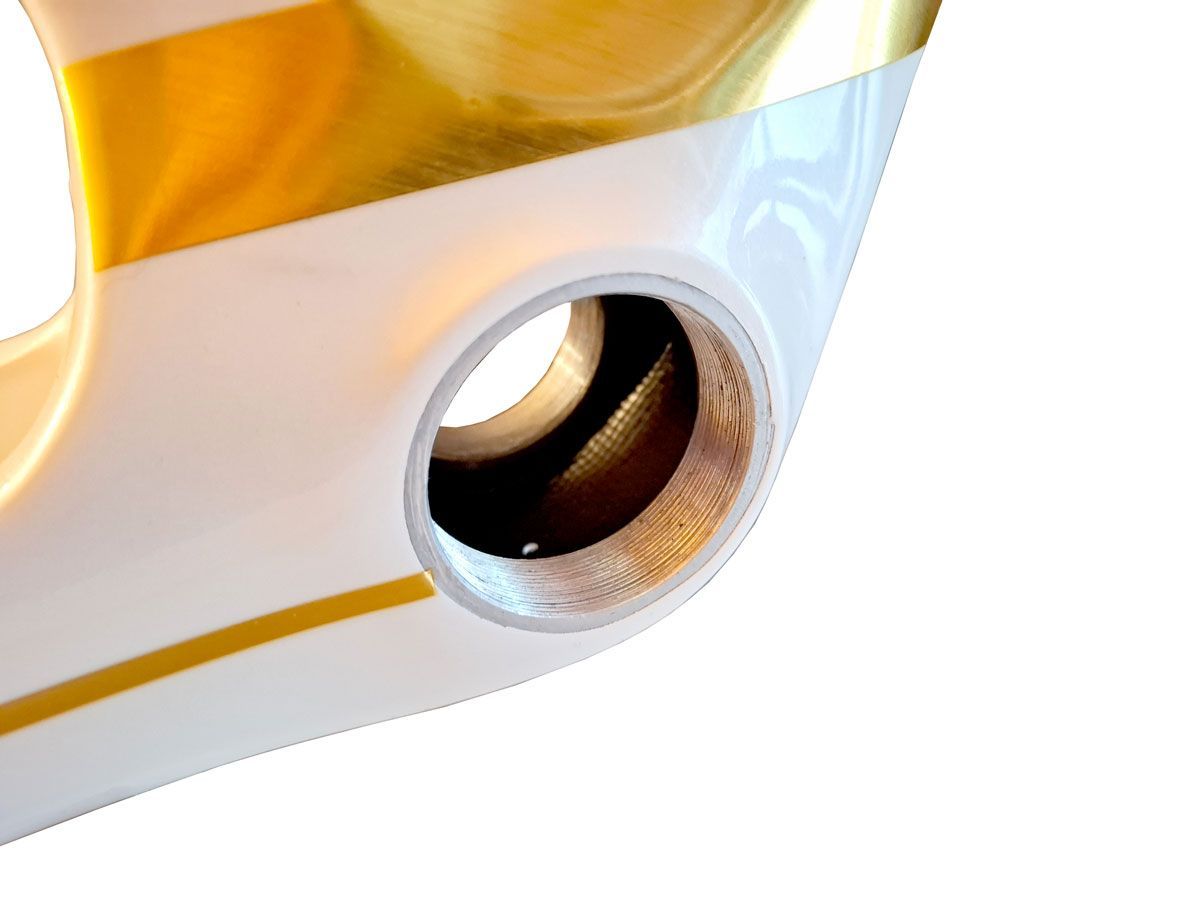

bottom bracket Demapè ceramic T47 68mm
headset bearings 52 mm - 52 mm / 7.5mm

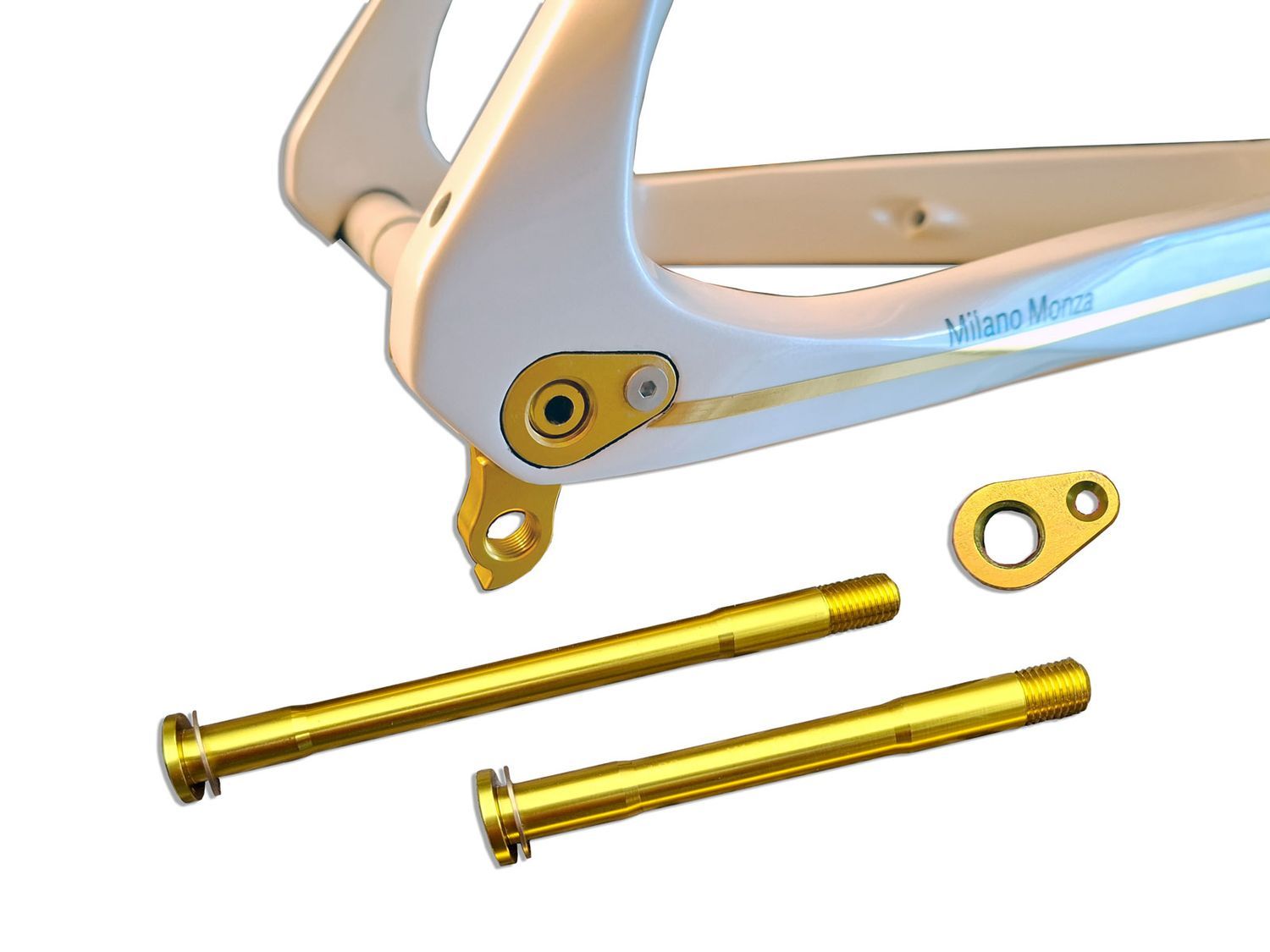

thru axle front 100*12mm / rear 142*12mm
cockpit internal cable routing disc brake line
frame internal cable routing disc brake line
compatible with chain rings 2 x ..
compatible with Di2, AXS
seatpost flat shaped, frame specific
integrated seatpost lock
front derailleur mount removable for 1x12
disc rotor size rear 140 mm or 160 mm / front 160 mm
weight frame 890g (size 54cm), fork 430g
frame size 425 / 460 / 490 / 515 / 540
max tire size 32 mm

warranty

3 Years

color design

Pearl White finish gloss
Soul Red finish gloss
Carbon Umber finish gloss

groupset

Athena Ultegra
assembled with Shimano Ultegra Di2 12s
Athena 105
assembled with Shimano 105 Di2 12s
Athena Force
assembled with Sram Force AXS 12s

chain

lubricated
optional waxed
easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

Fulcrum Soniq AL 23

tires

Pirelli Zero Road 28 mm (optional 30 mm, 32 mm)
inner tube Pirelli Smartube
feels like tubeless, but no mess when changing tires on road

saddle

Prologo Zero
Prologo Kappa

seatpost

Demapè flat shaped, frame specific setback 12 mm

handlebar

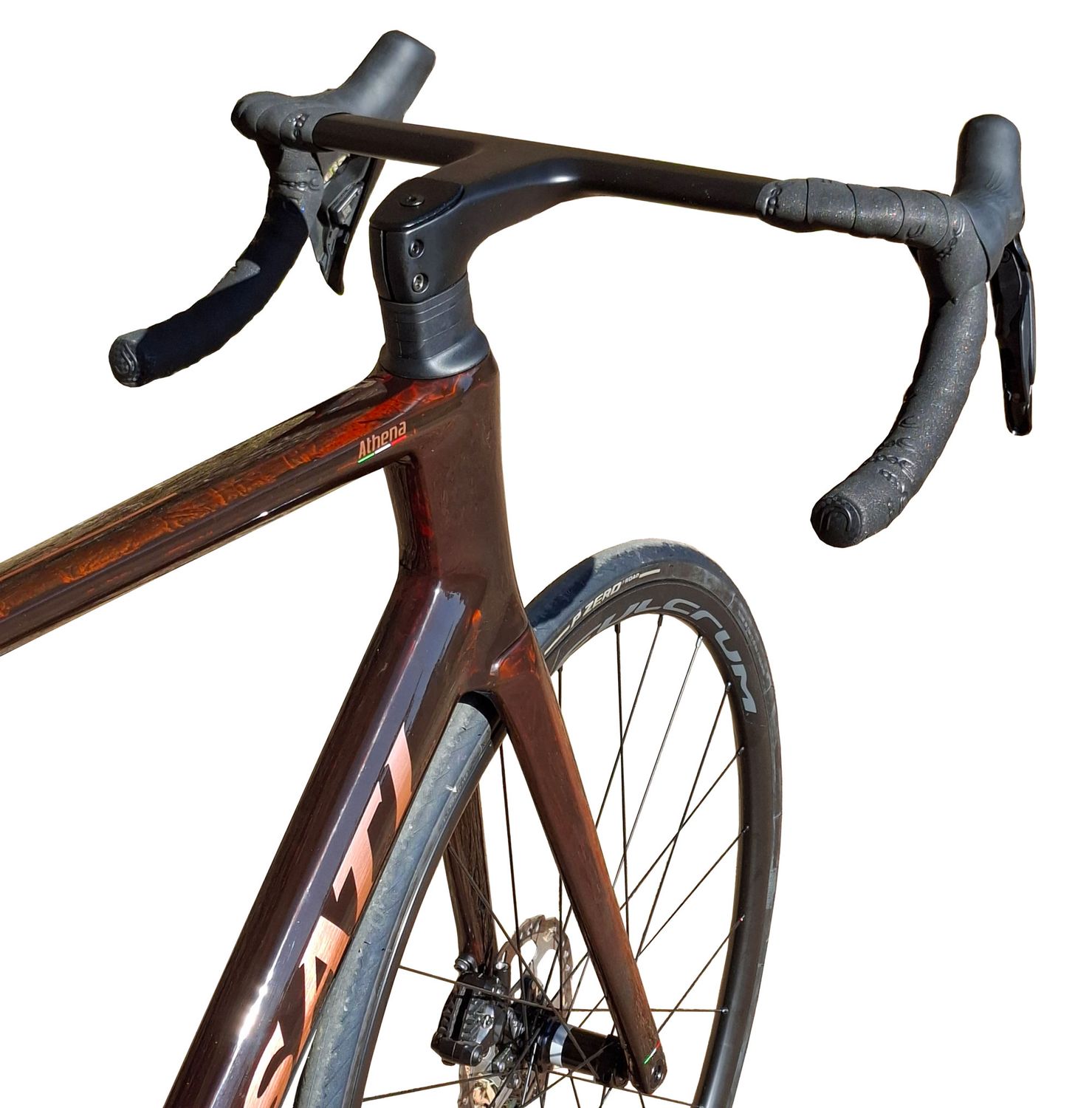

cbTec one piece stem / handlebar
optional Deda Superbox / Superzero

headset bearings

Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry

	s	m	l	xl
st	460	490	515	540
ht	109	123	142	169
stack	507	528	548	572
reach	360	371	373	387
top tube	506	523	531	548
