ATHENA

Road bicycle with lovely details. Available in pearl red, pearl white and black carbon. Dropouts and thru axle in matching decorative color. Lots of Casati decals, a 100 year heritage. Head tube badge and shiny foil Casati lettering on down tube. Ceramic bottom bracket. Integrated carbon stem handlebar combination 12 different size variations.

frame design

• Toray T800/T1000
• road bicycle optimized aero
• carbon weave UD
• bottom bracket Demapè ceramic T47 68mm
• headset bearings 52 mm - 52 mm / 7.5mm
• thru axle front 100*12mm / rear 142*12mm
• cockpit internal cable routing disc brake line
• frame internal cable routing disc brake line
• compatible with chain rings 2 x ..
• compatible with Di2, AXS
• seatpost flat shaped, frame specific
• integrated seatpost lock
• front derailleur mount removable for 1x12
• disc rotor size rear 140 mm or 160 mm / front 160 mm
• weight frame 890g (size 54cm), fork 430g
• frame size 425 / 460 / 490 / 515 / 540
• max tire size 32 mm

warranty

2 Years

color design

• pearl white finish gloss
• pearl red finish gloss
• black carbon finish gloss

groupset

• Athena Ultegra
  assembled with Shimano Ultegra Di2 12s
• Athena 105
  assembled with Shimano 105 Di2 12s
• Athena Force
  assembled with Sram Force AXS 12s

chain

• lubricated
• optional waxed
  easier cleaning. cleaner working when having a mechanical on road, no oil pollution

wheelset

• Fulcrum Soniq AL 23

tires

• Pirelli Zero Road 28 mm (optional 30 mm, 32 mm)
• inner tube Pirelli Smartube
  feels like tubeless, but no mess when changing tires on road


saddle

• Prologo Zero
• Prologo Kappa

seatpost

• Demapè flat shaped, frame specific setback 12 mm

handlebar

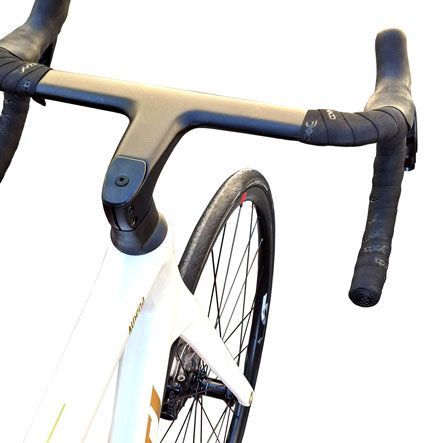

• cbTec one piece stem / handlebar

headset bearings

• steel
• optional Enduro inox

components custom setup possible

groupset, tires, saddle, 2 piece Deda stem and handlebar

frame sizes / geometry
