Casati AERO

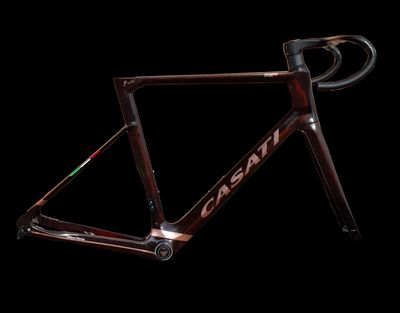

frame

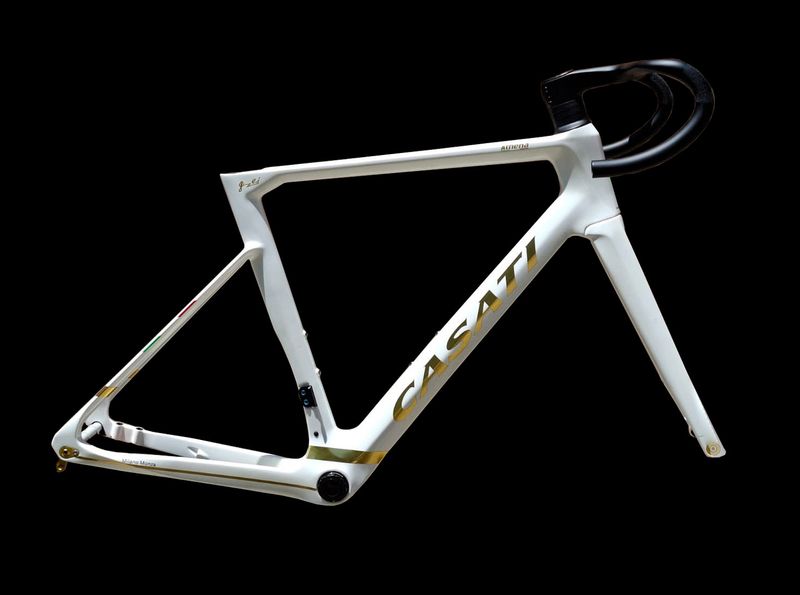

Casati AERO carbon frame.
carbon weave: UD
brake system: hydraulic disc brakes
brake cable routing: internal, handlebar, stem, headset, frame, fork
disc rotor size: 140mm or 160mm
bottom bracket : T47 86mm
headset: 1-1/2 to 1-1/2
thru axle: front 100*12mm, rear 142*12mm
seatpost: frame specific
front derailleur: stationary / 1x12s, 2x12s
gear shifting: Di2 or wireless
weight:
frame 920 g (size 54cm)
fork 460g
seatpost 211g
max tire size: 700*32C
warranty: 2 years

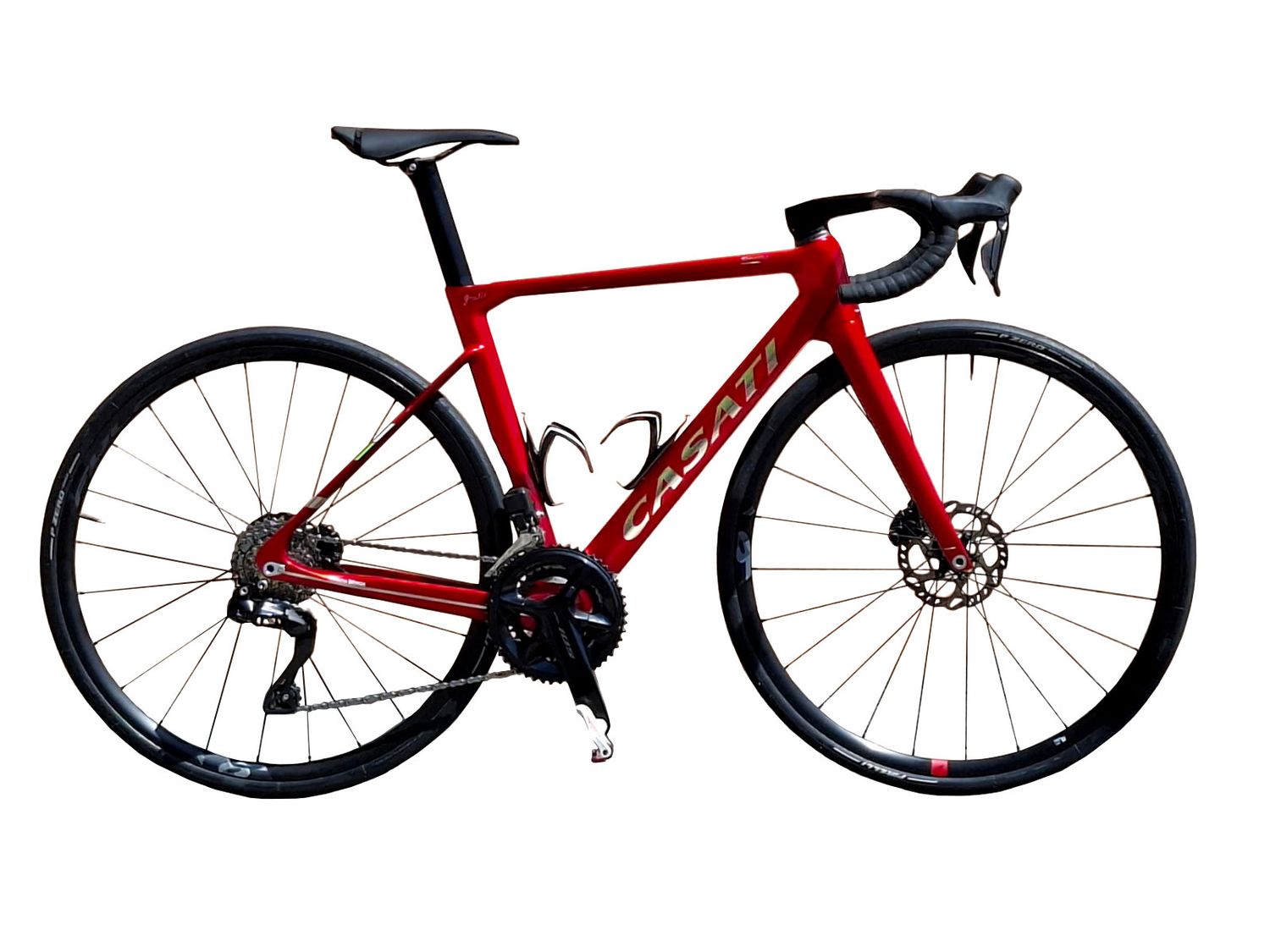

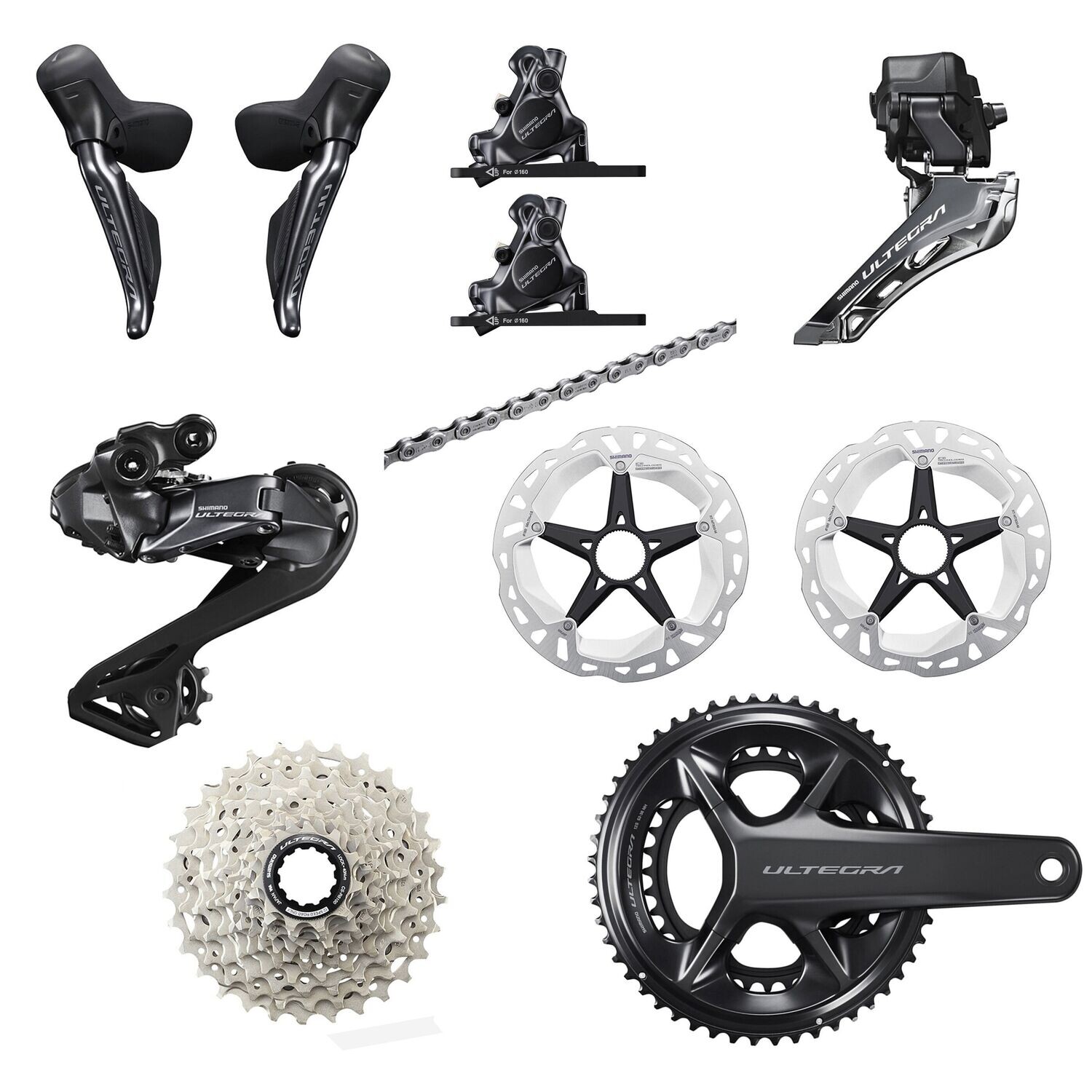

bicycle Ultegra Di2

Shimano 105 Di2
optional: Ultegra Di2

crankset 165, 170, 172.5, 175
34-50
11-30 / 11-34

disc brakes

rear 140 mm (optional 160 mm)
front 160 m

cermic bottom bracket

ceramic Demape bottom bracket T47 threaded

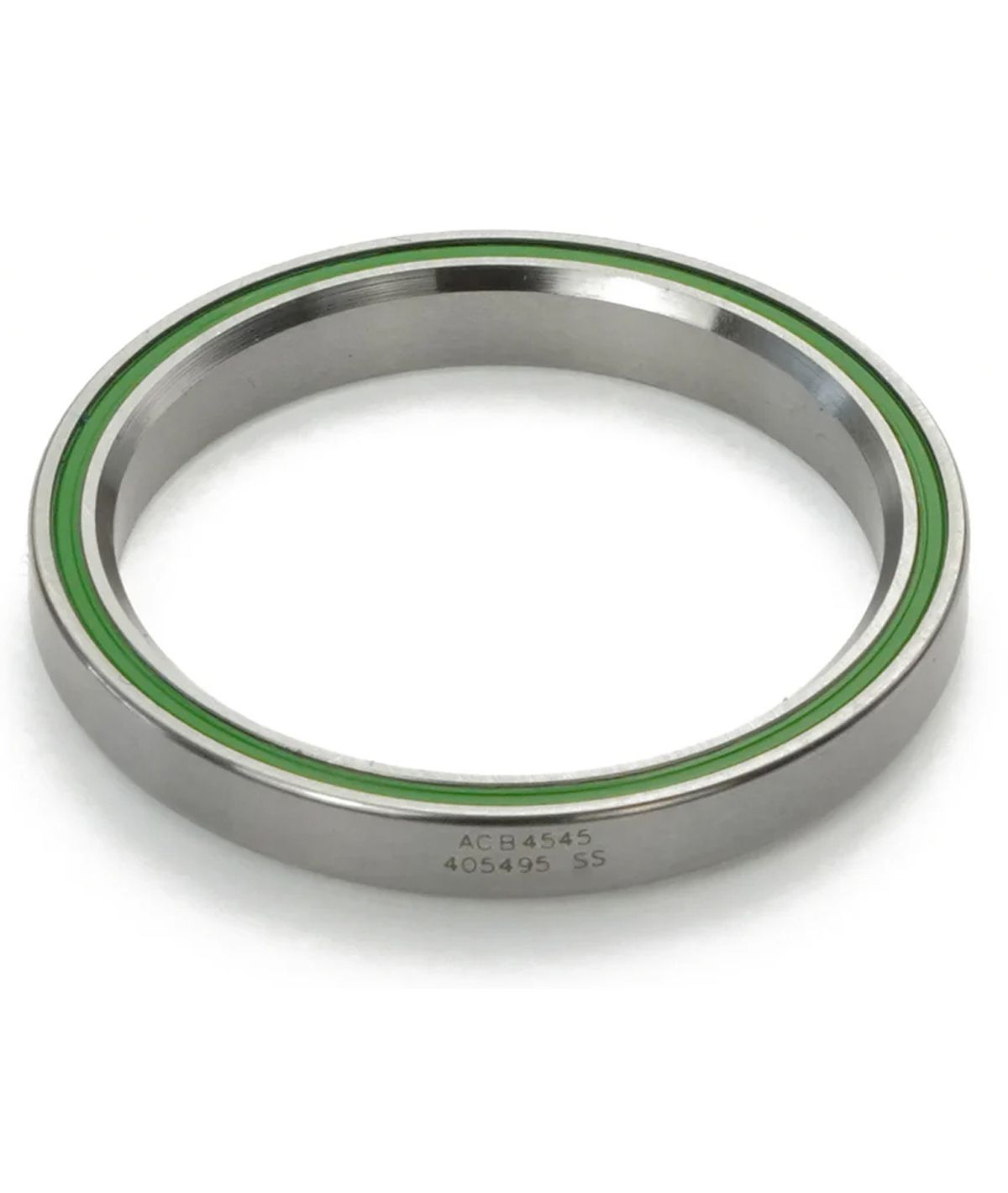

stainless headset bearings

Enduro Inox 440C stainless steel balls and races for superior corrosion protection.

wheel setup

Comfortable like tubeless, but no mess when changing tires on the road.

tires Pirelli P Zero Road 28 mm

inner tubes Pirelli Smartube

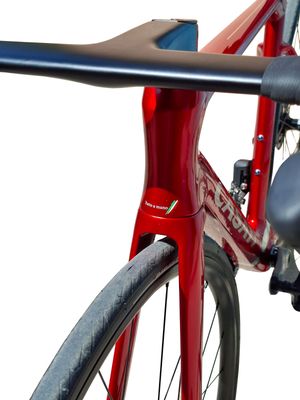

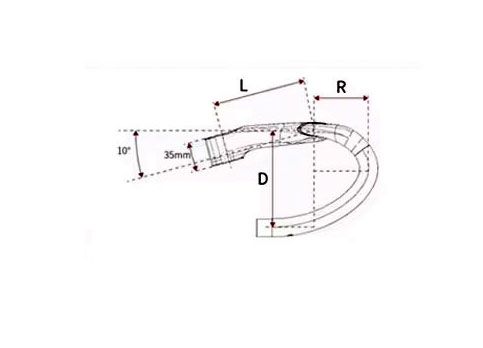

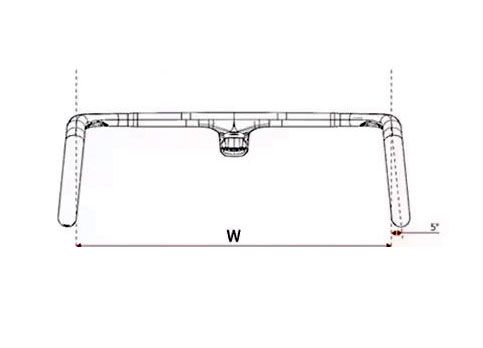

cockpit

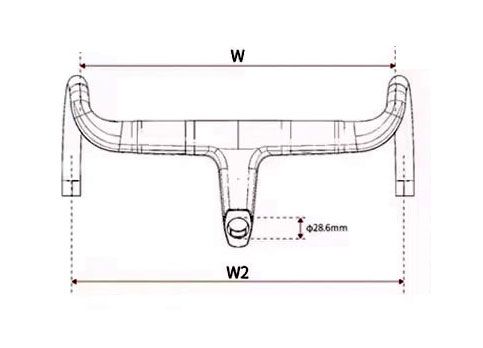

stem handlebar available 6 sizes

W	width c/c			400	420	440
W2	width c/c			420	440	460
L	length c/c	80	90	100	110	120
R	reach			127	127	127
D	drop			77	77	77

sizes

size	stack	reach	ST	TT	HT
425	502	351	425	500	97
460	507	360	467	506	109
490	528	371	488	523	123
515	548	373	512	531	142
540	572	387	537	558	169

ST seat tube
TT top tube
HT head tube
